Disc brake rear Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	N 01024124	Bolt, hex. hd. with shoulder, self-locking M8X22	999	Next
1	211611483	Dust cap	999	Next
1	1K0615273C	Breather valve	999	Next
1	5N0615403	Brake caliper housing with servomotor	999	Next
1	5N0615404	Brake caliper housing with servomotor	999	Next
1		No replacement part	999	Next
1	1Q0615425E	Brake carrier with pad retaining pin	999	Next
1	3AA615425	Brake carrier with pad retaining pin	999	Next
1	3AA615425A	Brake carrier with pad retaining pin	999	Next
1	3AA615425B	Brake carrier with pad retaining pin	999	Next
1	1Q0615426B	Brake carrier with pad retaining pin	999	Next
1	3AA615426	Brake carrier with pad retaining pin	999	Next
1	3AA615426A	Brake carrier with pad retaining pin discont./new add.+fulu calc.	999	Next
1	3AA615426B	Brake carrier with pad retaining pin	999	Next
1	3C0998281A	Servomotor for brake calliper housing with assembly parts	999	Next
1	4E0615137	O-ring	999	Next
1	N 10285506	Socket head bolt with inner hex round head M6X12	999	Next
1	N 91168901	Socket head bolt with inner multipoint head (kombi) M12X1,5X65	999	Next
1	1K0615601AD	Brake disc 282X12MM 5/112	999	Next
1	JZW615601F	Brake disc 'eco' economy	999	Next
1	5N0615611C	Cover plate for brake disc	999	Next
1	5N0615611D	Cover plate for brake disc	999	Next
1	5N0615612C	Cover plate for brake disc	999	Next
1	5N0615612D	Cover plate for brake disc	999	Next
1	WHT005227	Oval hexagon socket head bolt M6X12	999	Next
1	N 10648301	Hex socket countersunk bolt M6X16	999	Next
1	3C0698451F	1 set of brake pads for disk brake	999	Next
1	3AA698451	1 set of brake pads for disk brake	999	Next
1	JZW698451G	1 set of brake pads for disk brake 'eco' economy	999	Next
1	JZW698451E	1 set of brake pads for disk brake 'eco' economy (starting date for economy ??) economy	999	Next
1	1K0615231B	Intermediate plate	999	Next
1	8K0698470A	1 set protective sleeves for guide pins	999	Next
1	G 000650	Solid lubricant paste 100G	999	Next
1	G 052150A2	Lithium lubricating grease 180G	999	Next
1	1J0973722A	Flat contact housing with contact locking mechanism	999	Next

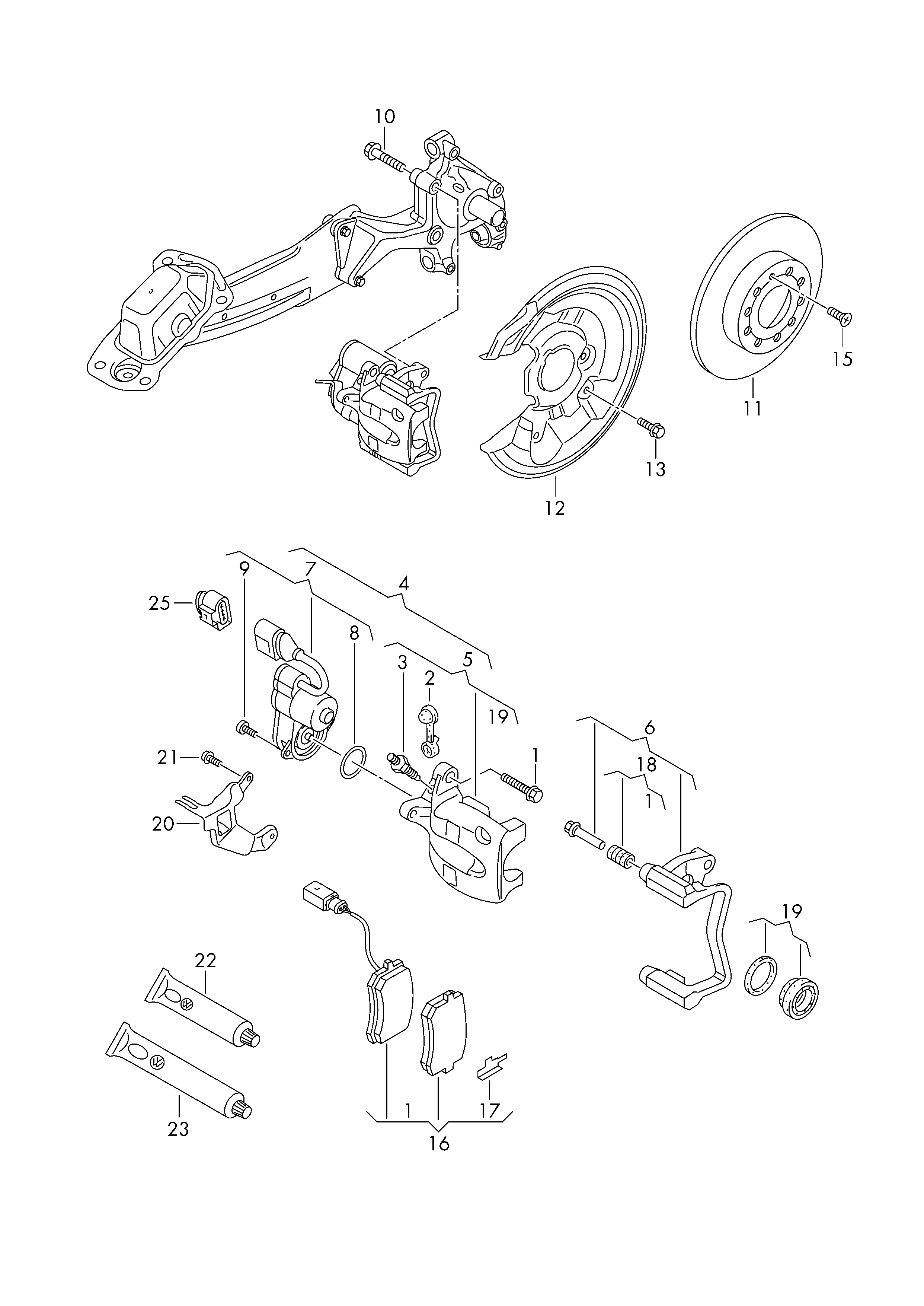

Scheme Disc brake rear Volkswagen Tiguan 2010-2017 EUR
