Disc brake rear PR-2EA Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	WHT003250	Bolt, hex. hd. with shoulder, self-locking M8X22-MK	999	Next
2	211611483	Dust cap	999	Next
3	1K0615273C	Breather valve	999	Next
4	3C0615403C	Brake caliper housing with servomotor	999	Next
4	3C0615404C	Brake caliper housing with servomotor	999	Next
6	1Q0615425D	Brake carrier with pad retaining pin	999	Next
6	1Q0615426A	Brake carrier with pad retaining pin	999	Next
7	3C0998281A	Servomotor for brake calliper housing with assembly parts	999	Next
8	4E0615137	O-ring	999	Next
9	N01470111	Socket head bolt with hexagon socket head M6X12MK	999	Next
10	N91168901	Socket head bolt with inner multipoint head (kombi) M12X1,5X65	999	Next
10	N91081501	Socket head bolt with inner multipoint head (kombi) M12X1,5X70	999	Next
11	1K0615601N	Brake disc (vented) 310X22MM 5/112	999	Next
11	JZW698601AQ	1 set brake discs with eco brake pads economy	999	Next
12	5N0615611E	Cover plate for brake disc	999	Next
12	5N0615612E	Cover plate for brake disc	999	Next
13	N91073301	Hexagon socket flat head bolt M6X12	999	Next
15	N10648301	Hex socket countersunk bolt M6X16	999	Next
16	3C0698451C	1 set of brake pads for disk brake	999	Next
17	8P0615231A	Intermediate plate	999	Next
18	1K0698470	1 set protective sleeves for guide pins	999	Next
19	1J0698671	Set of gaskets for brake caliper housing	999	Next
20	3C0615375A	Bracket	999	Next
20	3C0615376A	Bracket	999	Next
21	N10687901	Countersunk multi-point socket head bolt M8X16	999	Next
22	G000650	Solid lubricant paste 100G	999	Next
23	G052150A2	Lithium lubricating grease 180G	999	Next
25	1J0973722A	Flat contact housing with contact locking mechanism	999	Next

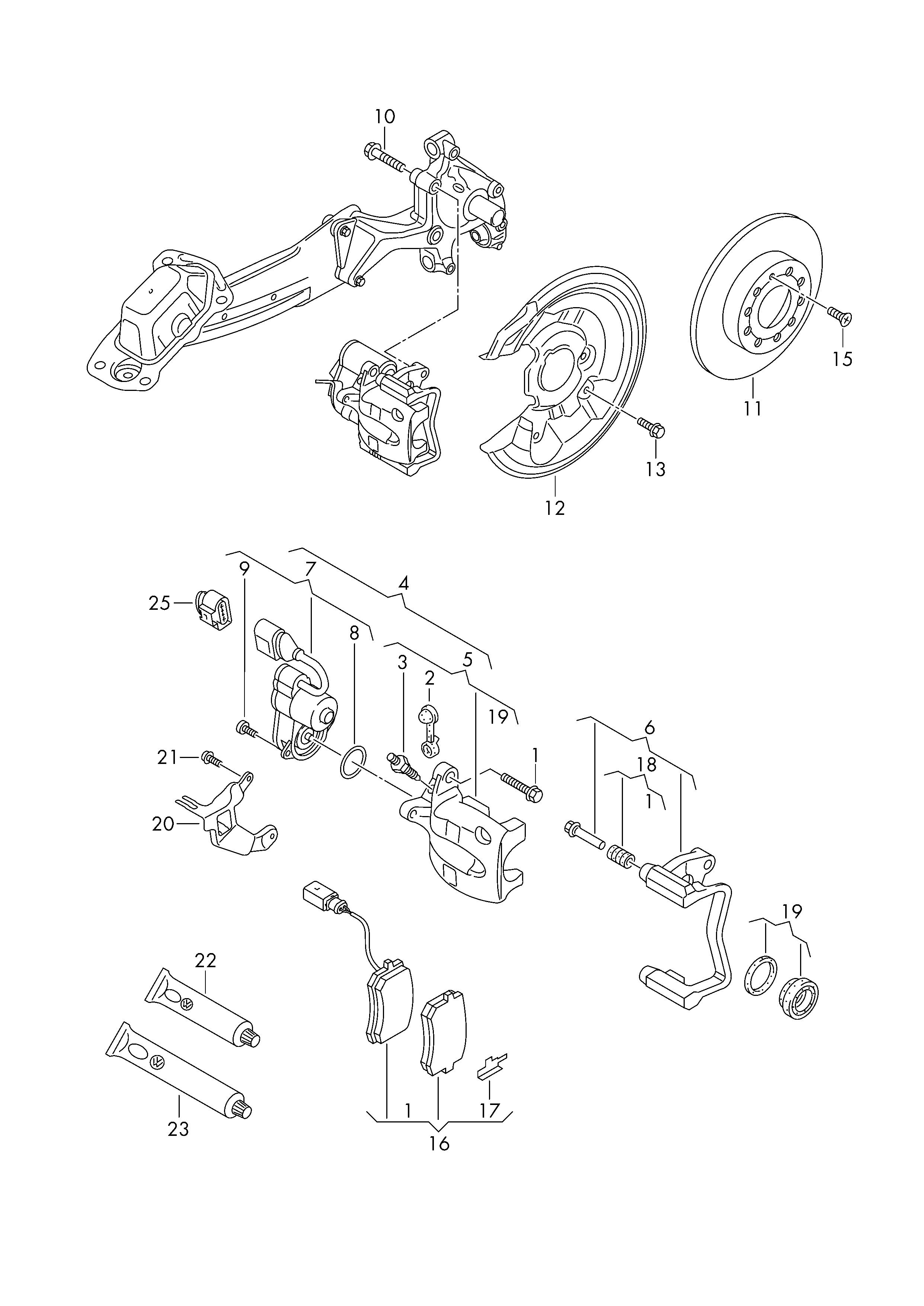

Scheme Disc brake rear PR-2EA Volkswagen Passat CC Coupe 2009-2012 EUR
