Disc brake rear PR-1KD Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	1K0615423J	Brake caliper housing	999	Next
1	1K0615424J	Brake caliper housing	999	Next
2	1K0615425P	Brake carrier with pad retaining pin	999	Next
3	WHT003250	Bolt, hex. hd. with shoulder, self-locking M8X22-MK	999	Next
4	1K0615273C	Breather valve	999	Next
5	211611483	Dust cap	999	Next
6	1K0615231B	Intermediate plate	999	Next
7	1K0615601AB	Brake disc 253X10MM 5/112	999	Next
8	1K0615611AB	Cover plate for brake disc	999	Next
8	1K0615612AB	Cover plate for brake disc	999	Next
9	JZW698601AA	1 set brake discs with 'eco' brake pads economy	999	Next
10	1K0698451J	1 set of brake pads for disk brake	999	Next
10	JZW698451	1 set of brake pads for disk brake 'eco' economy	999	Next
11	1K0698470	1 set protective sleeves for guide pins	999	Next
12	8D0698671	Set of gaskets for brake caliper housing	999	Next
14	WHT005227	Oval hexagon socket head bolt M6X12	999	Next
15	N10648301	Hex socket countersunk bolt M6X16	999	Next
16	N91168901	Socket head bolt with inner multipoint head (kombi) M12X1,5X65	999	Next
17	1K0615295	Spring brake lever	999	Next
17	1K0615296	Spring brake lever	999	Next

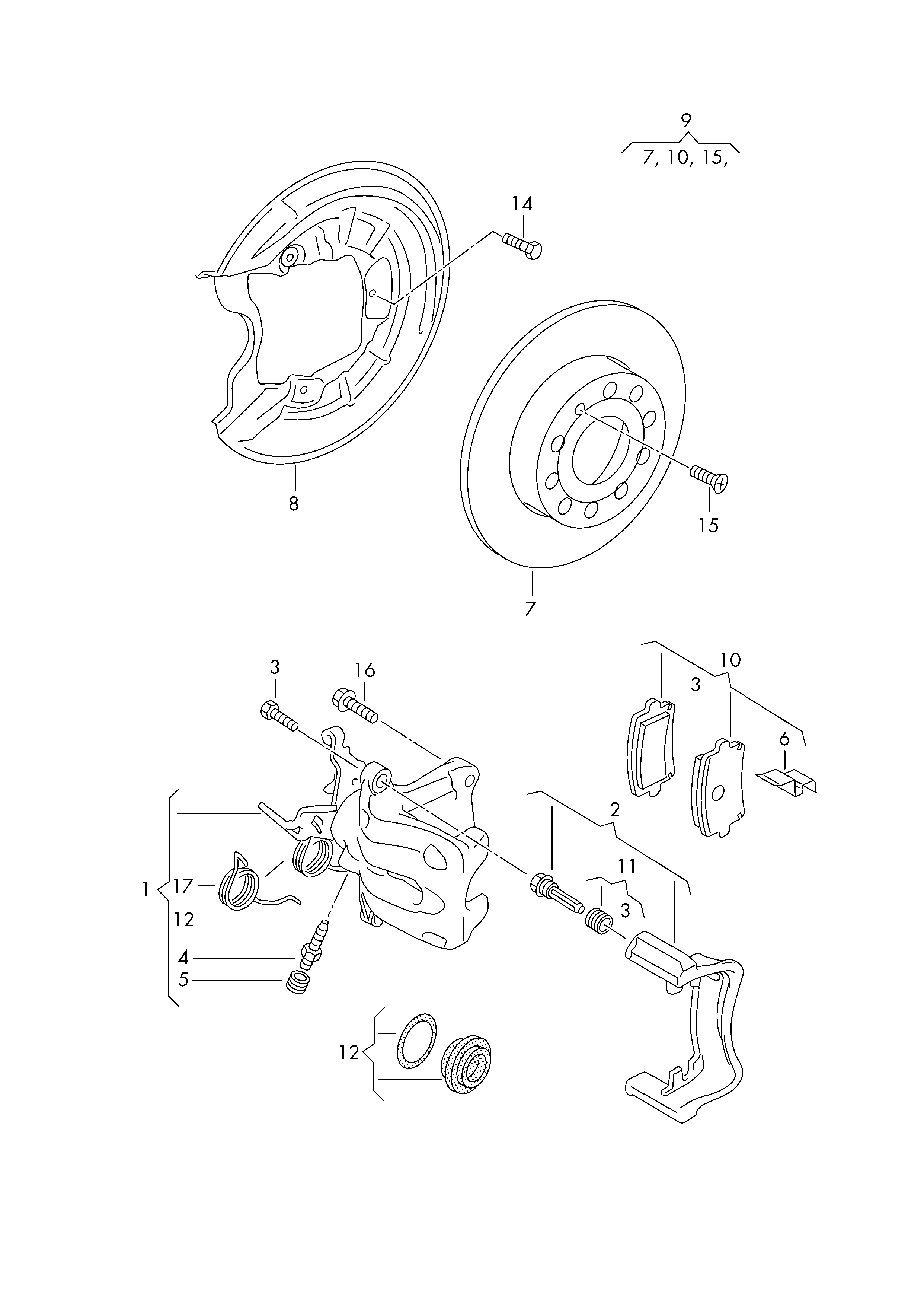

Scheme Disc brake rear PR-1KD Volkswagen Golf Plus 2012-2014 EUR
