Disc brake front PR-1ZF Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	1K0615123D	Brake caliper housing	999	Next
1	1K0615124D	Brake caliper housing	999	Next
2	1J0615219	Guide pin	999	Next
3	1J0615219	Guide pin	999	Next
6	1K0615311F	Cover plate for brake disc	999	Next
6	1K0615312F	Cover plate for brake disc	999	Next
7	WHT005227	Oval hexagon socket head bolt M6X12	999	Next
9	8P0698302	1 set brake discs with brake pads	999	Next
10	1K0615273B	Breather valve M10X1X35	999	Next
11	1K0615301AK	Brake disc (vented) 280X22 5/112	999	Next
11	JZW615301A	Brake disk (vented) 'eco' economy 280X22 5/112	999	Next
12	N10648301	Hex socket countersunk bolt M6X16	999	Next
13	211611483	Dust cap	999	Next
15	1K0698151F	1 set: brake pads with wear indicator for disc brake	999	Next
15	JZW698151	1 set of brake pads with wear display for disc brakes 'eco' economy	999	Next
16	4D0698647	1 set: guide bushes	999	Next
16	8V0698647	1 set: guide bushes	999	Next
17	8N0698471	Set of gaskets for brake caliper housing	999	Next
20	G000650	Solid lubricant paste 100G	999	Next
21	G052150A2	Lithium lubricating grease 180G	999	Next

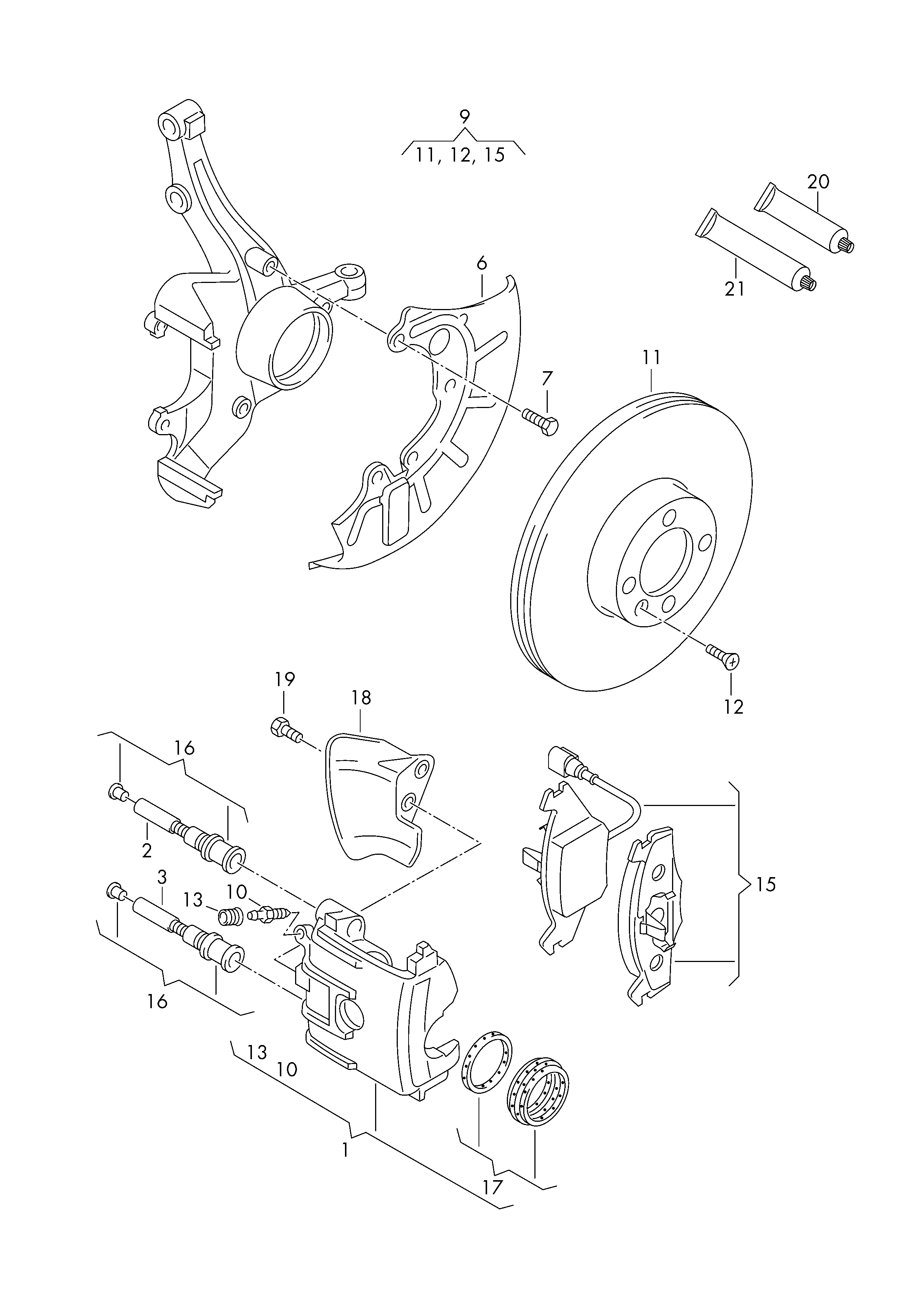

Scheme Disc brake front PR-1ZF Volkswagen Golf Plus 2012-2014 EUR
