Disc brake front PR-1ZA Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	1K0615123E	Brake caliper housing	999	Next
1	1K0615124E	Brake caliper housing	999	Next
2	5N0615125	Calliper carrier	999	Next
3	251615219	Guide pin	999	Next
4	1K0615269	Retaining spring	999	Next
5	211611483	Dust cap	999	Next
6	1K0615273A	Breather valve	999	Next
8	1K0615301AA	Brake disc (vented) 312X25 5/112	999	Next
8	JZW615301H	Brake disk (vented) 'eco' economy 312X25 5/112	999	Next
9	1K0615311F	Cover plate for brake disc	999	Next
9	1K0615312F	Cover plate for brake disc	999	Next
10	8E0098301T	1 set brake discs with brake pads	999	Next
10	8P0698302B	1 set brake discs with brake pads contains additional positions: 13	999	Next
11	N10648301	Hex socket countersunk bolt M6X16	999	Next
12	WHT005227	Oval hexagon socket head bolt M6X12	999	Next
13	N90948802	Self-locking bolt M14X1,5X35	999	Next
15	3C0698151C	1 set: brake pads with wear indicator for disc brake	999	Next
15	JZW698151B	1 set of brake pads with wear display for disc brakes 'eco' economy	999	Next
16	1K0698471B	Set of gaskets for brake caliper housing	999	Next
17	4D0698647	1 set: guide bushes	999	Next
17	8V0698647	1 set: guide bushes	999	Next
19	G000650	Solid lubricant paste 100G	999	Next
20	G052150A2	Lithium lubricating grease 180G	999	Next

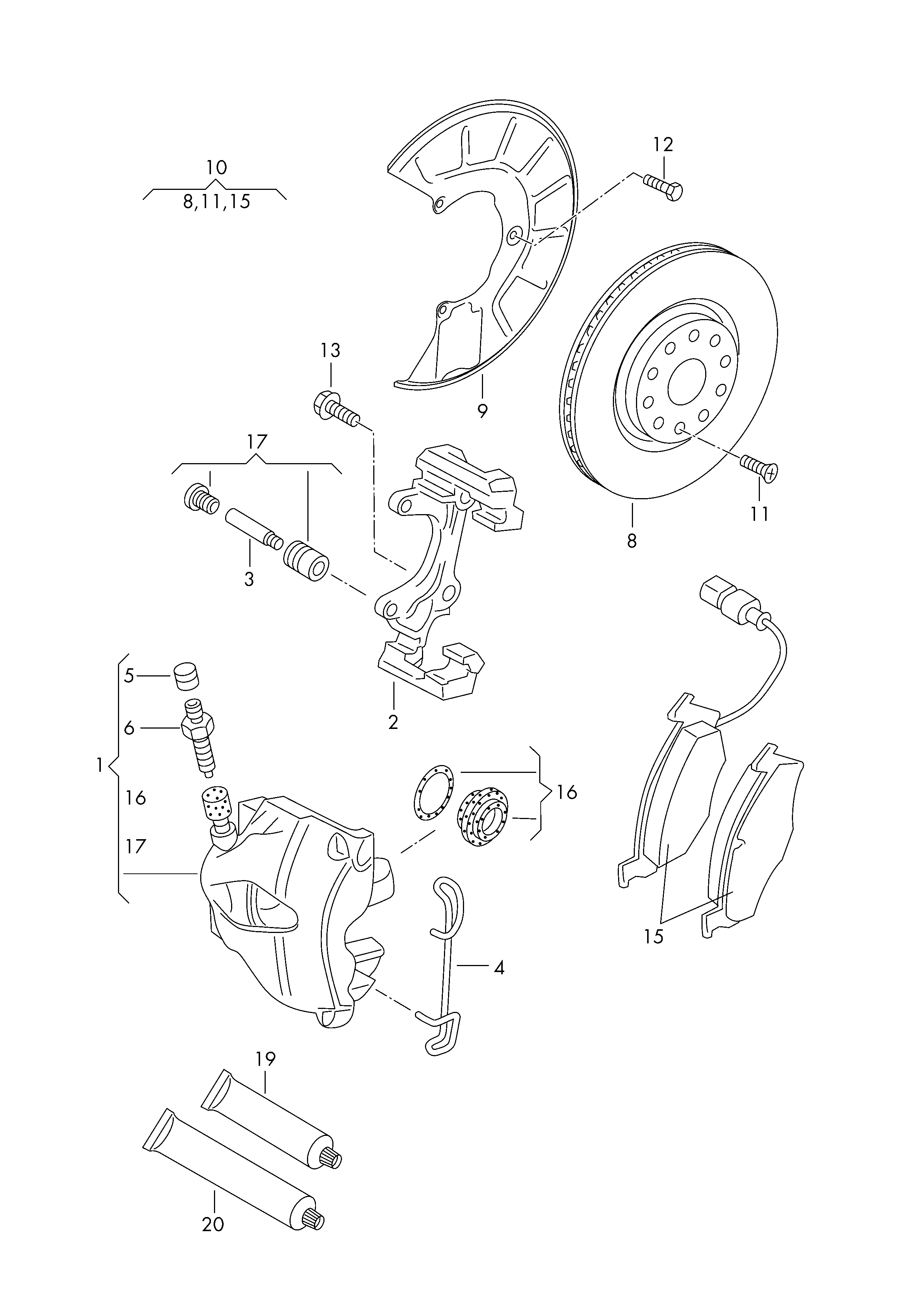

Scheme Disc brake front PR-1ZA Volkswagen Golf Plus 2012-2014 EUR
