Disc brake front PR-1LK Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	1K0615123H	Brake caliper housing	999	Next
1	1K0615124H	Brake caliper housing	999	Next
2	1K0615125B	Calliper carrier	999	Next
3	251615219	Guide pin	999	Next
4	4F0615269	Retaining spring	999	Next
5	1K0615273A	Breather valve M10X1	999	Next
6	211611483	Dust cap	999	Next
7	1K0615301M	Brake disc (vented) 345X30 5/112	999	Next
8	N10648301	Hex socket countersunk bolt M6X16	999	Next
9	1K0615311C	Cover plate for brake disc	999	Next
9	1K0615312C	Cover plate for brake disc	999	Next
10	N91073301	Hexagon socket flat head bolt M6X12	999	Next
12	N91084901	Self-locking bolt M14X1,5X55	999	Next
13		1 set brake discs with brake pads not for this model	999	Next
14	1K0698151B	1 set: brake pads with wear indicator for disc brake 345X30	999	Next
15	4D0698647	1 set: guide bushes	999	Next
16	4A0615134A	Cap with cable holder	999	Next
17	1K0698471A	Set of gaskets for brake caliper housing	999	Next
18	1K0611841A	Retainer for brake hose	999	Next
18	1K0611842A	Retainer for brake hose	999	Next
19	N90718602	Hexagon bolt M8X12	999	Next
20	1K0615409	Balance weight	999	Next
21	N10647602	Hexagon socket head bolt M6X45	999	Next
22	N10404805	Washer 6,4X12X1,6	999	Next
23	G000650	Solid lubricant paste 100G	999	Next
24	G052150A2	Lithium lubricating grease 180G	999	Next

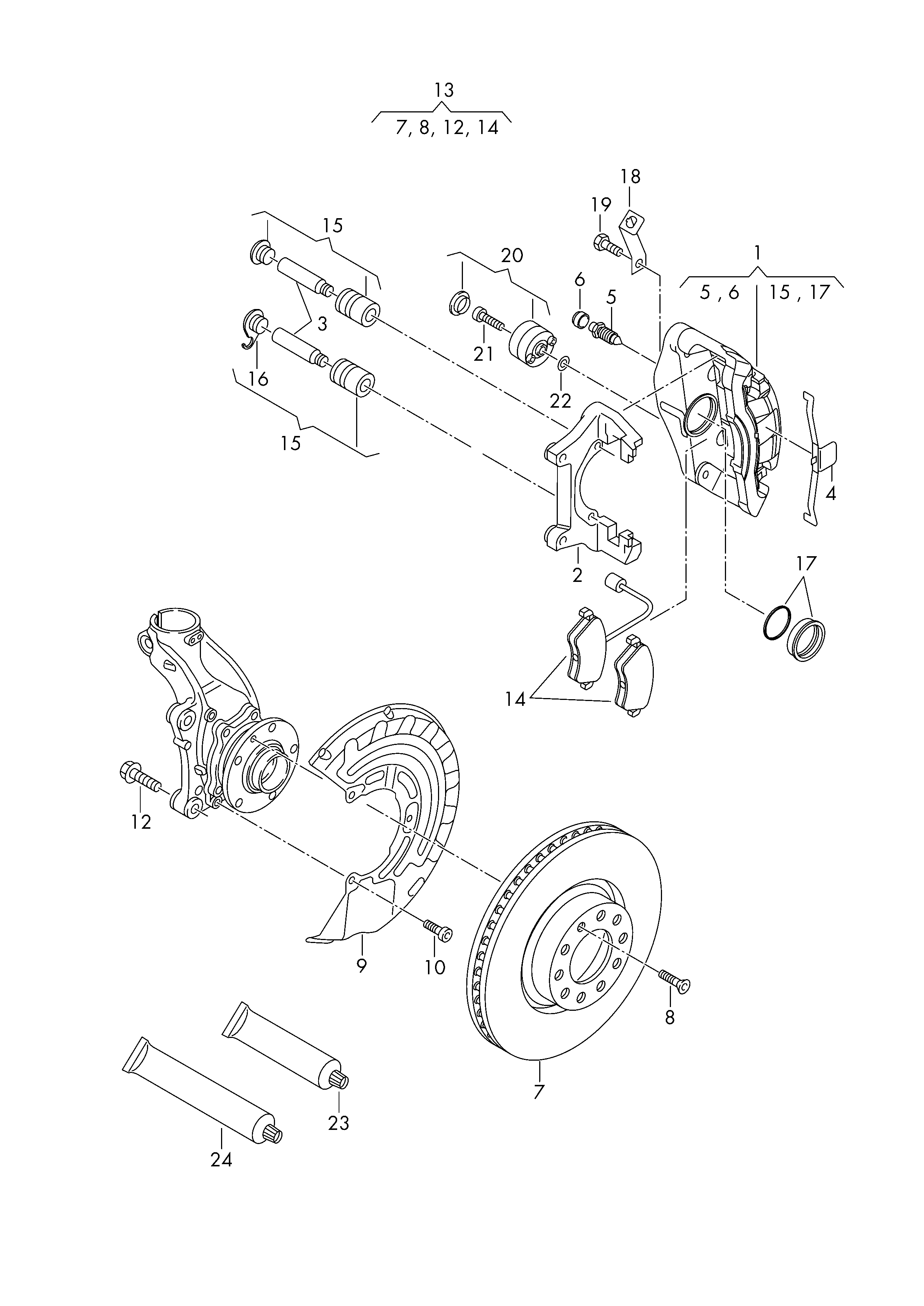

Scheme Disc brake front PR-1LK Volkswagen Passat CC Coupe 2009-2012 EUR
