Differential, stub shaft, 6-speed manual transmission, for four-wheel drive LMU, LMV, LMX, MXB, NGF, NGH Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	0A6409021K	Differential 67/14/19/17	999	Next
1	0A6409021L	Differential 66/15/20/18	999	Next
1	0A6409021N	Differential 64/15/21/19	999	Next
1	0A5409123A	Taper roller bearing 55X90X23	999	Next
1	0A5409123B	Taper roller bearing 55X90X23	999	Next
1		Impulse rotor not for this model	999	Next
1	0A5409123A	Taper roller bearing 55X90X23	999	Next
1	0A5409123B	Taper roller bearing 55X90X23	999	Next
1	0A5301310	Washer 62X78X2,8	999	Next
1	0A5498114	1 set shims 0,65-1,25	999	Next
1	0A6409343C	Stub shaft	999	Next
1	N 90635301	Securing ring 30,5	999	Next
1	02M409374A	Tapered ring	999	Next
1	02M409378A	Thrust washer 32X47	999	Next
1	84409379	Pressure spring	999	Next
1	WHT001315	O-ring 28X2,5	999	Next
1	0A5409413D	Snap ring	999	Next
1		Final drive	999	Next
1	02E409359	Socket head bolt with hexagon socket head M8X45,9	999	Next
1		O-ring	999	Next
1		Clutch housing	999	Next
1		Gear housing	999	Next

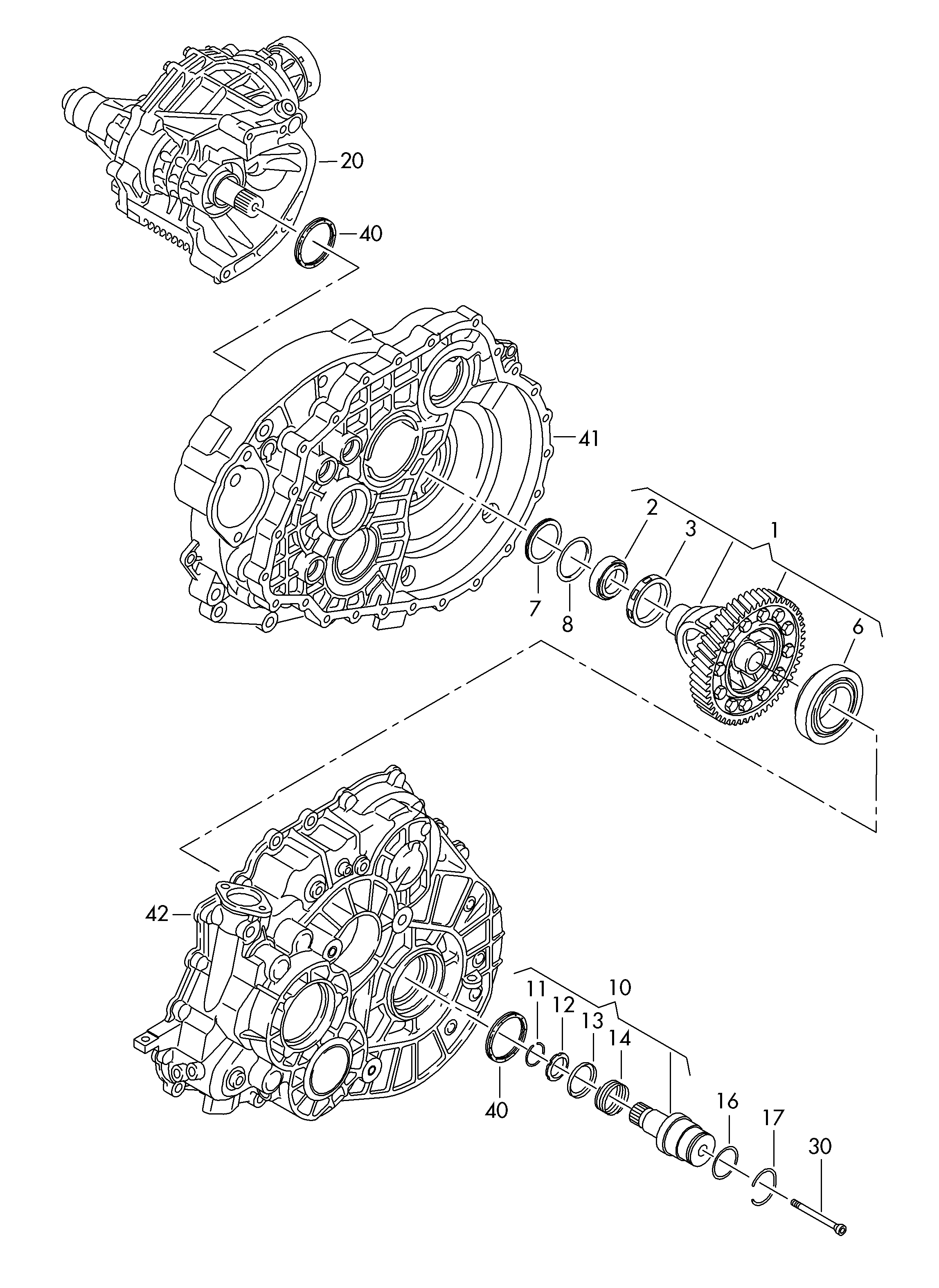

Scheme Differential, stub shaft, 6-speed manual transmission, for four-wheel drive LMU, LMV, LMX, MXB, NGF, NGH Volkswagen Tiguan 2010-2017 EUR
