Differential, flanged shaft, for 6 speed manual gearbox LQU, LXM, NFZ, QKP Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	02Q409021AS	Differential 72/17/22	999	Next
1	02Q409021AP	Differential 71/18/23	999	Next
1	02M517185A	Taper roller bearing 48X76X18	999	Next
1	002517185A	Taper roller bearing 46X75X18	999	Next
1	002517185M	Taper roller bearing 46X75X18	999	Next
1	02Q409208	Sealing plate 54X76	999	Next
1	02B498210	1 set shims 0,65-1,25	999	Next
1	02M409343D	Flanged shaft	999	Next
1	02M409343E	Flanged shaft	999	Next
1	N 90635301	Securing ring 30,5	999	Next
1	02M409374A	Tapered ring	999	Next
1	02M409378A	Thrust washer 32X47	999	Next
1	02Q409379A	Pressure spring	999	Next
1	02M409375	Protective ring	999	Next
1	02Q409344	Flanged shaft	999	Next
1	02Q409344B	Flanged shaft	999	Next
1	02Q409375A	Protective ring	999	Next
1	02J409359	Socket head bolt with hexagon socket head M8X83,2	999	Next
1		Radial shaft seal	999	Next
1		Radial shaft seal	999	Next
1		Clutch housing	999	Next
1		Gear housing	999	Next

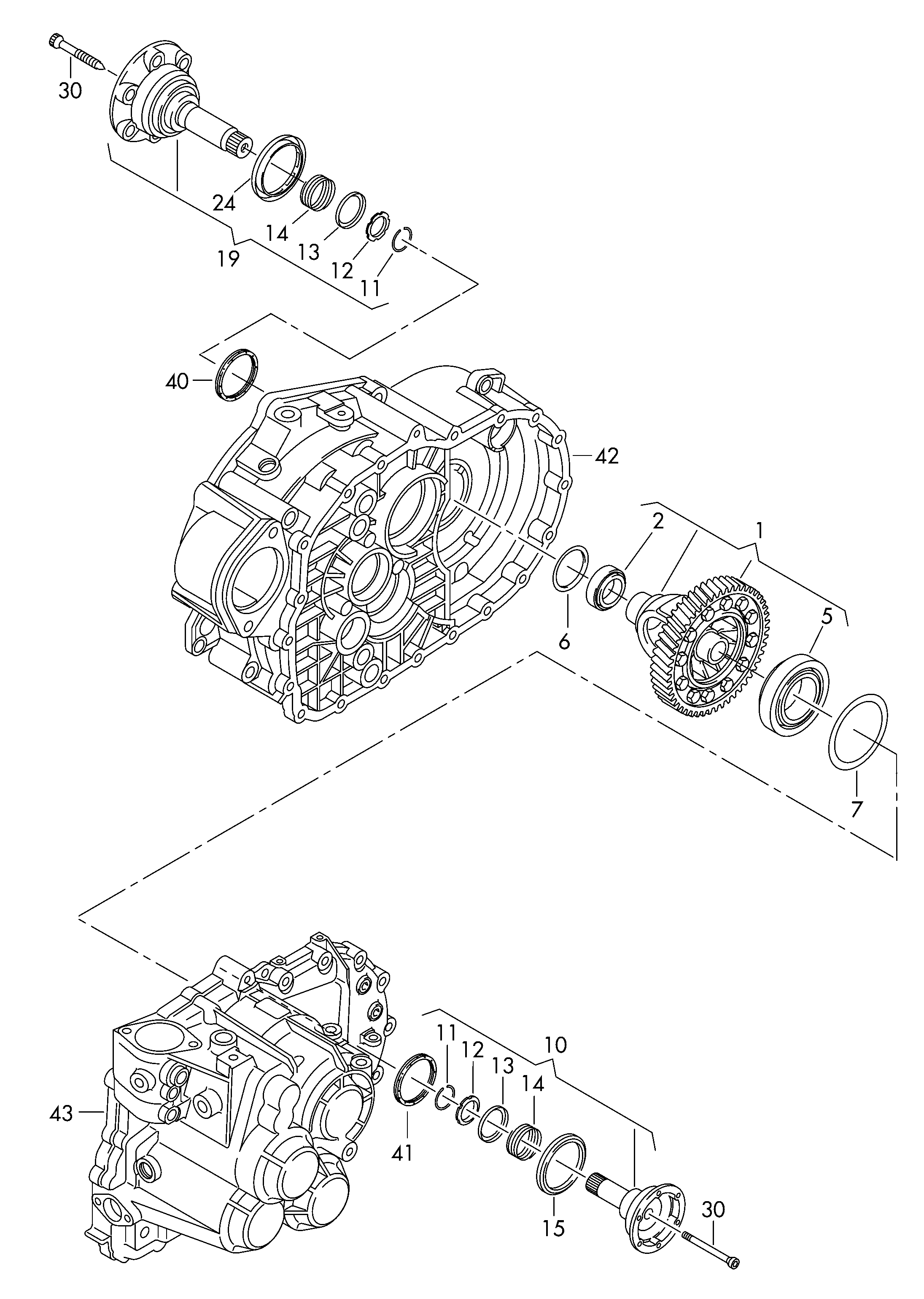

Scheme Differential, flanged shaft, for 6 speed manual gearbox LQU, LXM, NFZ, QKP Volkswagen Tiguan 2010-2017 EUR
