Differential flanged shaft for 6 speed manual gearbox KNS, KNU, KNY, KXX, KZS, KXZ, LHD, LNZ, MHA, MDL, NFP, NFU, NGD Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	02Q409021S	Differential 71/18/23	999	Next
1	02Q409021N	Differential 70/19/24	999	Next
1	02Q409021R	Differential 69/20/25	999	Next
1	02Q409021AP	Differential 71/18/23	999	Next
1	02Q409021BA	Differential 70/19/24	999	Next
2	02M517185A	Taper roller bearing 48X76X18	999	Next
3	02Q498081B	1 set: differential pinions	999	Next
4	N90973701	Spannhuelse 5,4X35	999	Next
5	002517185A	Taper roller bearing 46X75X18	999	Next
5	002517185M	Taper roller bearing 46X75X18	999	Next
6	02Q409208	Sealing plate 54X76	999	Next
7	02B498210	1 set shims 0,651,25	999	Next
10	02M409343D	Flanged shaft	999	Next
11	N90635301	Securing ring 30,5	999	Next
12	02M409374A	Tapered ring	999	Next
13	02M409378A	Thrust washer 32X47	999	Next
14	84409379	Pressure spring	999	Next
15	02M409375	Protective ring	999	Next
19	02Q409344	Flanged shaft	999	Next
19	02Q409344B	Flanged shaft	999	Next
24	02Q409375A	Protective ring	999	Next
30	02J409359	Socket head bolt with hexagon socket head M8X83,2	999	Next
40		Gear housing	999	Next

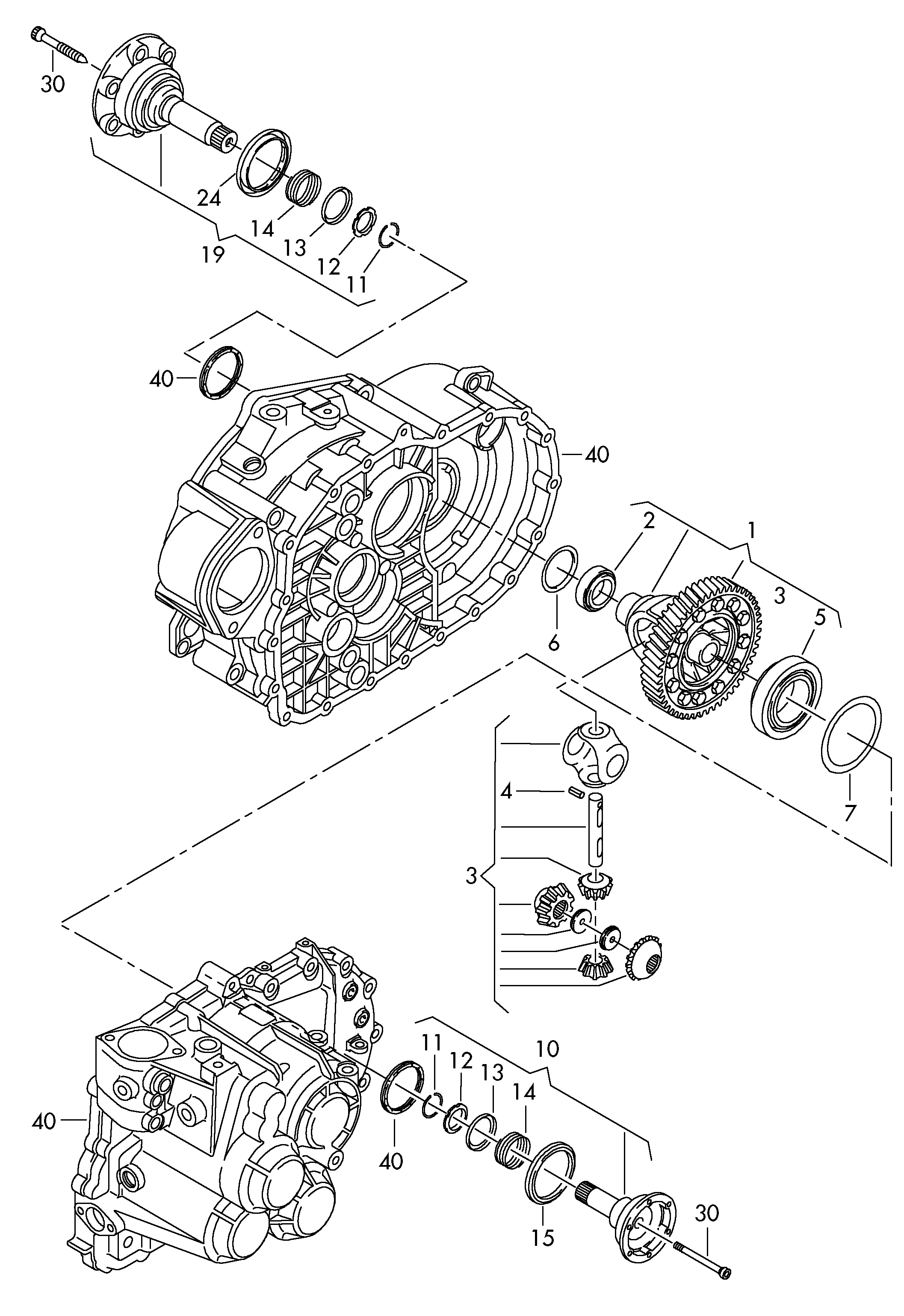

Scheme Differential flanged shaft for 6 speed manual gearbox KNS, KNU, KNY, KXX, KZS, KXZ, LHD, LNZ, MHA, MDL, NFP, NFU, NGD Volkswagen Passat CC Coupe 2009-2012 EUR
