Differential, flanged shaft, for 5 speed manual transmiss. LEG, LVQ, NVU Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	02T409021BN	Differential Z=61	999	Next
1	02T409021AP	Differential 68/15	999	Next
1	02T409021BS	Differential also use: Z=64 02T 311 198 R	999	Next
2	003519185F	Taper roller bearing 38,1X65X18	999	Next
3	96323981	Taper roller bearing 38,1X65X18	999	Next
3	096323981P	Taper roller bearing 41X68X17,5	999	Next
5	02K498210	1 set shims 0,65-1,25	999	Next
7	02T409189C	Shaft oil seal 50X65X8	999	Next
7	02T409189K	Shaft oil seal 50X65X8	999	Next
8	02M301189G	O-ring 60X74,3X8	999	Next
8A	G052128A1	Sealing grease for radial shaft oil seal 50G	999	Next
9	02T409343A	Flanged shaft	999	Next
9	02T409343	Flanged shaft	999	Next
10	02T409344A	Flanged shaft	999	Next
10	02T409344	Flanged shaft	999	Next
11	020409379B	Pressure spring	999	Next
12	20409378	Thrust washer	999	Next
13	20409374	Tapered ring	999	Next
14	N90564501	Snap ring 28,5	999	Next
15	02T409375B	Protective ring	999	Next
18	3507327	Socket head bolt with hexagon socket head M8X72	999	Next
20		Gear housing	999	Next

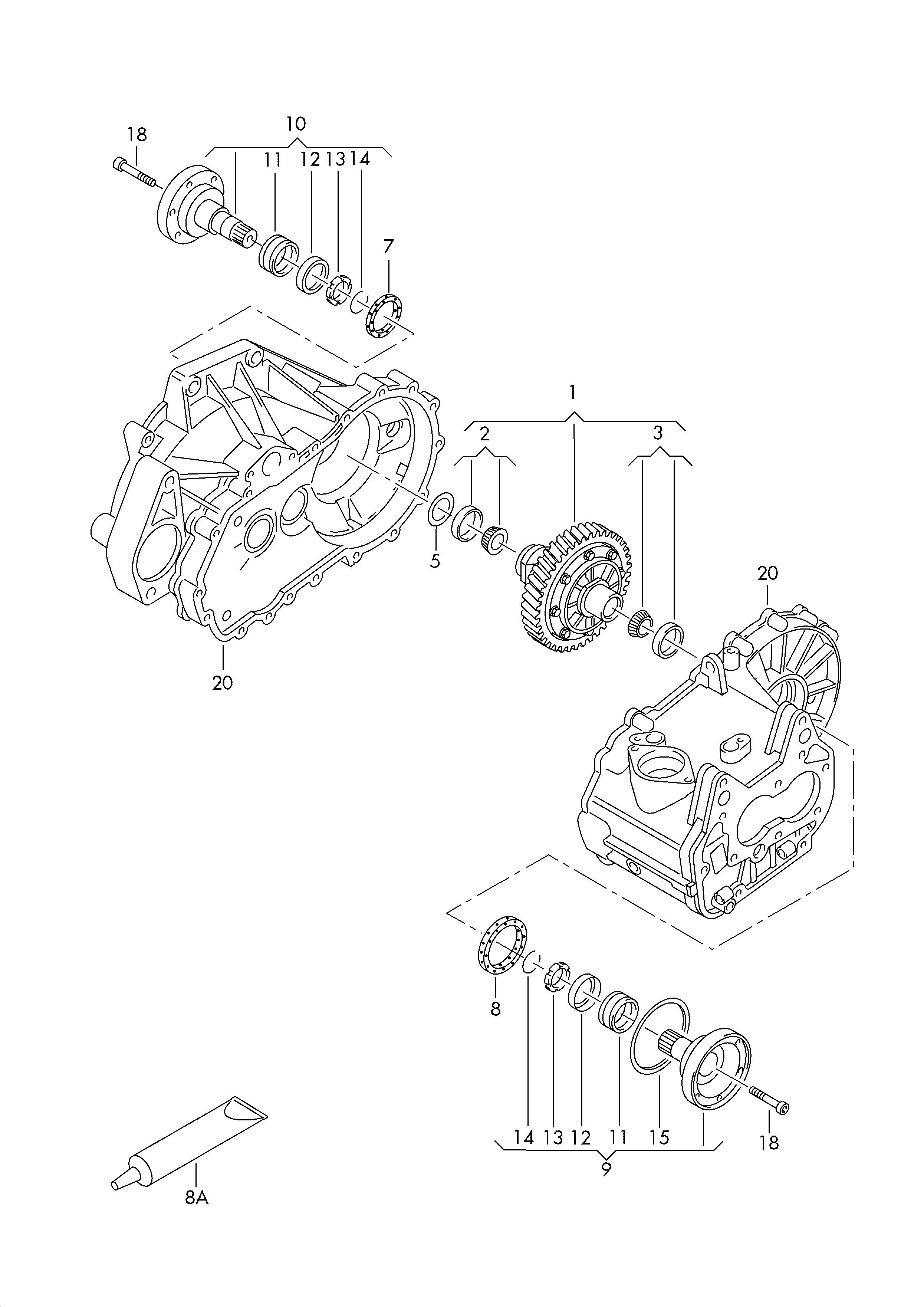

Scheme Differential, flanged shaft, for 5 speed manual transmiss. LEG, LVQ, NVU Volkswagen Golf Plus 2012-2014 EUR
