Differential, flanged shaft, for 5 speed manual transmiss. KQM, LHW, LUB Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	02J409021BG	Differential	999	Next
1	0A4409021N	Differential	999	Next
2	96323981	Taper roller bearing 41X68X17,5	999	Next
2	096323981P	Taper roller bearing 41X68X17,5	999	Next
3	02A498210	1 set shims 0,65-1,4	999	Next
7		Sleeve included in position: 8B	999	Next
8	02J409189A	Shaft oil seal	999	Next
8	02J409189E	Shaft oil seal	999	Next
8A		Shaft oil seal included in position: 8B	999	Next
8B	02J409528A	Shaft oil seal	999	Next
8B	02J409528C	Shaft oil seal 48X60X26,6	999	Next
8D	G052128A1	Sealing grease for radial shaft oil seal 50G	999	Next
10	02A409343C	Flanged shaft	999	Next
11	84409379	Pressure spring	999	Next
12	02J409378	Thrust washer	999	Next
13	20409374	Tapered ring	999	Next
14	N90564501	Snap ring 28,5	999	Next
15	02J409359	Socket head bolt with hexagon socket head M8X83,2	999	Next
16		Gear housing	999	Next

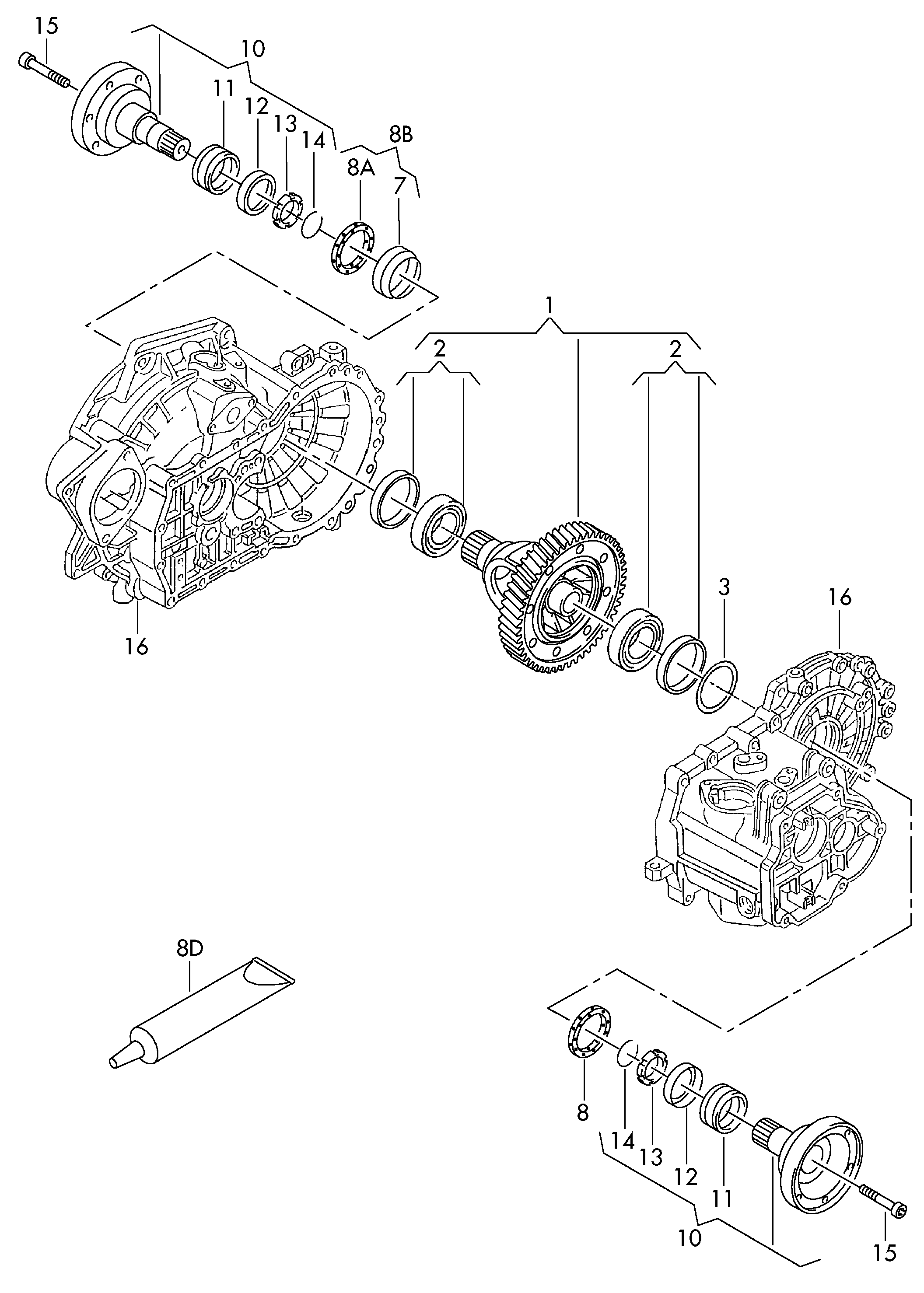

Scheme Differential, flanged shaft, for 5 speed manual transmiss. KQM, LHW, LUB Volkswagen Golf Plus 2012-2014 EUR
