Dashboard fittings lower, before 07.11.2010 Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	1K0857058A	Stowage compartment	999	Next
1	1K0857058A1QB	Stowage compartment black	999	Next
3	3C0858069AE	Trim not for: "AUS","CDN"	999	Next
3	3C0858069AE3H5	Trim not for: "AUS","CDN" matt chrome	999	Next
3	3C0858069AF	Trim	999	Next
3	3C0858069AF3H5	Trim matt chrome	999	Next
3	3C0858069AG	Trim not for: "AUS","CDN"	999	Next
3	3C0858069AG20V	Trim not for: "AUS","CDN" brushed aluminium	999	Next
3	3C0858069AH	Trim	999	Next
3	3C0858069AH20V	Trim brushed aluminium	999	Next
4	N90698606	Hexagon socket head panel bolt 4,2X16	999	Next
5	3C0857942	Spring clip	999	Next
6	1K0857231A	Trim for radio aperture	999	Next
6	1K0857231A1QB	Trim for radio aperture black	999	Next
7	1K0858169	Insert for stowage compartment	999	Next
7	1K08581699B9	Insert for stowage compartment satin black	999	Next
10	3C1857114E	Mount for glove box glove compartment	999	Next
10	3C1857114E9B9	Mount for glove box glove compartment satin black	999	Next
10	3C1857114E	Mount for glove box glove compartment	999	Next
10	3C1857114E1QB	Mount for glove box glove compartment black	999	Next
10	3C2857114D	Mount for glove box glove compartment	999	Next
10	3C2857114D9B9	Mount for glove box glove compartment satin black	999	Next
10	3C2857114D	Mount for glove box glove compartment	999	Next
10	3C2857114D1QB	Mount for glove box glove compartment black	999	Next
11	3C1858635	Brake element	999	Next
11	3C2858635A	Brake element	999	Next
11	3C2858635	Brake element	999	Next
12	3C0857145	Stop buffer, adjustable	999	Next
13	3C1858543	Sealing bearing	999	Next
13	3C18585439B9	Sealing bearing satin black	999	Next
13	3C2858543	Sealing bearing	999	Next
13	3C28585439B9	Sealing bearing satin black	999	Next
14	3C1858544	Sealing bearing	999	Next
14	3C18585449B9	Sealing bearing satin black	999	Next
14	3C2858544	Sealing bearing	999	Next
14	3C28585449B9	Sealing bearing satin black	999	Next
15	3C0857169	Hinge pin	999	Next
16	3C1858309A	Brake element micro switch	999	Next
16	3C2858309A	Brake element micro switch	999	Next
17	1C1880802	Securing pin brake element	999	Next
20	3C1857285E	Stowage comp. with mounting	999	Next
20	3C1857285E9B9	Stowage comp. with mounting satin black	999	Next
20	3C1857285E	Stowage comp. with mounting	999	Next
20	3C1857285E9B9	Stowage comp. with mounting satin black	999	Next
20	3C2857285C	Stowage comp. with mounting	999	Next
20	3C2857285C9B9	Stowage comp. with mounting satin black	999	Next
20	3C2857285C	Stowage comp. with mounting	999	Next
20	3C2857285C9B9	Stowage comp. with mounting satin black	999	Next
20	3C1857285N	Glove box with vehicle wallet slot	999	Next
20	3C1857285N9B9	Glove box with vehicle wallet slot satin black	999	Next
20	3C2857285J	Glove box with vehicle wallet slot	999	Next
20	3C2857285J9B9	Glove box with vehicle wallet slot satin black	999	Next
21		Support use item: 20	999	Next
22		Hex socket oval head collared use item: 20	999	Next
23		Holder for ipod not for this model	999	Next
24		Stowage compartment not for this model	999	Next
25	3C1857101H	Glove compartment (passenger side)	999	Next
25	3C1857101H1QB	Glove compartment (passenger side) black -HL, KX, NC, TL, VX, ZU, IW	999	Next
25	3C1857101HH67	Glove compartment (passenger side) corn silk beige -HM, ND, XF, ZV	999	Next
25	3C2857101F	Glove compartment (passenger side)	999	Next
25	3C2857101F1QB	Glove compartment (passenger side) black -HL, KX, NC, TL, VX, ZU, IW	999	Next
25	3C2857101FH67	Glove compartment (passenger side) corn silk beige -HM, ND, XF, ZV	999	Next
26	3C1857147A	Glove box opening mechanism	999	Next
26	3C1857147A1QB	Glove box opening mechanism black -HL, KX, NC, TL, VX, ZU, IW	999	Next
26	3C1857147AH67	Glove box opening mechanism вcorn silk beige -HM, ND, XF, ZV	999	Next
26	3C2857147A	Glove box opening mechanism	999	Next
26	3C2857147A1QB	Glove box opening mechanism black -HL, KX, NC, TL, VX, ZU, IW	999	Next
26	3C2857147AH67	Glove box opening mechanism corn silk beige -HM, ND, XF, ZV	999	Next
27	N10415903	Oval hexagon socket head bolt 4X12	999	Next
28	107857113JD	Lock cylinder without key to retain the one key system the key code number and/or chassis number must be quoted when ordering HUF	999	Next
30	3C1857200G	Trim (drivers side)	999	Next
30	3C1857200G1QB	Trim (drivers side) black -HL, KX, NC, TL, VX, ZU, IW	999	Next
30	3C1857200GH67	Trim (drivers side) corn silk beige -HM, ND, XF, ZV	999	Next
30	3C1857200H	Trim (drivers side)	999	Next
30	3C1857200H1QB	Trim (drivers side) black -HL, KX, NC, TL, VX, ZU, IW	999	Next
30	3C1857200HH67	Trim (drivers side) corn silk beige -HM, ND, XF, ZV	999	Next
30	3C2857200D	Trim (drivers side)	999	Next
30	3C2857200D1QB	Trim (drivers side) black -HL, KX, NC, TL, VX, ZU, IW	999	Next
30	3C2857200DH67	Trim (drivers side) corn silk beige -HM, ND, XF, ZV	999	Next
30	3C2857200G	Trim (drivers side)	999	Next
30	3C2857200G1QB	Trim (drivers side) black -HL, KX, NC, TL, VX, ZU, IW	999	Next
30	3C2857200GH67	Trim (drivers side) corn silk beige -HM, ND, XF, ZV	999	Next
31	1K0867388A	Clip	999	Next
32	N90698801	Speed nut 4,2X16X12	999	Next
32	1K0867388	Clip	999	Next
33	3C1857660	Trim	999	Next
33	3C18576609B9	Trim satin black -HL, KX, NC, TL, VX, ZU, IW	999	Next
33	3C185766095T	Trim corn silk beige -HM, ND, XF, ZV	999	Next
33	3C2857660	Trim	999	Next
33	3C28576609B9	Trim satin black -HL, KX, NC, TL, VX, ZU, IW	999	Next
33	3C285766095T	Trim corn silk beige -HM, ND, XF, ZV	999	Next
35	3C1857921L	Tray (drivers side)	999	Next
35	3C1857921L1QB	Tray (drivers side) black -HL, KX, NC, TL, VX, ZU, IW	999	Next
35	3C1857921L	Tray (drivers side)	999	Next
35	3C1857921LH67	Tray (drivers side) corn silk beige -HM, ND, XF, ZV	999	Next
35	3C1857921M	Tray (drivers side)	999	Next
35	3C1857921M1QB	Tray (drivers side) black -HL, KX, NC, TL, VX, ZU, IW	999	Next
35	3C1857921MH67	Tray (drivers side) corn silk beige -HM, ND, XF, ZV	999	Next
35	3C2857922F	Tray (drivers side)	999	Next
35	3C2857922F1QB	Tray (drivers side) black -HL, KX, NC, TL, VX, ZU, IW	999	Next
35	3C2857922F	Tray (drivers side)	999	Next
35	3C2857922FH67	Tray (drivers side) corn silk beige -HM, ND, XF, ZV	999	Next
35	3C2857922G	Tray (drivers side)	999	Next
35	3C2857922G1QB	Tray (drivers side) black -HL, KX, NC, TL, VX, ZU, IW	999	Next
35	3C2857922GH67	Tray (drivers side) corn silk beige -HM, ND, XF, ZV	999	Next

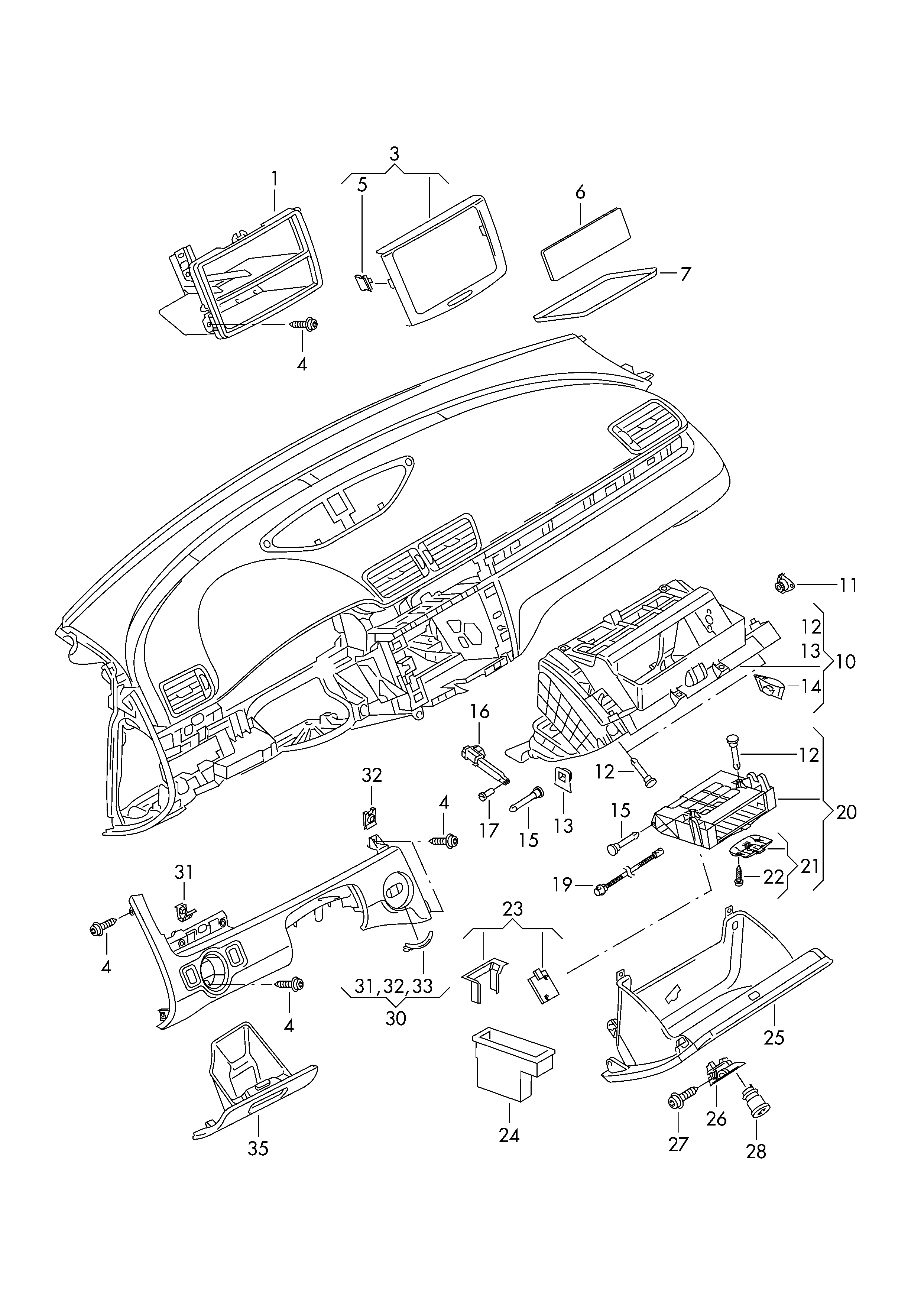

Scheme Dashboard fittings lower, before 07.11.2010 Volkswagen Passat CC Coupe 2009-2012 EUR
