Cylinder head, cylinder head cover, ventilation for cylinder block 1.6ltr. petrol eng.+, BSE, BSF, CHGA, CMXA Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	06B103351F	Cylinder head	999	Next
1	06B103265EX	Cylinder head with valves and camshaft	999	Next
1	06A103351T	Cylinder head	999	Next
1	06A103275FX	Cylinder head with valves and camshaft	999	Next
1	06A103351AA	Cylinder head	999	Next
1	06A103275EX	Cylinder head with valves and camshaft	999	Next
1	06A103351AD	Cylinder head	999	Next
1	06A103275EX	Cylinder head with valves and camshaft N 106 042 01	999	Next
2	038103085C	Shaft oil seal (shaft rotation: to right) 47X10X32	999	Next
3	06B103113C	End cap 26	999	Next
4	56103397	Threaded pin M8X56	999	Next
5		Washer 6	999	Next
6	N10609203	Hexagon collar nut M8	999	Next
7	N90188902	Threaded pin M8X35	999	Next
7	N10604201	Threaded pin M8X20	999	Next
8	N01191410	End cap 24	999	Next
10	06B103383AG	Cylinder head gasket	999	Next
10	06B103383H	Cylinder head gasket (metal)	999	Next
11	06A103384C	Socket head bolt M10X1,5X115	999	Next
12		Valve guide no replacement part	999	Next
13	06A103469BB	Cylinder head cover	999	Next
14	06B103483G	Seal	999	Next
14	06B103483L	Seal	999	Next
15	06B103831H	Hexagon socket flat head bolt with guide sleeve	999	Next
16	06B103485C	End cap	999	Next
17	06A103483D	Seal	999	Next
18		Vent hose not for this model	999	Next
19		Spring band clamp not for this model	999	Next
20	06A103211K	Breather line	999	Next
21	N90039603	O-ring 9,25X1,78	999	Next
22	N10226103	Socket head bolt M6X16	999	Next

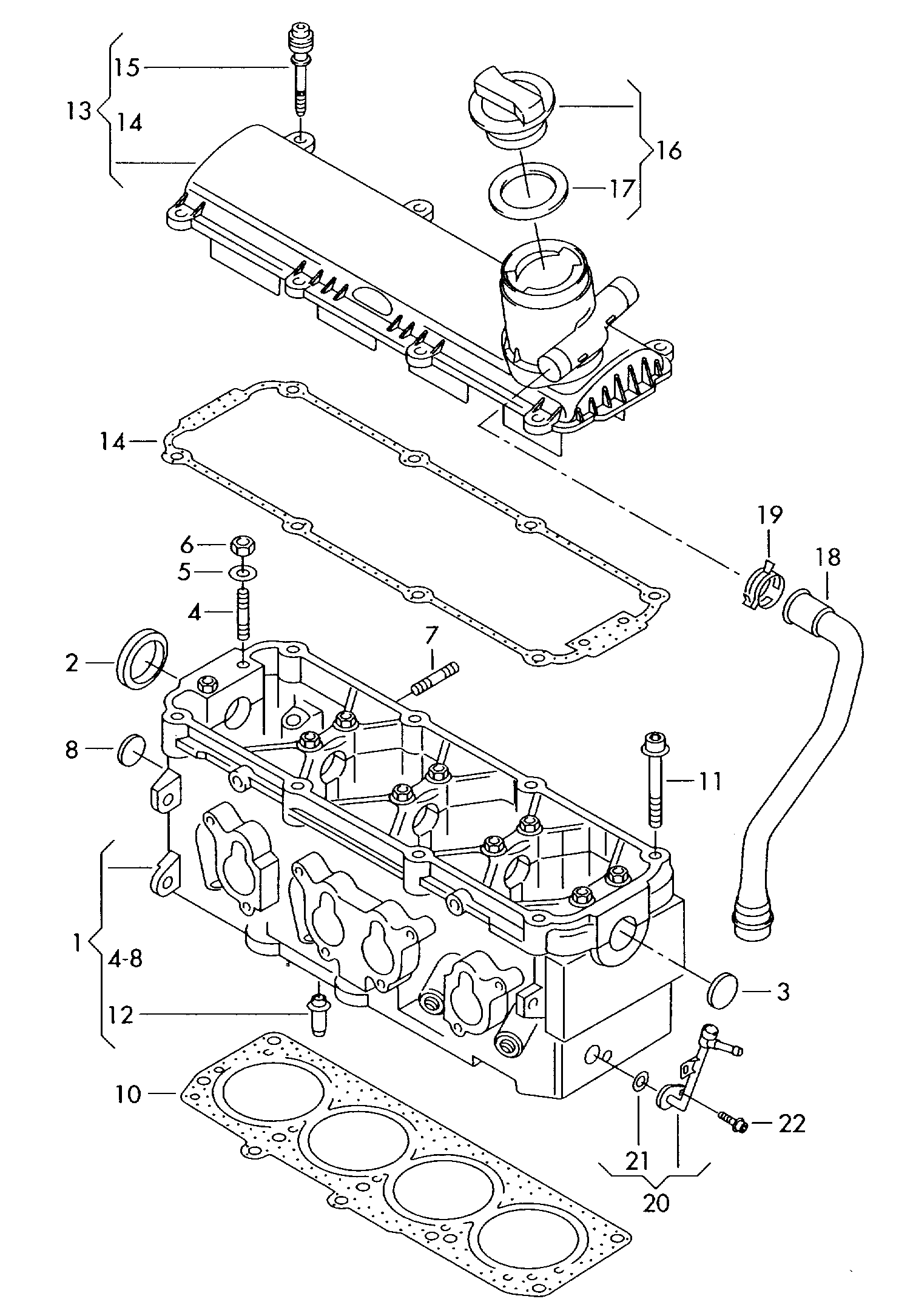

Scheme Cylinder head, cylinder head cover, ventilation for cylinder block 1.6ltr. petrol eng.+, BSE, BSF, CHGA, CMXA Volkswagen Golf Plus 2012-2014 EUR
