Cylinder head, cylinder head cover, cover for intake manifold 1.4ltr. petrol eng.+, CAVD, CNWA, CTHD, CTKA Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	03C103063CR	Cylinder head with valves	999	Next
1	03C103264EX	Cylinder head with valves (without camshaft)	999	Next
1	03C103063DE	Cylinder head with valves	999	Next
2	N0132102	Cylinder pin 6X16	999	Next
3	WHT004984	Threaded pin M8X25	999	Next
4	036115175B	Oil strainer	999	Next
4	03C115175	Oil strainer	999	Next
5	N01191410	End cap 24	999	Next
6		Retaining pin no replacement part	999	Next
7		Valve guide no replacement part	999	Next
8	03C103383R	Cylinder head gasket (metal)	999	Next
8	03C103383AH	Cylinder head gasket (metal)	999	Next
9	WHT000912	Socket head bolt with inner multipoint head M9X1,25X102	999	Next
10	D154103A1	Sealant 100G	999	Next
10	D176600A1	Silicone sealant	999	Next
11	03C103475BC	Cylinder head cover	999	Next
11	03C103475CD	Cylinder head cover	999	Next
12	D176501A1	Silicon sealant	999	Next
13	N10247504	Socket head bolt with inner multipoint head M6X65	999	Next
14	N10300805	Socket head bolt with inner multipoint head M6X45	999	Next
15	36103111	End cap	999	Next
16	03C103111C	End cap	999	Next
17	N90344501	O-ring 45X3	999	Next
18	N10451405	Oval hexagon socket head bolt M6X16	999	Next
19		Tappets 133-053,10	999	Next
20		Impulse sender 906-030,8	999	Next
21		Vent hose not for this model	999	Next
21A	03C103558D	Vent hose	999	Next
22		Ball head 103-075,6	999	Next
23		Grommet 103-075,4	999	Next
24		Cover for intake manifold 103-075,2	999	Next
25	03C103196	O-ring	999	Next
26		Non-return valve no replacement part 21A	999	Next

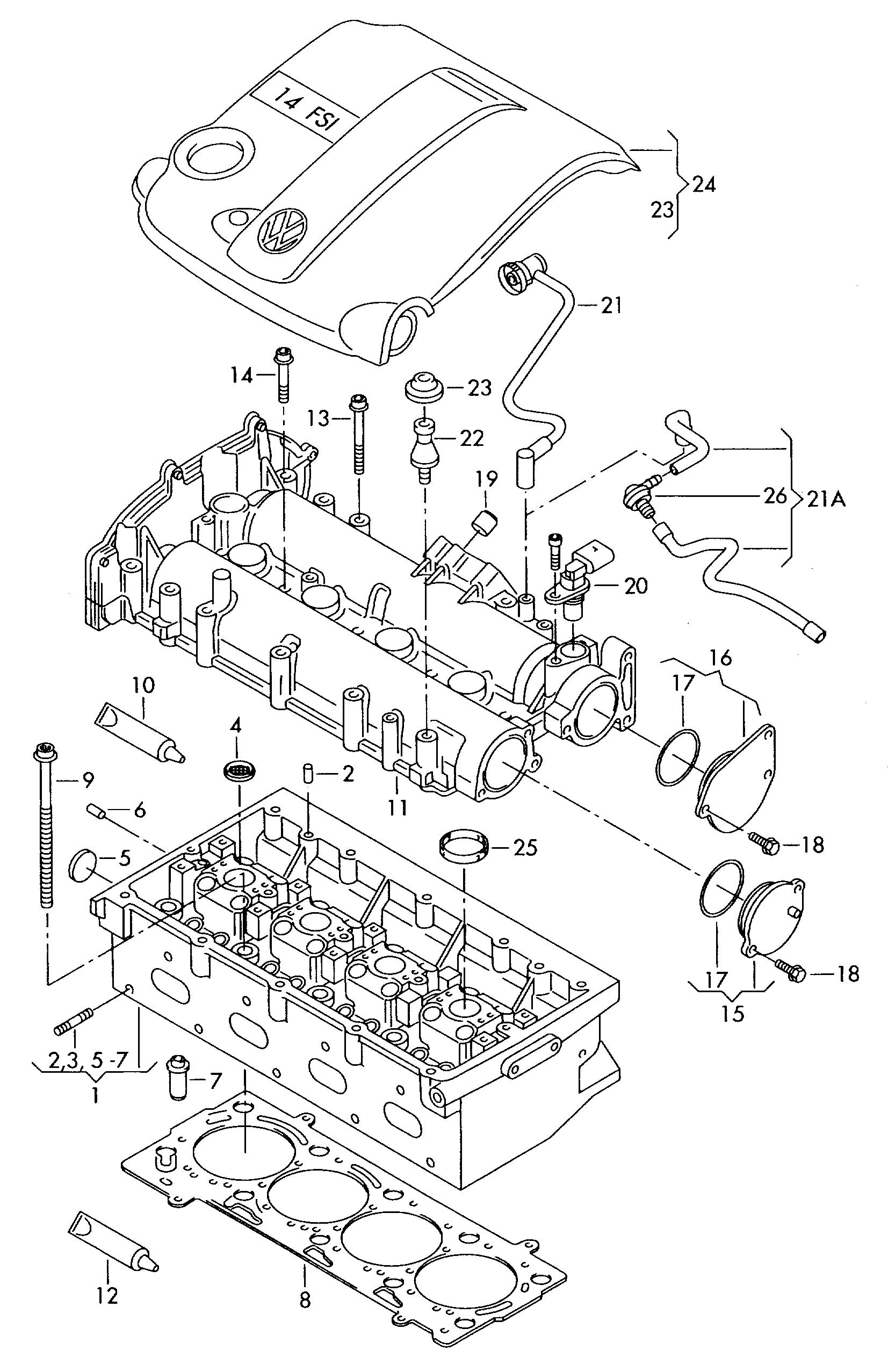

Scheme Cylinder head, cylinder head cover, cover for intake manifold 1.4ltr. petrol eng.+, CAVD, CNWA, CTHD, CTKA Volkswagen Golf Plus 2012-2014 EUR
