Cylinder head, cylinder head cover, cover for intake manifold 1.4ltr. petr. engine Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	03C103063CR	Cylinder head with valves	999	Next
1	03C103264EX	Cylinder head with valves (without camshaft)	999	Next
1	03C103063CS	Cylinder head with valves	999	Next
1	03C103264DX	Cylinder head with valves (without camshaft)	999	Next
1	N 0132102	Cylinder pin 6X16	999	Next
1	WHT004984	Threaded pin M8X25	999	Next
1	036115175B	Oil strainer	999	Next
1	03C115175	Oil strainer	999	Next
1	N 01191410	End cap 24	999	Next
1	56103379	Bungs 7,4	999	Next
1	056103379A	Bungs 8	999	Next
1		Valve guide	999	Next
1	03C103383R	Cylinder head gasket (metal)	999	Next
1	03C103383AM	Cylinder head gasket (metal)	999	Next
1	03C103383AE	Cylinder head gasket (metal)	999	Next
1	03C103383AH	Cylinder head gasket (metal)	999	Next
1	WHT000912	Socket head bolt with inner multipoint head M9X1,25X102	999	Next
1	D 154103A1	Sealant only for position: 100G 11	999	Next
1	D 176600A1	Silicone sealant only for position: 11	999	Next
1	03C103475BC	Cylinder head cover	999	Next
1	03C103475CD	Cylinder head cover	999	Next
1	D 176501A1	Silicon sealant	999	Next
1	N 10247504	Socket head bolt with inner multipoint head M6X65	999	Next
1	N 10300805	Socket head bolt with inner multipoint head M6X45	999	Next
1	36103111	End cap	999	Next
1		End cap not for this model	999	Next
1	N 90344501	O-ring 45X3	999	Next
1	N 10451405	Oval hexagon socket head bolt M6X16	999	Next
1		Tappets	999	Next
1		Tappets	999	Next
1		Impulse sender	999	Next
1		Vent hose not for this model	999	Next
1	03C103558G	Vent hose	999	Next
1	03C103558R	Vent hose	999	Next
1		Ball head	999	Next
1		Ball head not for this model	999	Next
1		Grommet	999	Next
1		Grommet not for this model	999	Next
1		Cover for intake manifold	999	Next
1		Cover for intake manifold	999	Next
1	03C103196	O-ring	999	Next
1		Non-return valve no replacement part included in position: 21A	999	Next

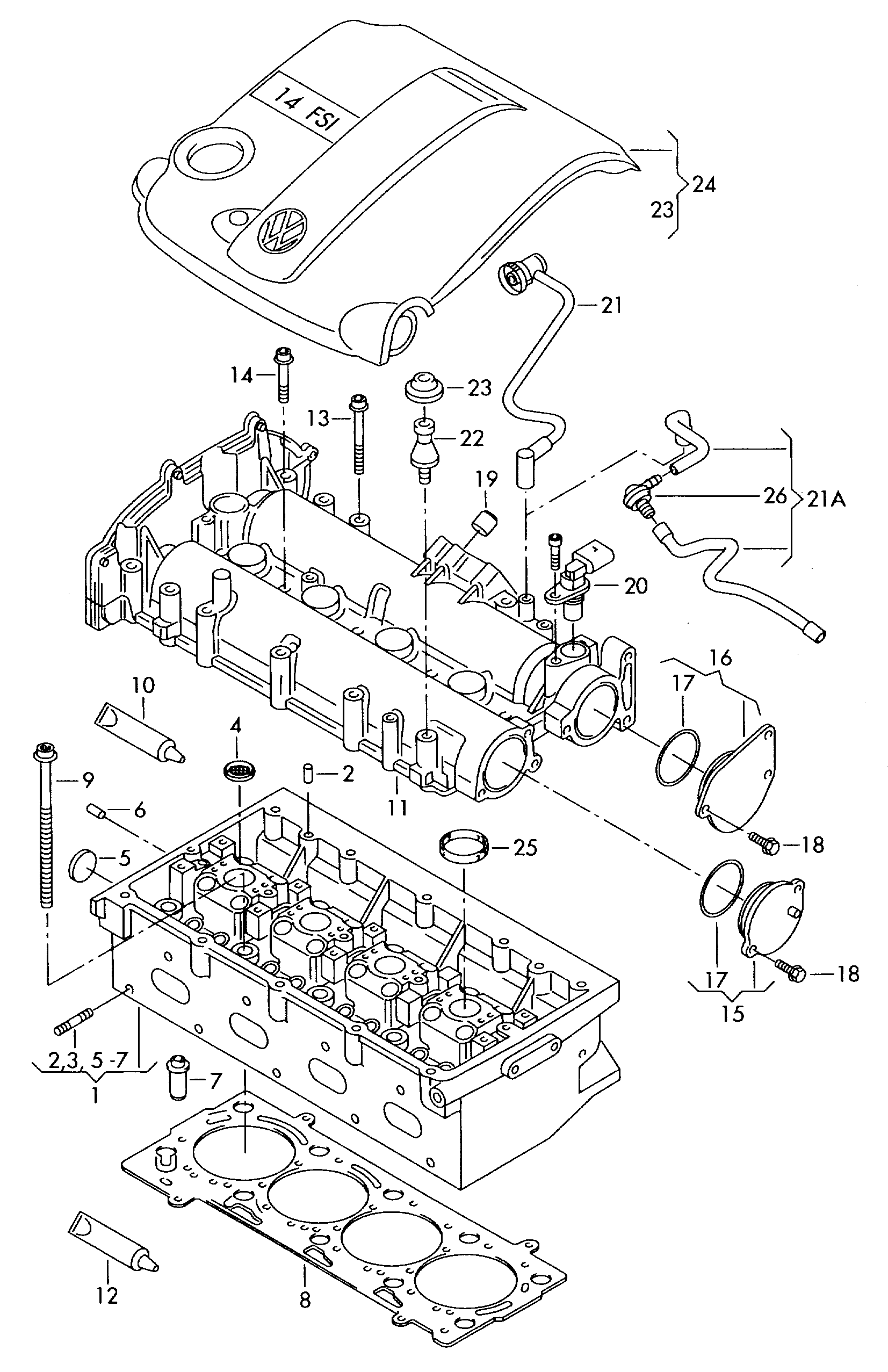

Scheme Cylinder head, cylinder head cover, cover for intake manifold 1.4ltr. petr. engine Volkswagen Tiguan 2010-2017 EUR
