Cylinder head, cylinder head cover 2.0 ltr. petr. engine Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	06H103064M	Complete cylinder head (without camshaft)	999	Next
1	06H103064AE	Complete cylinder head (without camshaft)	999	Next
1	06H103064MX	Complete cylinder head (without camshaft)	999	Next
1	06H103903 X	Complete cylinder head (without camshaft)	999	Next
1	06H103264 X	Complete cylinder head (without camshaft)	999	Next
1	06D103251	Dowel pin 8X32	999	Next
1	N 10554005	Round hd. screw M6X35	999	Next
1	06H103175B	Non-return valve	999	Next
1	036103113A	End cap 36,6	999	Next
1	06B103113C	End cap 26	999	Next
1	D 000600A2	Locking fluid	999	Next
1	N 0145555	Threaded pin M8X44	999	Next
1	06F103397	Threaded pin M8X56	999	Next
1	06H103411B	Partition	999	Next
1	D 154103A1	Sealant 100G	999	Next
1	06D103377	Washer	999	Next
1	06D103385D	Socket head bolt with inner multipoint head (kombi)	999	Next
1	N 10156206	Oval hexagon socket head bolt M6X30	999	Next
1	06H103383AD	Cylinder head gasket	999	Next
1	06C103485P	End cap	999	Next
1	036115111B	Seal	999	Next
1	06H103555C	Guard plate	999	Next
1	06H103144J	Bracket	999	Next
1	N 91000101	O-ring 52X3	999	Next
1	WHT007212	O-ring 52X3	999	Next
1	N 10470703	Round hd. screw M6X50	999	Next
1	WHT003336	Washer 6,2X33X4	999	Next
1	N 91096701	Oval hexagon socket head bolt M6X16	999	Next
1	06H103269H	Cover	999	Next
1	06J103831	Hexagon socket oval head bolt with guide sleeve	999	Next
1	06J103831A	Decoupling element	999	Next
1	06H103483C	Seal	999	Next
1	06H103483D	Seal	999	Next
1	06J109259A	Magnet	999	Next
1	06L109259A	Magnet also use: 4H0973702A	999	Next
1	4H0973702A	Flat contact housing	999	Next
1	N 10196103	Socket head bolt with inner multipoint head (kombi) M6X18	999	Next
1	06H103495E	Oil separator	999	Next
1	06H103495AC	Oil separator	999	Next
1	06H103495H	Oil separator	999	Next
1	06H103495AD	Oil separator	999	Next
1	06H103484A	Seal M8X56	999	Next
1	N 10725401	Hexagon socket head collared bolt, thread forming M6X20	999	Next
1	06H115418P	Bungs	999	Next
1	06J115418A	Bungs	999	Next
1	N 90987102	O-ring 14X3	999	Next
1	WHT002511	Ball pin	999	Next

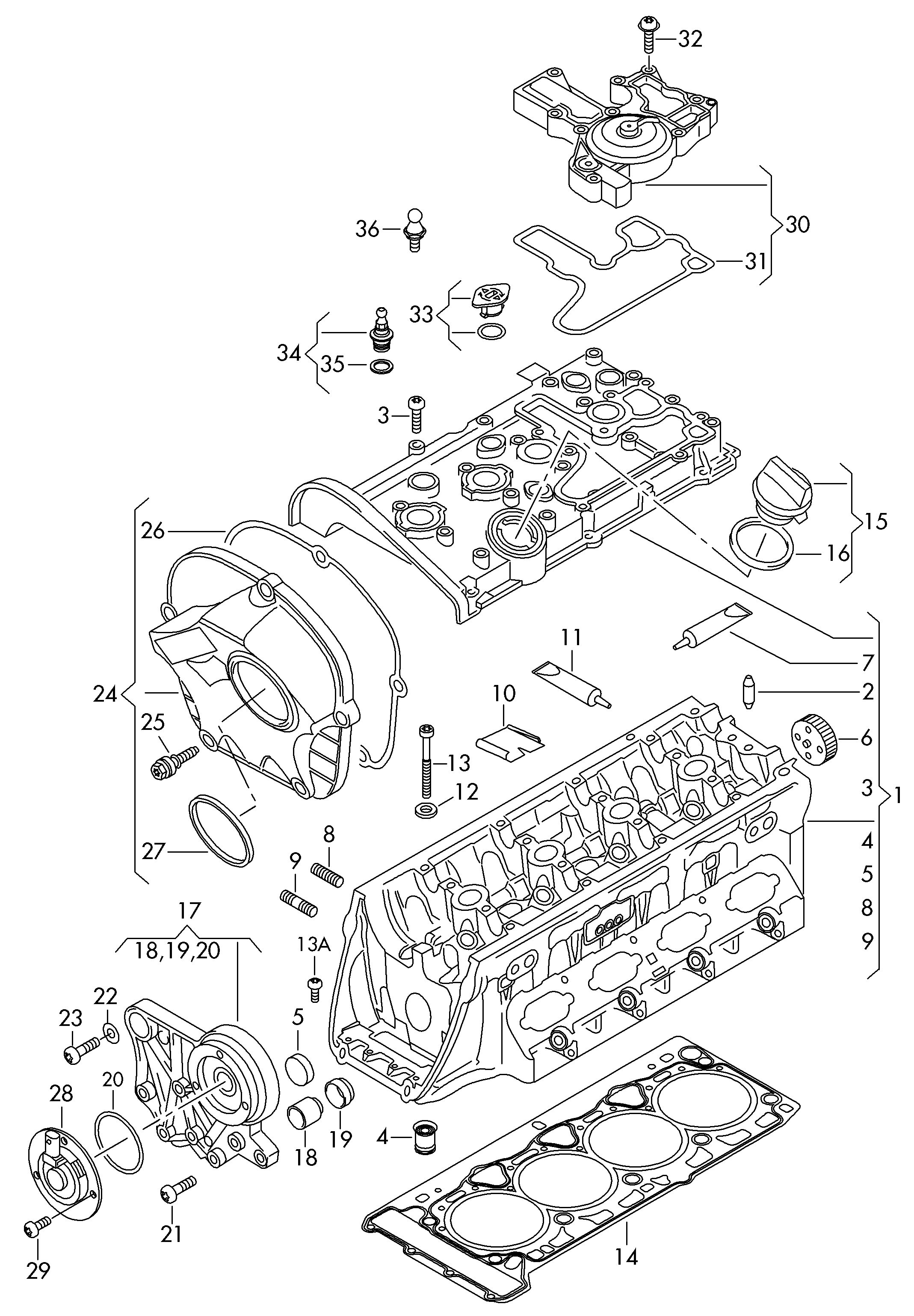

Scheme Cylinder head, cylinder head cover 2.0 ltr. petr. engine Volkswagen Tiguan 2010-2017 EUR
