Cylinder head, cylinder head cover 2.0 ltr. diesel eng.+, CFFD, CFFA, CLJA, CFFB, CFGB, CFGC Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	03L103351H	Cylinder head	999	Next
1	03L103351F	Cylinder head	999	Next
1	03L103265D	Cylinder head with valves and camshaft, without injector nozzles	999	Next
1	03L103265DX	Cylinder head with valves and camshaft, without injector nozzles	999	Next
1	N 10205604	Hexagon head bolt (combi) M6X32	999	Next
1	N 01191410	End cap 24	999	Next
1	D 176501A1	Silicon sealant	999	Next
1	03L103113A	End cap	999	Next
1	06D103251	Dowel pin 8X32	999	Next
1	N 90188902	Threaded pin M8X35	999	Next
1	N 90281802	Seal bolt (combination) M10X1X10	999	Next
1	03L103085	Shaft oil seal (shaft rotation: to right) 47X10X32	999	Next
1	WHT002131	Socket head bolt M12X137	999	Next
1	N 90115701	Washer 12,5X23X4,5	999	Next
1	03L103383BM	Cylinder head gasket 1,55MM	999	Next
1	03L103383BN	Cylinder head gasket 1,63MM	999	Next
1	03L103383BP	Cylinder head gasket 1,71MM	999	Next
1		Injector unit	999	Next
1		Tensioning plate	999	Next
1	03L103487	O-ring	999	Next
1		Cylinder fitting screw with inner multipoint head	999	Next
1	03L103469R	Cylinder head cover	999	Next
1	03L103483C	Seal	999	Next
1	03L103831	Hexagon socket flat head bolt with guide sleeve	999	Next
1	57103826	Guide sleeve	999	Next
1		Socket head bolt with inner multipoint head	999	Next
1	06C103485P	End cap	999	Next
1	036115111B	Seal	999	Next
1	03L103070	O-ring	999	Next
1	04L103070B	O-ring	999	Next
1		Bracket	999	Next
1		Suspension lug	999	Next
1	03L103493AE	Breather line	999	Next
1		Vacuum hose	999	Next

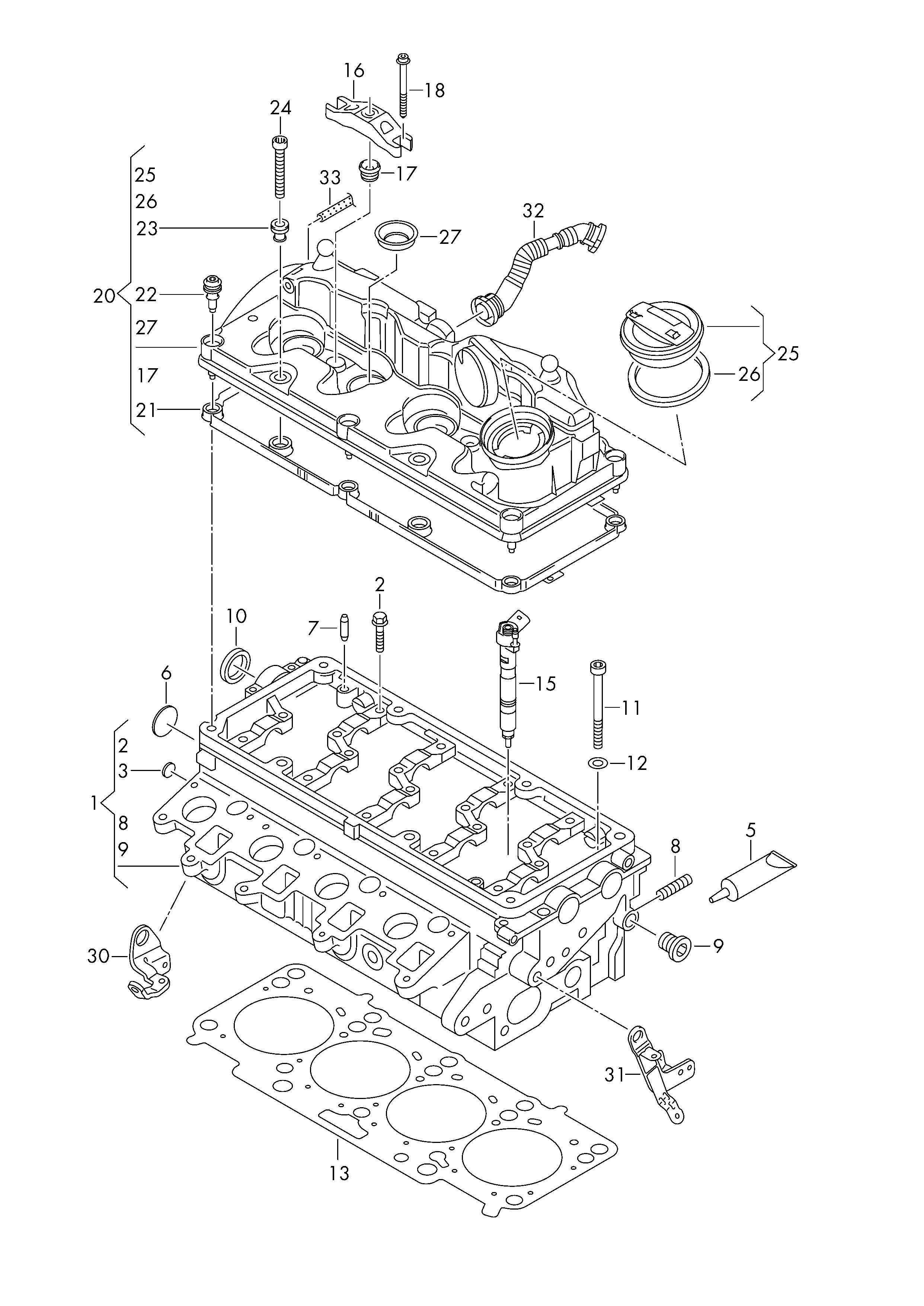

Scheme Cylinder head, cylinder head cover 2.0 ltr. diesel eng.+, CFFD, CFFA, CLJA, CFFB, CFGB, CFGC Volkswagen Tiguan 2010-2017 EUR
