Cylinder head, cylinder head cover 2.0 ltr. diesel eng.+, CBAA, CBAB, CBAC, CBBB Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	03L103351J	Cylinder head	999	Next
1	03L103351A	Cylinder head	999	Next
1	03L103265X	Cylinder head with valves and camshaft, without injector nozzles	999	Next
2	N10205604	Hexagon head bolt (combi) M6X32	999	Next
3	N91164201	Threaded stud M6X50	999	Next
4	N90446502	Hexagon collar nut M6	999	Next
5	D176501A1	Silicon sealant	999	Next
6	03L103113A	End cap	999	Next
7	06D103251	Dowel pin	999	Next
8	N90188902	Threaded pin M8X35	999	Next
9	N90281802	Seal bolt (combination) M10X1X10	999	Next
10	038103085C	Shaft oil seal (shaft rotation: to right), before 28.09.2009 47X10X32	999	Next
10	03L103085	Shaft oil seal (shaft rotation: to right), D 28.09.2009 and after 47X10X32	999	Next
11	WHT002131	Socket head bolt M12X137	999	Next
12	N90115701	Washer 12,5X23X4,5	999	Next
13	03L103383AQ	Cylinder head gasket 1,55MM	999	Next
13	03L103383	Cylinder head gasket 1,55MM	999	Next
13	03L103383AR	Cylinder head gasket 1,63MM	999	Next
13	03L103383A	Cylinder head gasket 1,63MM	999	Next
13	03L103383AS	Cylinder head gasket 1,71MM	999	Next
13	03L103383B	Cylinder head gasket 1,71MM	999	Next
15		Injector unit	999	Next
16		Tensioning plate	999	Next
17	N90446502	Hexagon collar nut M6	999	Next
20	03L103469K	Cylinder head cover, before 06.04.2009	999	Next
20	03L103469	Cylinder head cover	999	Next
-	03L130235S	Return line	999	Next
21	03L103483	Seal	999	Next
22	06B103831J	Hexagon socket flat head bolt with guide sleeve	999	Next
22	06B103831E	Hexagon socket flat head bolt with guide sleeve	999	Next
23	057103831B	Decoupling element	999	Next
24		Socket head bolt with inner hex round head	999	Next
25	03L129969D	Heat shield	999	Next
26	N10555702	Hexagon socket flat head bolt 4X8	999	Next
27	06C103485P	End cap	999	Next
28	036115111B	Seal	999	Next
29	03L103113	End cap	999	Next
30	N90427502	Socket head bolt with hexagon socket head (combination) M5X12	999	Next
31		Bracket	999	Next
32		Suspension lug	999	Next
33	03L103493	Breather line	999	Next
34		Vacuum hose	999	Next

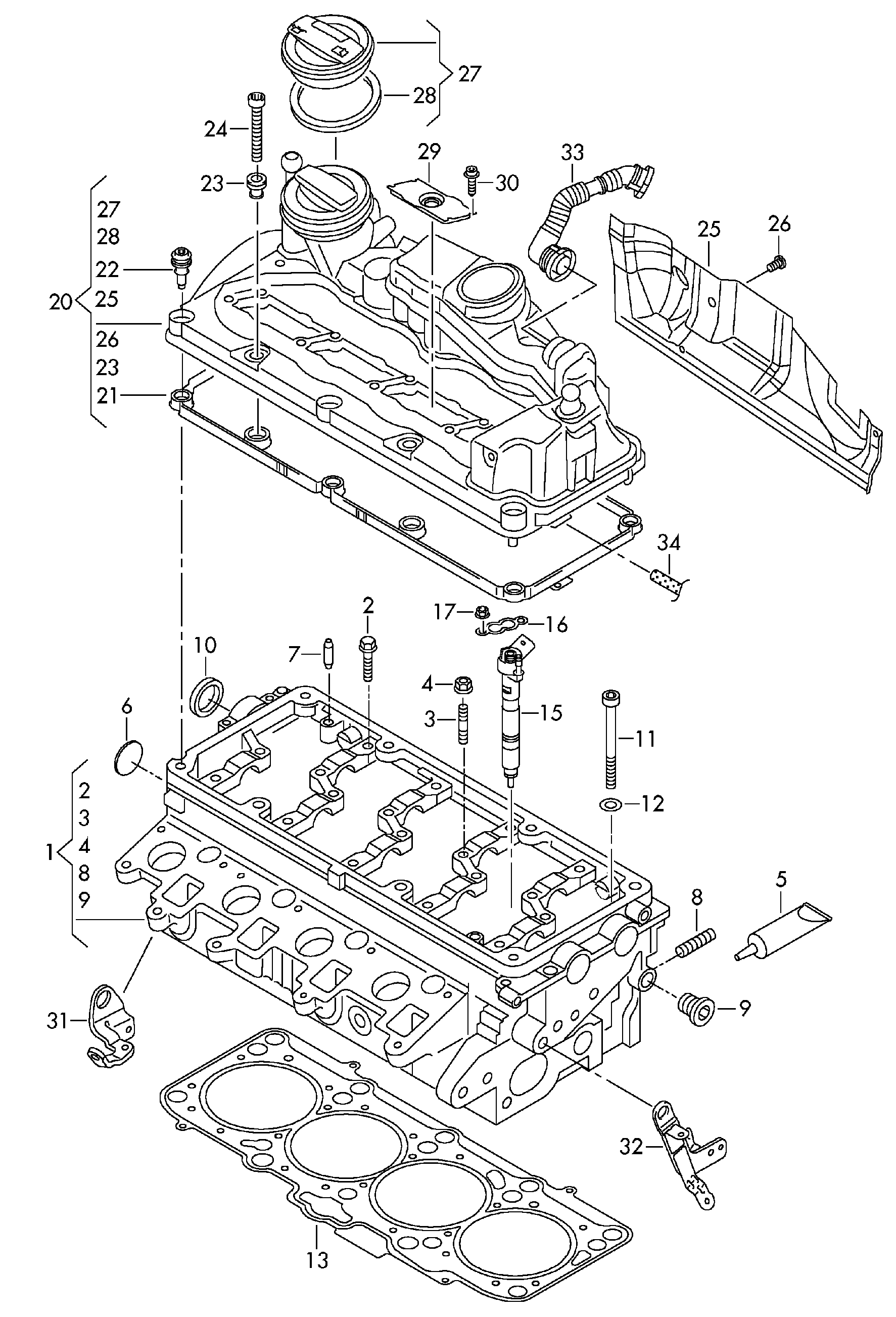

Scheme Cylinder head, cylinder head cover 2.0 ltr. diesel eng.+, CBAA, CBAB, CBAC, CBBB Volkswagen Passat CC Coupe 2009-2012 EUR
