Cylinder head, cylinder head cover 2.0 ltr. 4-cylinder Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	06H103064M	Complete cylinder head (without camshaft)	999	Next
1	06H103063M	Complete cylinder head	999	Next
1	06H103064MX	Complete cylinder head (without camshaft)	999	Next
1	06H103064F	Complete cylinder head (without camshaft)	999	Next
1	06H103064FX	Complete cylinder head (without camshaft)	999	Next
1	06H103063MX	Complete cylinder head	999	Next
2	06D103251	Dowel pin	999	Next
3	N10554005	Round hd. screw M6X35	999	Next
4	06H103175B	Non-return valve	999	Next
5	036103113A	End cap 36,6	999	Next
6	06B103113C	End cap 26	999	Next
7	D000600A2	Locking fluid	999	Next
8	N0145555	Threaded pin M8X44	999	Next
9	06F103397	Threaded pin M8X56	999	Next
10	06H103411B	Partition	999	Next
11	D154103A1	Sealant 100G	999	Next
12	06D103377	Washer	999	Next
13	06D103385D	Socket head bolt with inner multipoint head (kombi)	999	Next
13A	N10156206	Oval hexagon socket head bolt M6X30	999	Next
14	06H103383AD	Cylinder head gasket	999	Next
14	06H103383AC	Cylinder head gasket	999	Next
14	06H103383AA	Cylinder head gasket	999	Next
15	06C103485P	End cap	999	Next
16	036115111B	Seal	999	Next
17	06H103144F	Bracket, before 15.06.2009	999	Next
17	06H103144H	Bracket, before 06.11.2009	999	Next
17	06H103144J	Bracket	999	Next
20	N91000101	O-ring 52X3	999	Next
21	N10470703	Round hd. screw M6X50	999	Next
22	WHT003336	Washer 6,2X33X4	999	Next
23	N91096701	Oval hexagon socket head bolt M6X16	999	Next
24	06H103269H	Cover	999	Next
25	06J103831	Hexagon socket oval head bolt with guide sleeve	999	Next
25	06J103831A	Decoupling element	999	Next
26	06H103483C	Seal	999	Next
27	06H103483D	Seal	999	Next
28	06J109259A	Magnet	999	Next
28	06H109259C	Magnet	999	Next
29	N10196103	Socket head bolt with inner multipoint head (kombi) M6X18	999	Next
30	06H103495E	Oil separator	999	Next
30	06H103495E	Oil separator, before 13.06.2010	999	Next
30	06H103495H	Oil separator, D 14.06.2010 and after	999	Next
31	06H103484A	Seal M8X56	999	Next
32	N10725401	Hexagon socket head collared bolt, thread forming M6X20	999	Next
33	06H115418P	Bungs	999	Next
34	06J115418A	Bungs	999	Next
35	N90987102	O-ring 14X3	999	Next
36	WHT002511	Ball pin	999	Next

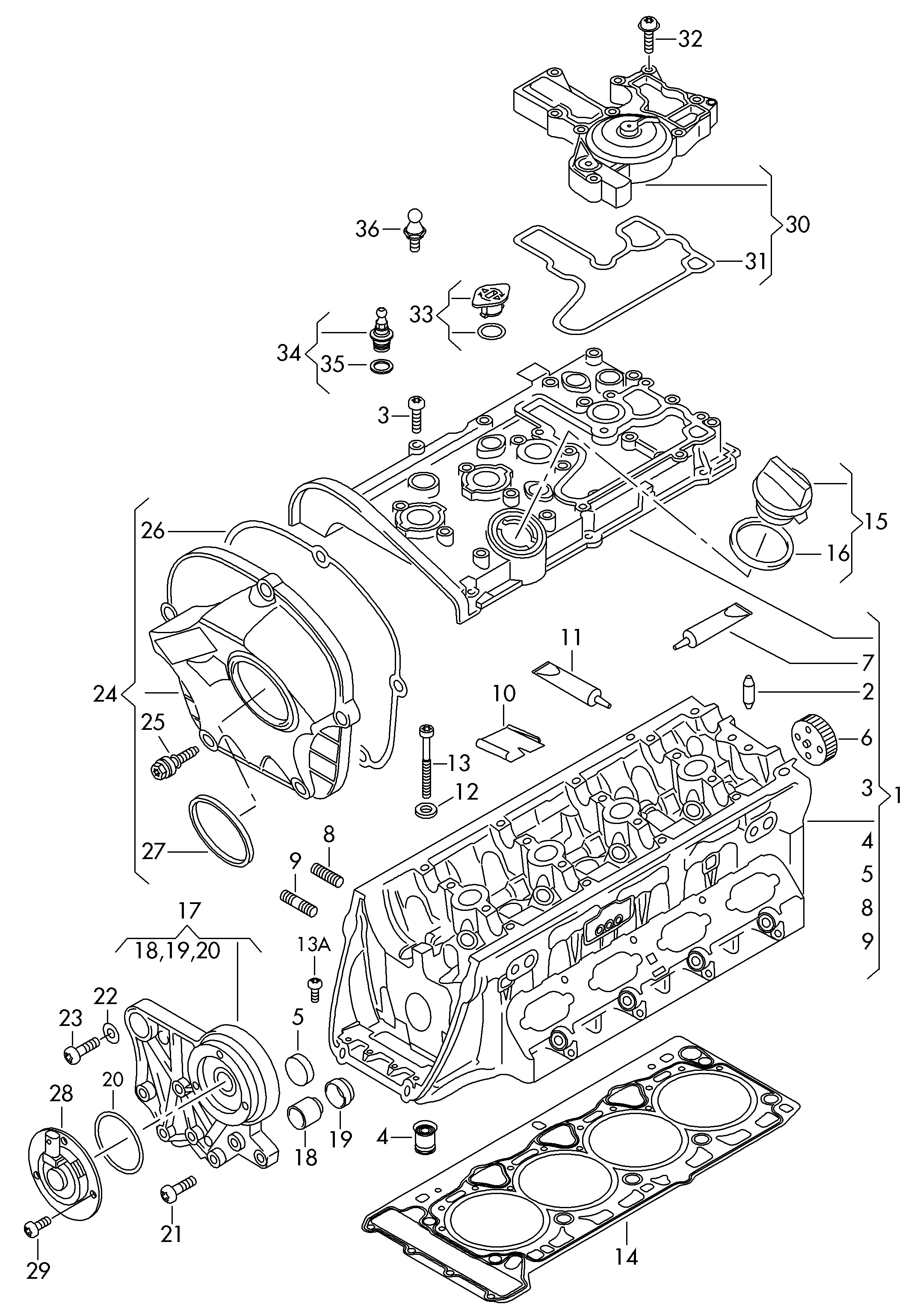

Scheme Cylinder head, cylinder head cover 2.0 ltr. 4-cylinder Volkswagen Passat CC Coupe 2009-2012 EUR
