Cylinder head, cylinder head cover 1.8ltr. 4-cylinder Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	06H103064A	Complete cylinder head (without camshaft), before MJ 2009	999	Next
1	06H103063K	Complete cylinder head, before MJ 2009	999	Next
1	06H103064K	Complete cylinder head (without camshaft), D MJ 2010 and after	999	Next
1	06H103064AX	Complete cylinder head (without camshaft), before MJ 2009	999	Next
1	06H103063KX	Complete cylinder head, before MJ 2009	999	Next
1	06H103064KX	Complete cylinder head (without camshaft), D MJ 2010 and after	999	Next
2	06H103269H	Cover	999	Next
2	06H103269C	Cover	999	Next
3	036103113A	End cap 36,6	999	Next
4	06B103113C	End cap 26	999	Next
5	06H103175B	Non-return valve	999	Next
6		Vent hose not for this model	999	Next
7	06D103251	Dowel pin	999	Next
8	06H103411B	Partition	999	Next
9	06D103377	Washer	999	Next
10	06H103383AD	Cylinder head gasket	999	Next
10	06H103383AC	Cylinder head gasket	999	Next
10	06H103383AA	Cylinder head gasket	999	Next
11	06D103385D	Socket head bolt with inner multipoint head (kombi)	999	Next
11A	N10156206	Oval hexagon socket head bolt M6X30	999	Next
12	06C103485P	End cap	999	Next
13	06F103397	Threaded pin M8X56	999	Next
15	06H103484A	Seal M8X56	999	Next
16	06H103495E	Oil separator	999	Next
16	06H103495A	Oil separator	999	Next
17	N10725401	Hexagon socket head collared bolt, thread forming M6X20	999	Next
18	06J103831	Hexagon socket oval head bolt with guide sleeve	999	Next
19	06H103483C	Seal	999	Next
20	06H103483D	Seal	999	Next
21	036115111B	Seal	999	Next
22	N0145555	Threaded pin M8X44	999	Next
23	N10554005	Round hd. screw M6X35	999	Next
24	06J109259A	Magnet	999	Next
24	06H109259A	Magnet	999	Next
25		Seal	999	Next
27	06H103144F	Bracket, before 15.06.2009	999	Next
27	06H103144H	Bracket, before 06.11.2009	999	Next
27	06H103144J	Bracket	999	Next
29	N91000101	O-ring 52X3	999	Next
-	D000600A2	Locking fluid	999	Next
31	D154103A1	Sealant 100G	999	Next
32	N10470703	Round hd. screw M6X50	999	Next
33	N91073301	Hexagon socket flat head bolt M6X12	999	Next
34	WHT003336	Washer 6,2X33X4	999	Next
35	N10196103	Socket head bolt with inner multipoint head (kombi) M6X18	999	Next
36	06H115418P	Bungs	999	Next
37	06J115418A	Bungs	999	Next
38	N90987102	O-ring 14X3	999	Next
39	WHT002511	Ball pin	999	Next

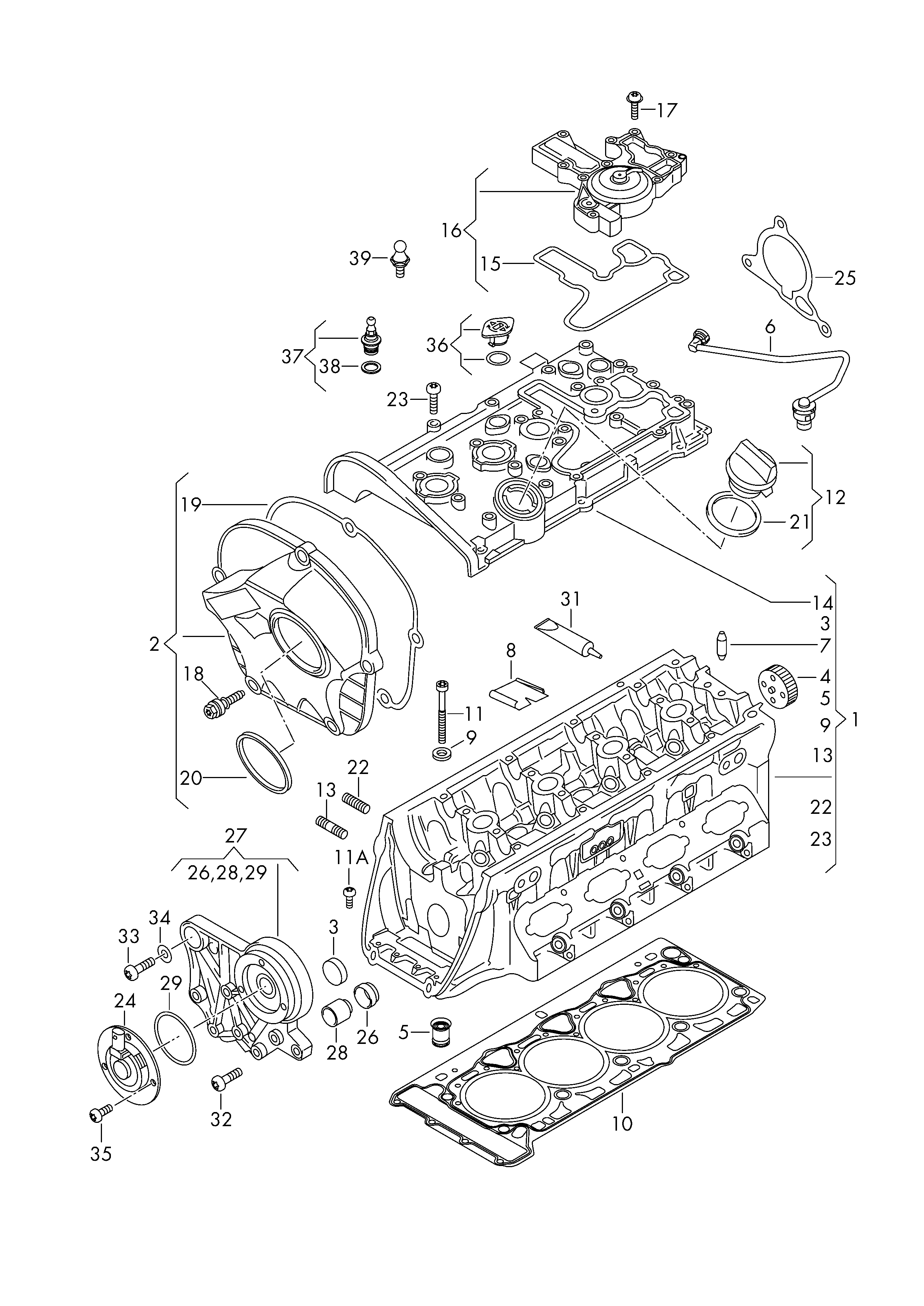

Scheme Cylinder head, cylinder head cover 1.8ltr. 4-cylinder Volkswagen Passat CC Coupe 2009-2012 EUR
