Cylinder head, cylinder head cover 1.6ltr. diesel eng.+, CAYB, CAYC Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	03L103351B	Cylinder head	999	Next
1	03L103265AX	Cylinder head with valves and camshaft, without injector nozzles	999	Next
2	N10205604	Hexagon head bolt (combi) M6X32	999	Next
3	N01191410	End cap 24	999	Next
5	D176501A1	Silicon sealant	999	Next
6	03L103113A	End cap	999	Next
7	06D103251	Dowel pin 8X32	999	Next
8	N90188902	Threaded pin M8X35	999	Next
9	N90281802	Seal bolt (combination) M10X1X10	999	Next
10	03L103085	Shaft oil seal (shaft rotation: to right) 47X10X32	999	Next
11	WHT002131	Socket head bolt M12X137	999	Next
12	N90115701	Washer 12,5X23X4,5	999	Next
13	03L103383J	Cylinder head gasket 1,55MM	999	Next
13	03L103383BT	Cylinder head gasket 1,55	999	Next
13	03L103383K	Cylinder head gasket 1,63MM	999	Next
13	03L103383CA	Cylinder head gasket 1,63	999	Next
13	03L103383L	Cylinder head gasket 1,71MM	999	Next
13	03L103383CB	Cylinder head gasket 1,71	999	Next
15		Injector unit 130-030,12	999	Next
16		Tensioning plate 130-030,15	999	Next
17	03L103487	O-ring	999	Next
17	03L103487A	O-ring	999	Next
18		Socket head bolt with inner multipoint head M6X70,2	999	Next
20	03L103469R	Cylinder head cover	999	Next
21	03L103483C	Seal	999	Next
21	03L103483H	Seal	999	Next
22	03L103831	Hexagon socket flat head bolt with guide sleeve	999	Next
23	57103826	Guide sleeve	999	Next
24		Socket head bolt with inner hex round head 130-030,11	999	Next
25	06C103485P	End cap	999	Next
26	036115111B	Seal	999	Next
27	03L103070	O-ring 03L 103 469 R 03L 103 475 R	999	Next
27	03L103070A	O-ring 03L 103 469 H 03L 103 475 H 03L 103 469 AB 03L 103 475 AB	999	Next
30		Bracket 103-080,8	999	Next
31		Suspension lug 103-080,11	999	Next
32	03L103493AE	Breather line	999	Next
32	03L103493G	Breather line	999	Next
33		Vacuum hose 131-040,30	999	Next

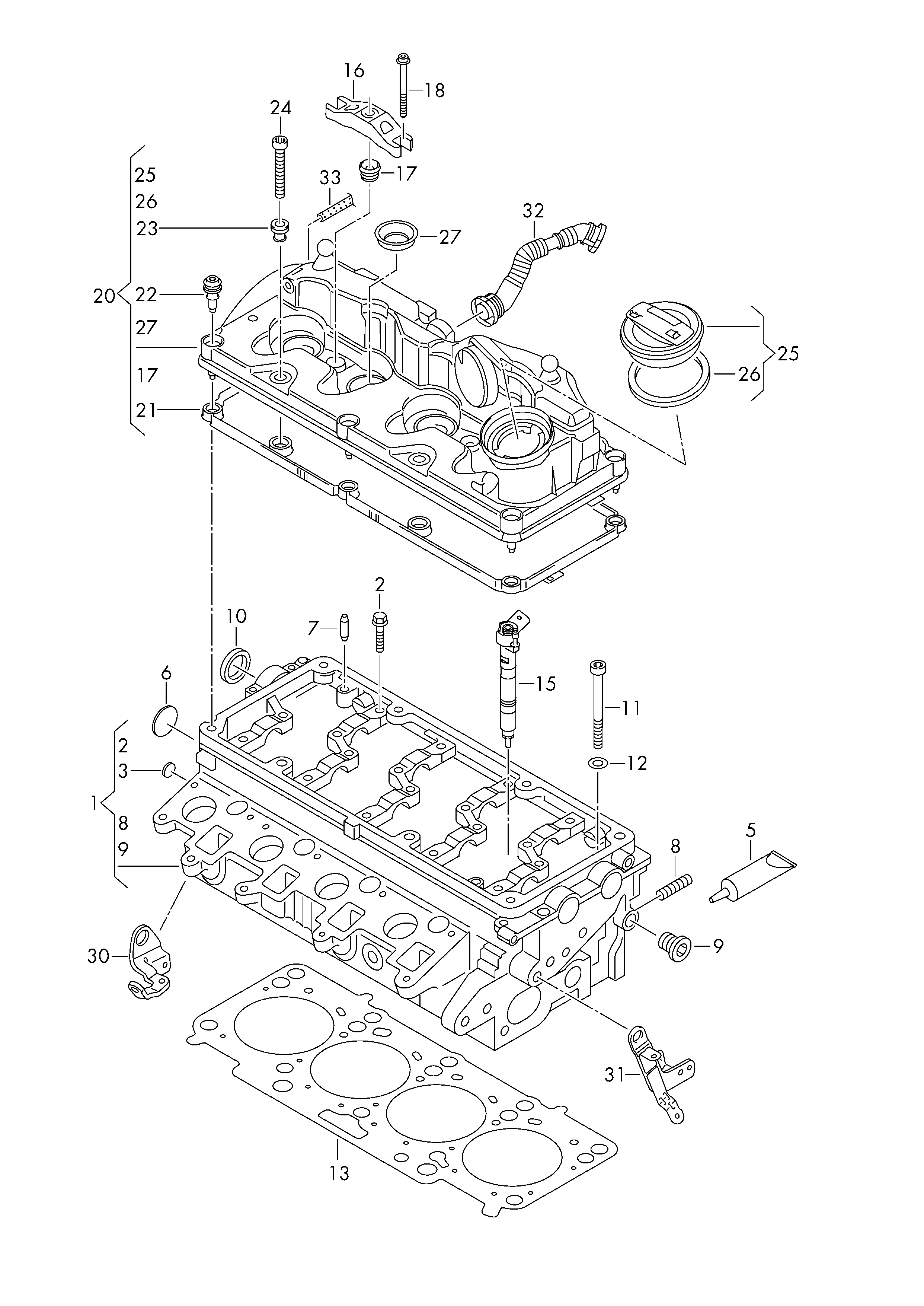

Scheme Cylinder head, cylinder head cover 1.6ltr. diesel eng.+, CAYB, CAYC Volkswagen Golf Plus 2012-2014 EUR
