Cylinder head, cylinder head cover 1.4ltr. petrol eng.+, CZDA, CZDB Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	04E103064F	Cylinder head with valves	999	Next
1	04E103064FX	Cylinder head with valves	999	Next
1	N 01190110	End cap 20	999	Next
1	N 01190110	End cap 20	999	Next
1	N 01191410	End cap 24	999	Next
1	N 10087802	Threaded pin M8X25	999	Next
1		Oil strainer not for this model	999	Next
1	04E103383AM	Cylinder head gasket	999	Next
1	WHT007089	Socket head collared bolt with inner multipoint head M9X140X88	999	Next
1	26103139	Cylinder pin 6X20	999	Next
1	04E103483H	Seal	999	Next
1	04E103469CS	Cylinder-head cover with camshaft	999	Next
1	04E103085AF	Shaft oil seal 36X46X7	999	Next
1		Operating valve	999	Next
1	WHT000355	Ball screw M6	999	Next
1	N 91165001	Hexagon socket flat head bolt M6X52	999	Next
1	04E103485A	End cap	999	Next
1	04E103560	Air hose	999	Next
1	04E103175	Non-return valve	999	Next
1	N 91097401	Hexagon socket flat head bolt M6X65	999	Next
1	36103111	End cap	999	Next
1	N 90344501	O-ring 45X3	999	Next
1	N 91096701	Oval hexagon socket head bolt M6X16	999	Next
1		Toothed belt	999	Next
1	04E109111M	Toothed belt pulley	999	Next
1	N 91145502	Multi-point socket head bolt with collar M8X35	999	Next
1	04C109121C	Toothed belt guard	999	Next
1	N 91096701	Oval hexagon socket head bolt M6X16	999	Next
1		Impulse sender	999	Next
1	04E103085AC	Shaft oil seal 24X39X8	999	Next

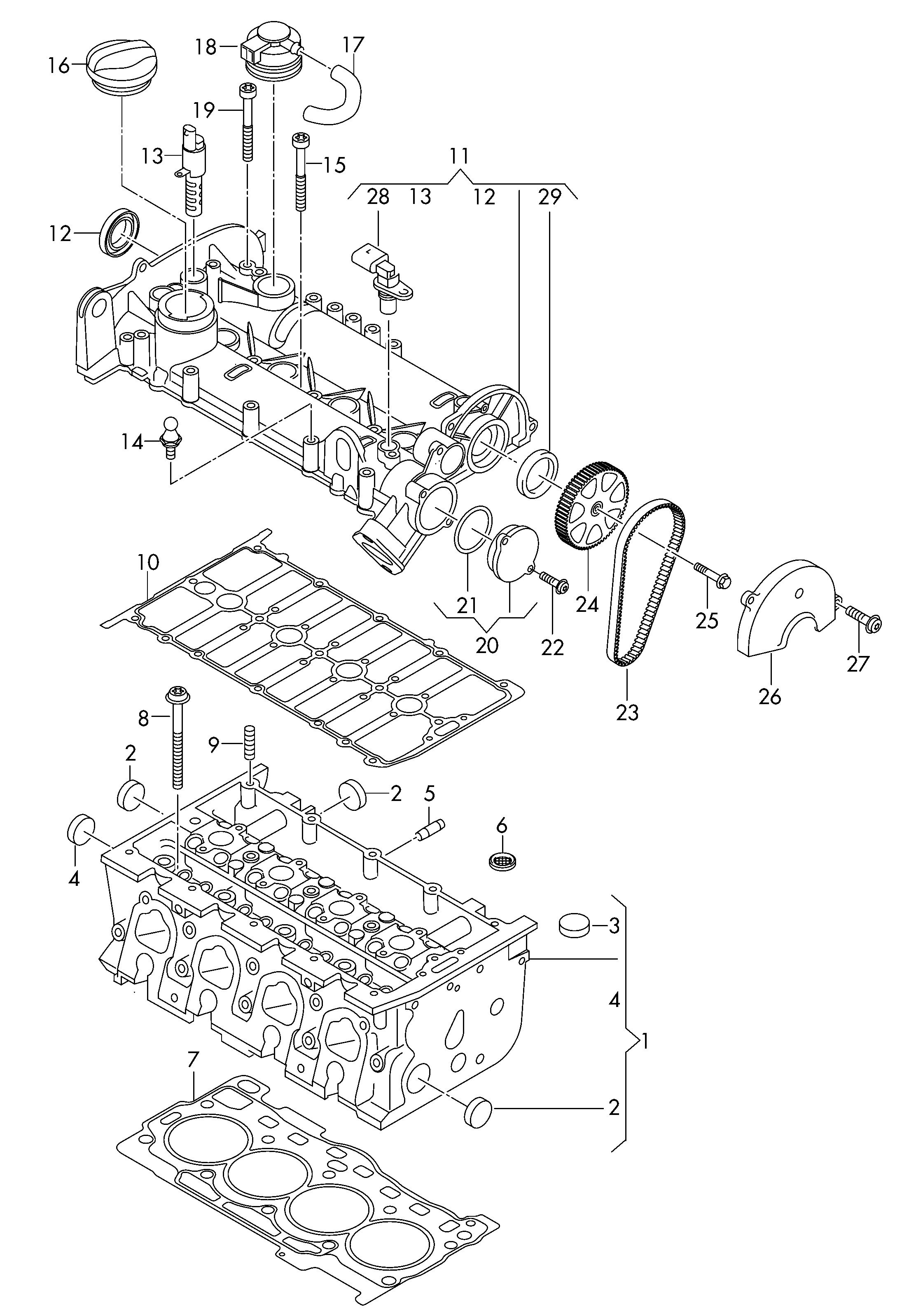

Scheme Cylinder head, cylinder head cover 1.4ltr. petrol eng.+, CZDA, CZDB Volkswagen Tiguan 2010-2017 EUR
