Cylinder head, cylinder head cover 1.2 ltr. petrol eng.+, CBZA, CBZB Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	03F103351A	Cylinder head	999	Next
1	03F103264X	Cylinder head with valves	999	Next
2	N0132102	Cylinder pin 6X16	999	Next
3	WHT004984	Threaded pin M8X25	999	Next
4	03F103383E	Cylinder head gasket (metal)	999	Next
5	WHT004790	Socket head bolt with inner multipoint head M9X168X93	999	Next
6	N91103401	Seal bolt with sealing ring M10X1X10	999	Next
8	03F103473P	Cylinder head cover	999	Next
9	N0132102	Cylinder pin 6X16	999	Next
10	N10156206	Oval hexagon socket head bolt M6X30	999	Next
11	03F103483A	Seal 100G	999	Next
12	N10745801	Hexagon collar bolt with socket head M6X52	999	Next
13	03C103485B	End cap	999	Next
13	04E103485A	End cap	999	Next
14	06A103483D	Seal	999	Next
15	03F103277A	Cover	999	Next
15	03F103277B	Cover	999	Next
16	D176501A1	Silicon sealant	999	Next
17	N91096901	Round hd. screw M6X22	999	Next
18	03F103175A	Non-return valve	999	Next
19	N10748001	Hexagon socket head collared bolt, thread forming 6X16	999	Next
20	03F103493	Vent hose	999	Next
20	03F103493A	Vent hose	999	Next
21	030103175B	Valve	999	Next
21		Valve 133-020,19	999	Next
22	03F103560	Vent hose	999	Next
23	03F103560C	Vent hose	999	Next
24	03F103638	Grommet	999	Next
25	03F103935	Cover TSI	999	Next

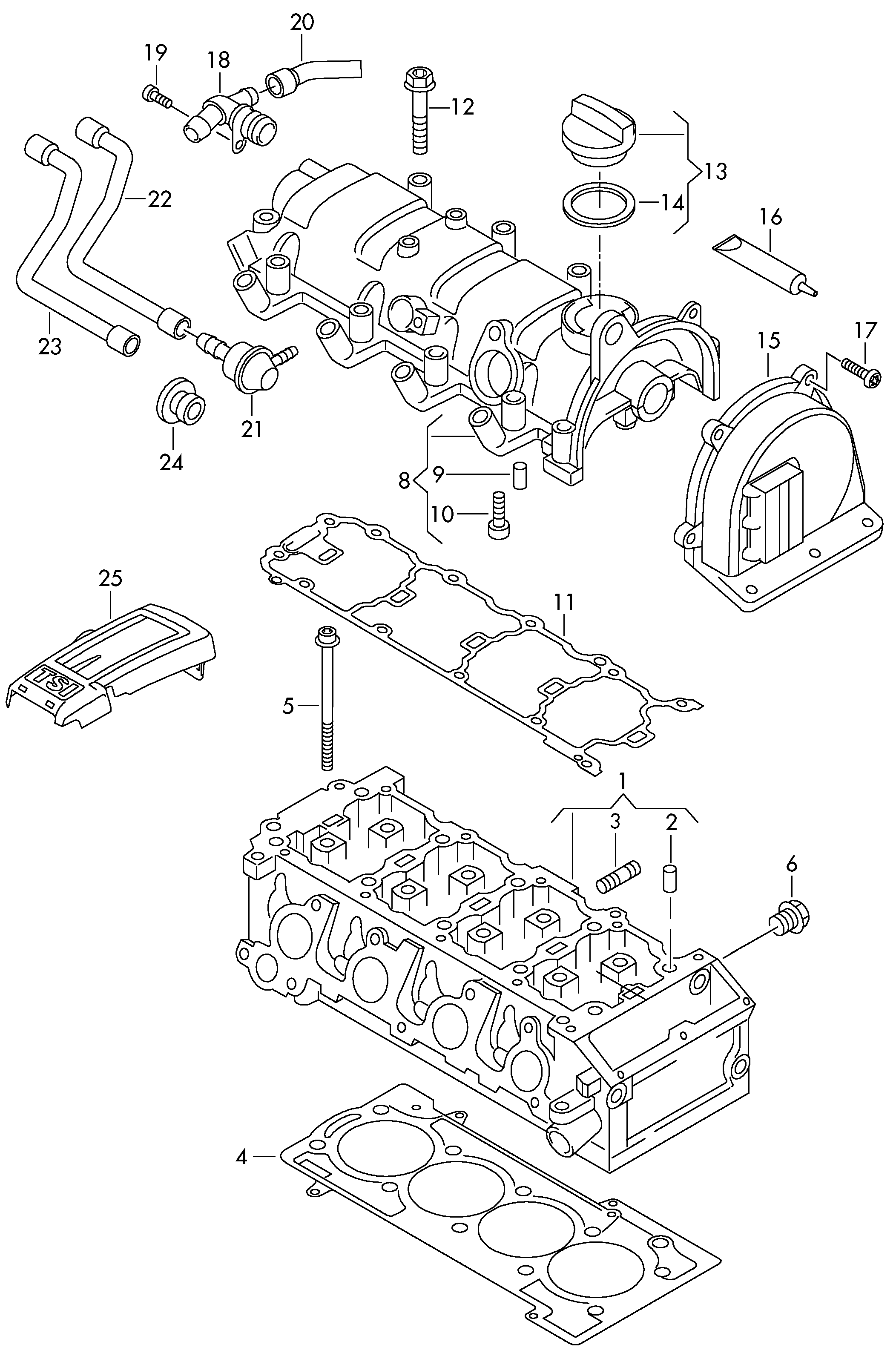

Scheme Cylinder head, cylinder head cover 1.2 ltr. petrol eng.+, CBZA, CBZB Volkswagen Golf Plus 2012-2014 EUR
