Cylinder block with pistons, crankshaft and bearings, oil sump 1.4ltr. petrol eng.+, CGGA Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	036103101BH	Cylinder block with pistons crankshaft and bearings	999	Next
1	036103101BK	Cylinder block with pistons crankshaft and bearings	999	Next
2		Hexagon bolt no replacement part	999	Next
3	036103113A	End cap 36,6	999	Next
3	36103113	End cap 42,1	999	Next
4	N0119096	End cap 22	999	Next
4	03C103113	End cap 25	999	Next
5	26103139	Cylinder pin 6X20	999	Next
6		Shaft oil seal	999	Next
7		Oil pump	999	Next
10		Seal	999	Next
11		Hexagon bolt	999	Next
12		Washer included in position: 11, 16, 20	999	Next
13	036103171B	Sealing flange with sealing ring and trigger wheel	999	Next
14		O-ring included in position: 13	999	Next
16	N90842402	Hexagon head bolt (combi) M6X22	999	Next
17	N90617501	O-ring 60X4	999	Next
18	36103677	O-ring	999	Next
19	036103464AK	Oil separator	999	Next
20	N10432603	Socket head bolt with inner multipoint head M6X32	999	Next
21	036103601AC	Engine oil sump	999	Next
21A	036103601AM	Engine oil sump with opening for oil level sensor	999	Next
22		O-ring included in position: 23	999	Next
23	N90813202	Seal bolt with sealing ring M14X1,5X22	999	Next
24	N10248003	Socket head bolt with inner multipoint head M6X14	999	Next
25	D176600A1	Silicone sealant	999	Next
26		Spacer plate not for this model	999	Next
26A	036103551AA	Spacer plate	999	Next
27	N0432072	Cylinder pin 8X14	999	Next
28		Vent hose not for this model	999	Next
28A	036103493EC	Vent hose	999	Next
30		Dowel sleeve	999	Next
31		Threaded union	999	Next
32	030103037D	Bungs	999	Next
33		Oil level sensor	999	Next
34		Heater pipe	999	Next

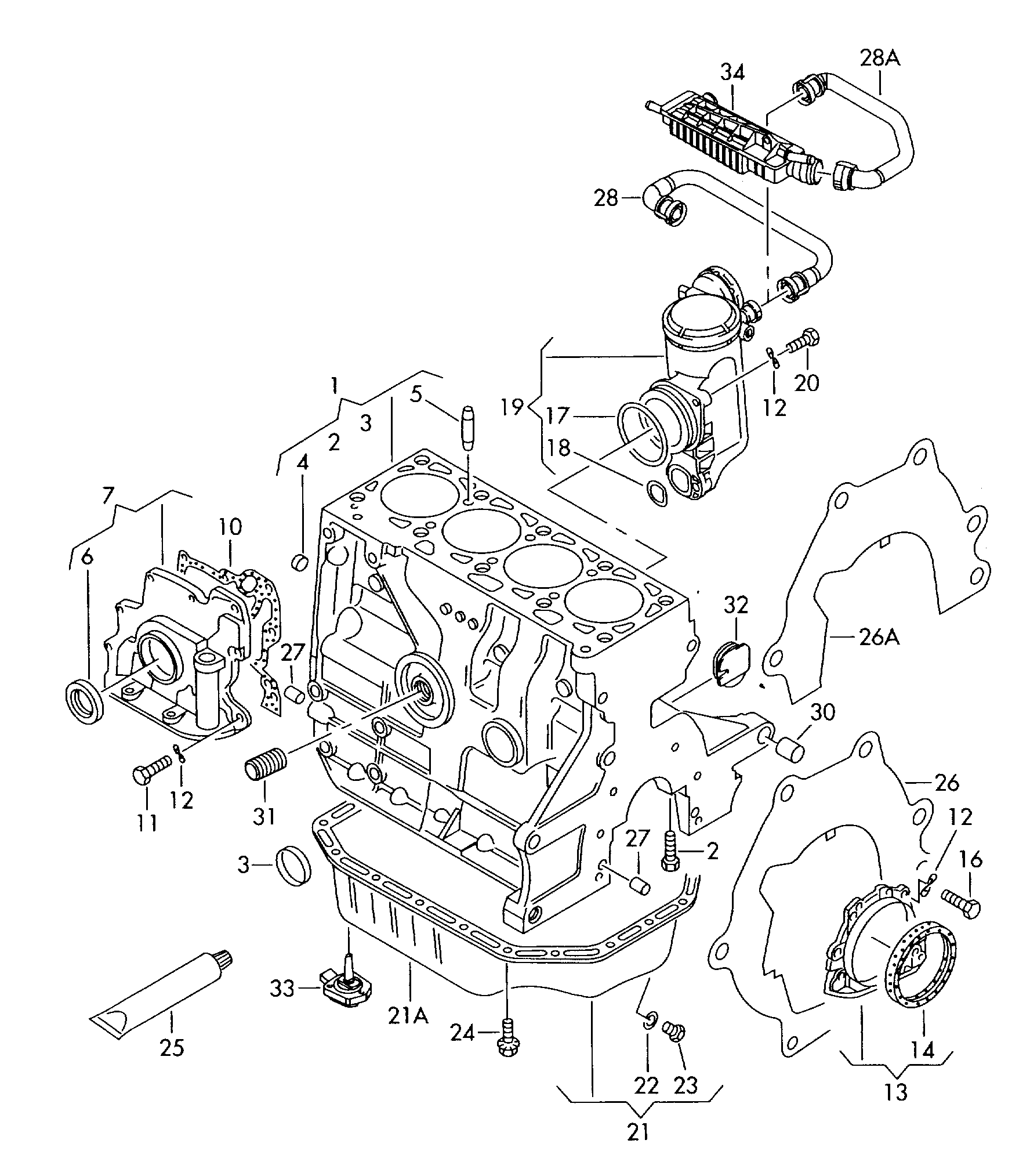

Scheme Cylinder block with pistons, crankshaft and bearings, oil sump 1.4ltr. petrol eng.+, CGGA Volkswagen Golf Plus 2012-2014 EUR
