Cylinder block with pistons, crankshaft and bearings, oil sump 1.2 ltr. petrol eng.+, CBZA, CBZB Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	03F103101	Cylinder block with pistons, crankshaft and bearings	999	Next
1	03F103101B	Cylinder block with pistons, crankshaft and bearings	999	Next
2	N0119096	End cap 22	999	Next
3	N0119096	End cap 22	999	Next
3	03C103113	End cap 25	999	Next
4	36103113	End cap 42,1	999	Next
5	N10218603	End cap 15	999	Next
6	03C103143	Dowel sleeve 13,2X13	999	Next
7	03F103156A	Non-return valve	999	Next
8	N0432072	Cylinder pin 8X14	999	Next
9	N90856005	Sealing plug M14X1,5X17	999	Next
10	03C103157A	Oil spray jet M10	999	Next
11	036103171B	Sealing flange with sealing ring and trigger wheel	999	Next
12	N90842402	Hexagon head bolt (combi) M6X22	999	Next
13	03F109210D	Timing case	999	Next
13	03F109210C	Timing case	999	Next
14	038103085C	Shaft oil seal (shaft rotation: to right) 47X10X32	999	Next
15	D176501A1	Silicon sealant	999	Next
16	N10734501	12 point socket (combi.) M6X20	999	Next
17	N10734401	12 point socket (combi.) M6X40	999	Next
18	03C103601BK	Engine oil sump	999	Next
19	N90813202	Seal bolt with sealing ring M14X1,5X22	999	Next
21	D176600A1	Silicone sealant	999	Next
22	N10248003	Socket head bolt with inner multipoint head M6X14	999	Next
23	03F103464C	Oil separator	999	Next
23	03F103464D	Oil separator	999	Next
24	N90737803	Hexagon socket flat head bolt M6X14	999	Next
25	N10470703	Round hd. screw M6X50	999	Next
26	03C103551L	Spacer plate	999	Next
27	022103139B	Dowel sleeve	999	Next

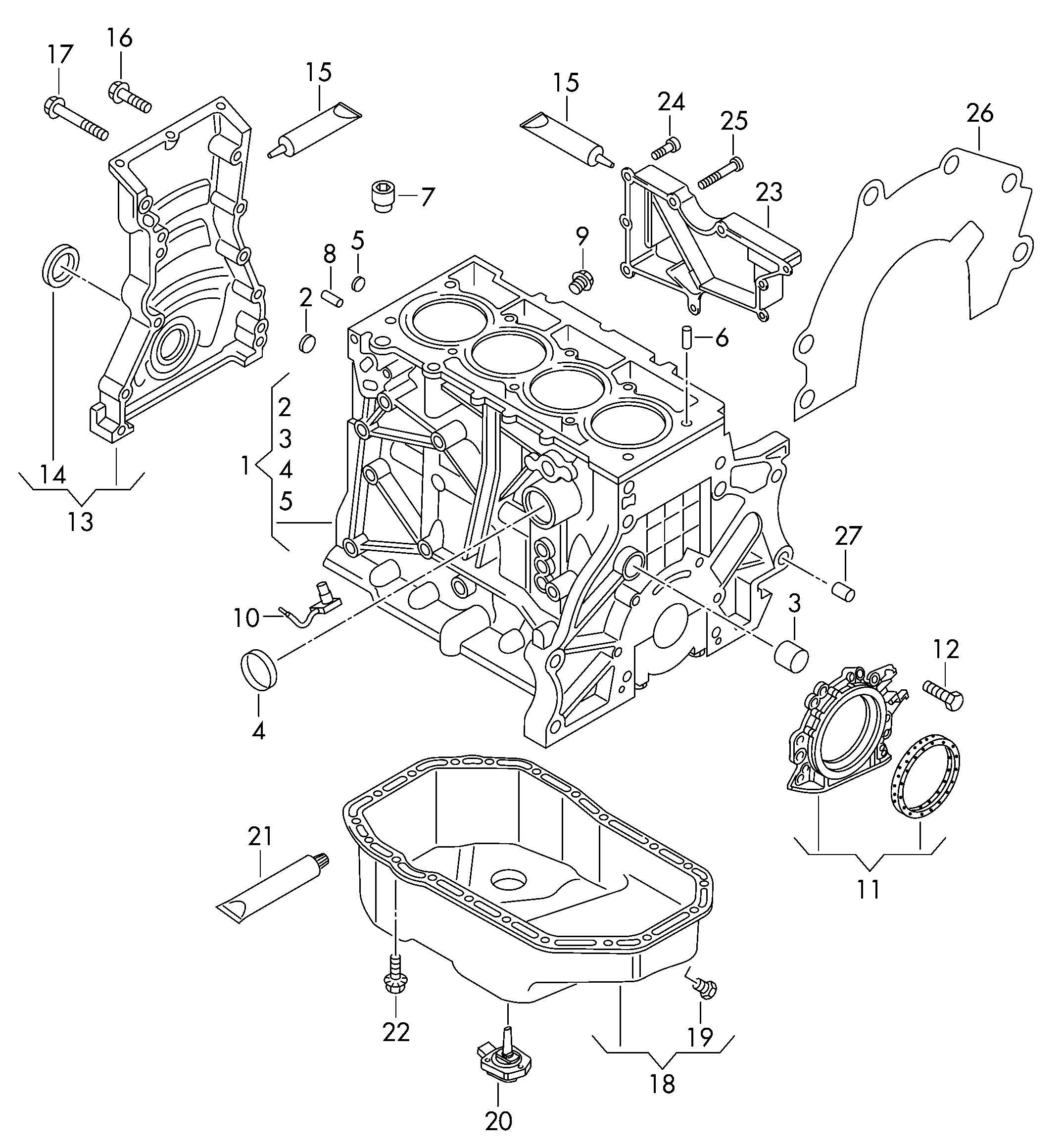

Scheme Cylinder block with pistons, crankshaft and bearings, oil sump 1.2 ltr. petrol eng.+, CBZA, CBZB Volkswagen Golf Plus 2012-2014 EUR
