Cross panel front Volkswagen Polo 2013-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	6RG803147	Cross panel with scuttle	999	Next
1A	800981	Sheet metal plate 200X1500X0,8	999	Next
1A	000800981A	Sheet metal plate 300X1500X0,8	999	Next
1A	000800981B	Sheet metal plate 500X1500X0,8	999	Next
1A	000800981C	Sheet metal plate 800X1500X0,8	999	Next
2	4D0000294A	Frame	999	Next
2A	3D0000289	Holder for vehicle chassis number plate	999	Next
3	6R0805261A	Water box	999	Next
4	6R0805275A	Cover plate for plenum chamber	999	Next
4	6R0805275B	Cover plate for plenum chamber	999	Next
4	6R0805275A	Cover plate for plenum chamber	999	Next
5	6Q0805811	Rip plate on front cross panel	999	Next
5	6Q0805811A	Rip plate on front cross panel	999	Next
4	6R0805275A	Cover plate for plenum chamber	999	Next
5	6Q0805811	Rip plate on front cross panel	999	Next
6	6Q0805812	Rip plate on front cross panel	999	Next
6	6Q0805812A	Rip plate on front cross panel	999	Next
9	6RG802167	Frame for cross panel	999	Next
10	6RG802165	Frame for cross panel	999	Next
11	6R0802125A	A-pillar	999	Next
11	6R0802126A	A-pillar	999	Next
13	6R0803661A	Crash member	999	Next
13	6R0803662A	Crash member	999	Next
15	6RG804011A	Cross panel	999	Next
15	6RG804011B	Cross panel	999	Next
16	6R0806311A	Filler plate	999	Next
16	6R0806312A	Filler plate	999	Next
17	6R0806411A	Filler plate	999	Next
17	6R0806412A	Filler plate	999	Next
18	6R0806599A	Junction plate	999	Next
18	6R0806600A	Junction plate	999	Next
20	6R0857021A	Securing bracket	999	Next
23	N90471802	Hexagon bolt M8X18	999	Next
30	DH009100	1k window adhesive 300ML	999	Next
31	N91166401	Oval hexagon socket head bolt M6X14	999	Next
32	N91139001	Double stud with hexagon drive M6, 5X16	999	Next

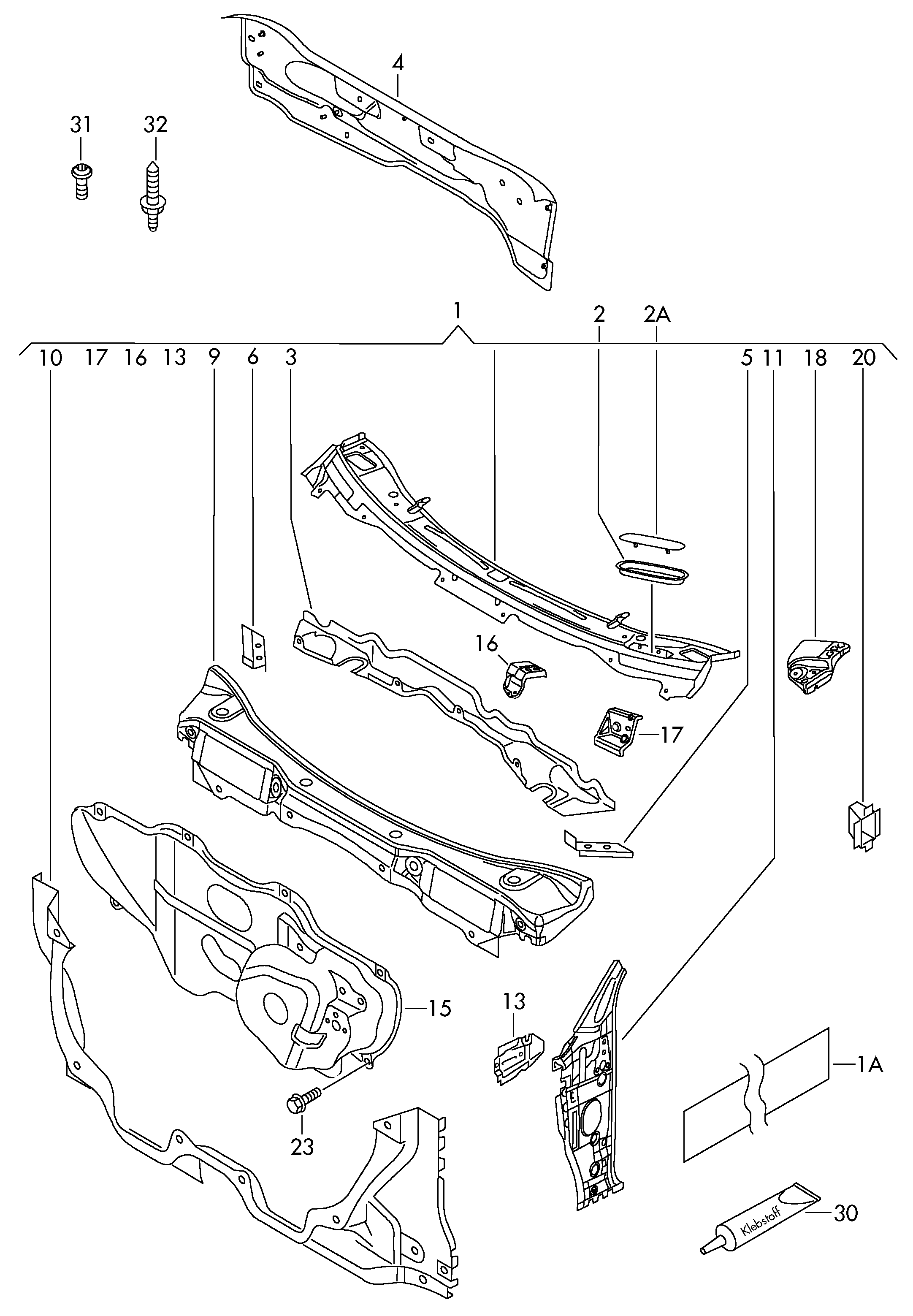

Scheme Cross panel front Volkswagen Polo 2013-2017 EUR
