Cross member for dash panel, dashboard Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	5N1858045G	Cross member for dash panel	999	Next
1	1K2858045S	Cross member for dash panel	999	Next
1	5M2858505A	Retaining plate (passenger side)	999	Next
1	N 91053201	Speed nut M5X16,6X17,3	999	Next
1	N 90698801	Speed nut 4,2X16X12	999	Next
1	5M2858506A	Retaining plate (drivers side)	999	Next
1	5M2858692A	Retaining bracket (drivers side)	999	Next
1	5M2858691D	Retaining bracket (passenger side)	999	Next
1		Speed nut use item: 12	999	Next
1	5M2858784C	Brace (drivers side)	999	Next
1	5M2858573C	Retaining bracket (passenger side)	999	Next
1	5M2858783D	Brace (passenger side)	999	Next
1	N 10601202	Hexagon bolt M8X94X80	999	Next
1	N 90959902	Hex collared bolt M8X85	999	Next
1	N 91079901	Hex collared bolt M6X20	999	Next
1	N 91033301	Hexagon head bolt (combi) M8X22	999	Next
1	N 90930503	Multi-point socket head bolt with collar M8X24	999	Next
1	N 10604402	Hex collared bolt M8X65	999	Next
1	5N2858697	Brace	999	Next
1	1K1857021D	Bracket for cross member (drivers side)	999	Next
1	1K2857022D	Bracket for cross member (drivers side)	999	Next
1	1K1857022D	Bracket for cross member (passenger side)	999	Next
1	1K2857021D	Bracket for cross member (passenger side)	999	Next
1	N 90761102	Hexagon collar nut M8	999	Next
1	WHT002598	Speed nut M8X16,8X76	999	Next
1	6Q0898540	1 set mounting bushes	999	Next
1	5N0857463B	Air vent windscreen	999	Next
1	5N0857463B 81U	Air vent windscreen titan black	999	Next
1		Vent	999	Next
1	1T0857047A	Threaded plate	999	Next
1	1K0857117B	Clip	999	Next
1	N 10737001	Hexagon nut, self-locking M6	999	Next
1	N 10473203	Hexagon socket oval head bolt (combi) M5X20	999	Next
1	1J0858213	Clip	999	Next
1	N 90698801	Speed nut 4,2X16X12	999	Next
1	N 91053201	Speed nut M5X16,6X17,3	999	Next
1	1T0857489	Bungs	999	Next
1	1K0419645	Securing element	999	Next
1	N 90991502	Hexagon bolt	999	Next
1	5N1857001F	Dashboard	999	Next
1	5N1857001F 6T6	Dashboard titan black	999	Next
1	5N1857001G	Dashboard no item: 31	999	Next
1	5N1857001G 6T6	Dashboard no item: 31 titan black	999	Next
1	5N1857001J	Dashboard no item: 31	999	Next
1	5N1857001J 6T6	Dashboard no item: 31 titan black	999	Next
1	5N2857001F	Dashboard	999	Next
1	5N2857001F 6T6	Dashboard titan black	999	Next
1	5N2857001G	Dashboard no item: 31	999	Next
1	5N2857001G 6T6	Dashboard no item: 31 titan black	999	Next
1	5N0857889A	Deformation element (drivers side)	999	Next
1	5N0857890	Deformation element (drivers side)	999	Next
1	5N0858801	Deformation element (passenger side)	999	Next
1	701867299E	Clip	999	Next
1	701867299E 9B9	Clip satin black	999	Next

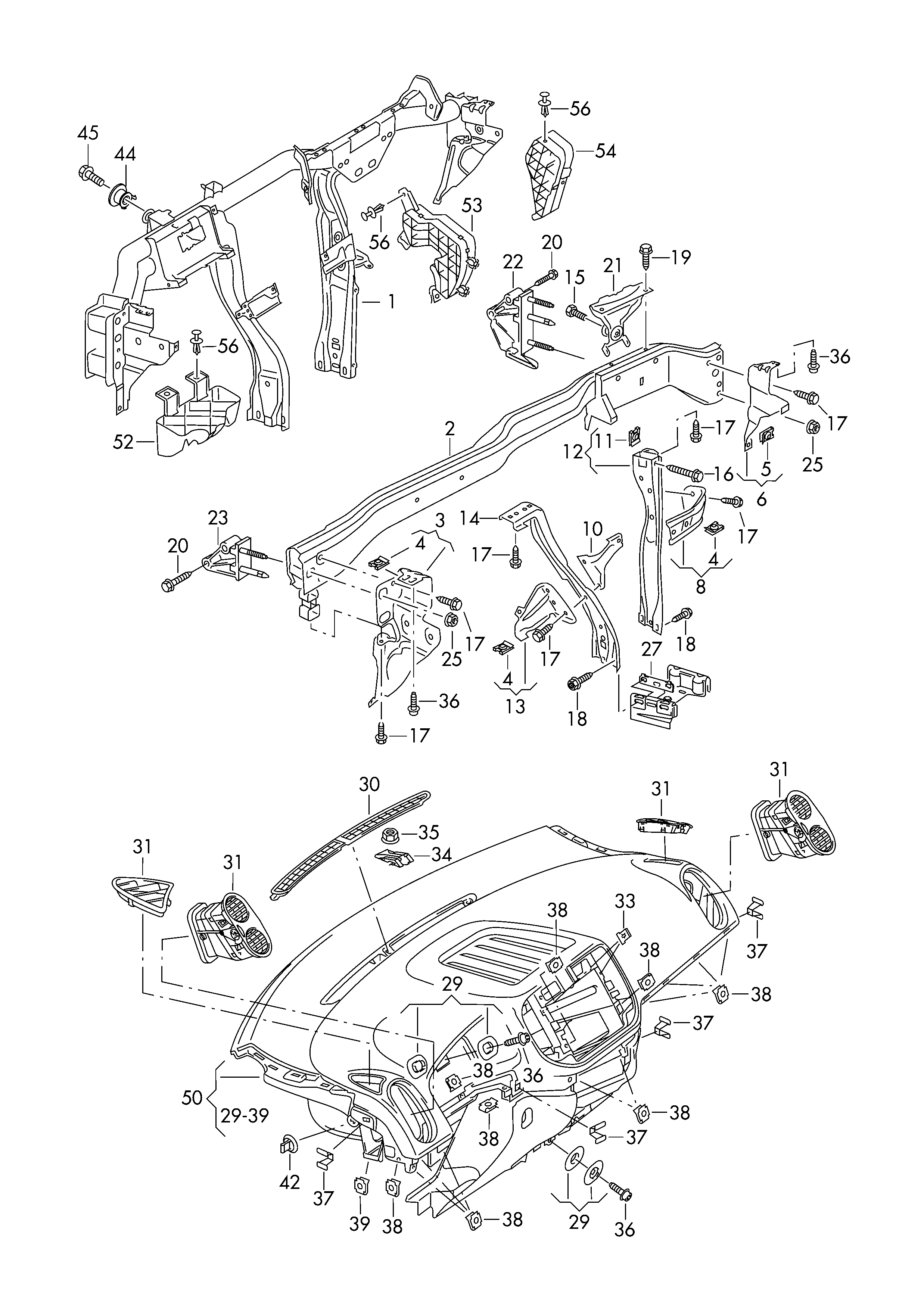

Scheme Cross member for dash panel, dashboard Volkswagen Tiguan 2010-2017 EUR
