Cross member for dash panel, dashboard Volkswagen Polo 2013-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	6RF857017D	Cross member for dash panel	999	Next
1	6RF857017DGRU	Cross member for dash panel primed	999	Next
3	N90698703	Speed nut 4,2X16X12	999	Next
5	N10653201	Hex collared bolt M6X16	999	Next
6	N90991502	Hexagon bolt M8X48	999	Next
7	6RF857194A	Support (drivers side)	999	Next
9	6R0857049	Securing element	999	Next
10	N90567202	Speed nut M8X26,6X18	999	Next
11	N91079301	Hex collared bolt M8X16	999	Next
13	N10304404	Socket head bolt with hexagon socket head (combination) M10X70	999	Next
16		Air vent for door window included in illustration, position: 880-010,1	999	Next
17		Cover for airbag	999	Next
19	6RF857003AA	Dashboard	999	Next
19	6RF857003AA82V	Dashboard titan black	999	Next
19	6RF857003AF	Dashboard	999	Next
19	6RF857003AF82V	Dashboard titan black	999	Next
19	6RG857003R	Dashboard	999	Next
19	6RG857003R82V	Dashboard titan black	999	Next
20		Air vent for door window	999	Next
21	70103733	Clip	999	Next
21	6R0857138	Fastening clip	999	Next
22	N90698801	Speed nut 4,2X16X12	999	Next
23	1K0867388A	Clip	999	Next
24	6Q0898540	1 set mounting bushes	999	Next
25	6R0857117	Clip	999	Next
27	N90698606	Hexagon socket head panel bolt 4,2X16	999	Next
30		Dummy cover sun sensor	999	Next

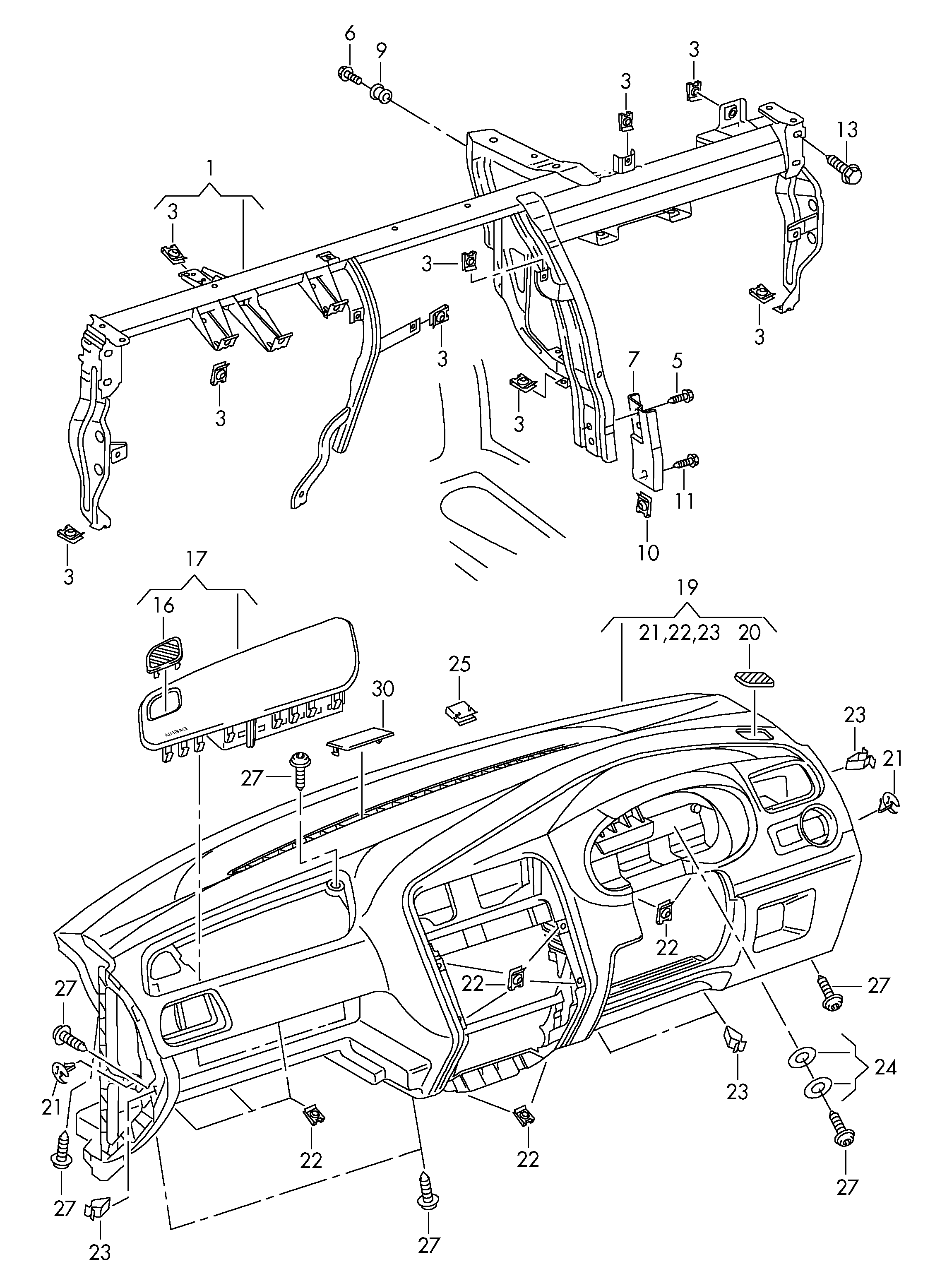

Scheme Cross member for dash panel, dashboard Volkswagen Polo 2013-2017 EUR
