Crankshaft, conrod, bearings 1.6ltr. petrol engine+, CLSA Volkswagen Polo 2013-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	03C105101BJ	Crankshaft	999	Next
2	03C105209AC	Chain sprocket Z=18/18	999	Next
3	03C105159H	Bush	999	Next
4	03D105255D	Pulley	999	Next
5	N91048601	12 point socket (combi.) M14X1,5X100	999	Next
6	N90903201	O-ring 19X2	999	Next
9	038105327B	Clutch plate	999	Next
10	56105303	Compensation washer 1,2	999	Next
11	51105301	Washer 0,5	999	Next
13	N90946201	12-point head bolt M10X1X17X10	999	Next
15	036198401J	1 set: connecting rods	999	Next
16	45105425	Bolt - connecting rod M8X1X44	999	Next
17		Bush - connecting rod included in position: 15	999	Next
18	WHT000436	Thrust washer	999	Next
19	036105561D	Crankshaft bearing shell	999	Next
19	036105561D007	Crankshaft bearing shell yellow	999	Next
19	036105591D	Crankshaft bearing shell	999	Next
19	036105591D007	Crankshaft bearing shell yellow	999	Next
20	036198701A	1 set: conrod bearing shells	999	Next

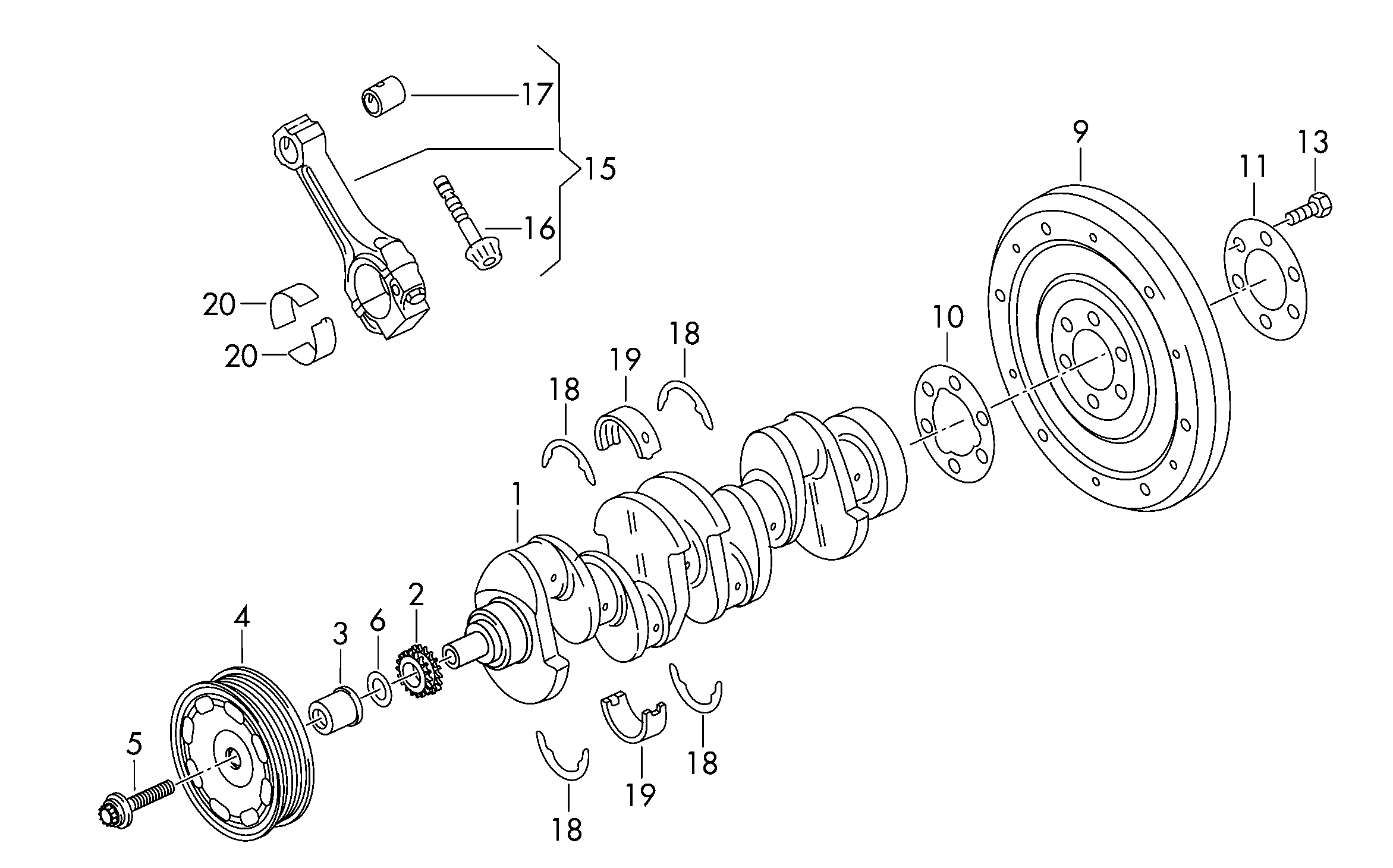

Scheme Crankshaft, conrod, bearings 1.6ltr. petrol engine+, CLSA Volkswagen Polo 2013-2017 EUR
