Crankshaft, conrod, bearings 1.6ltr. petr. engine Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	06A105021D	Crankshaft	999	Next
2	050105189B	Impulse rotor	999	Next
3	053105229A	Countersunk bolt M6X16	999	Next
4	06A105263E	Toothed belt pulley	999	Next
5	WHT005322	12-point head bolt M16X1,5X54	999	Next
6	06A105255F	Pulley	999	Next
8	N10055703	Socket head bolt with hexagon socket head (combination) M8X18	999	Next
10	03F105266B	Flywheel	999	Next
10	03F105266C	Flywheel	999	Next
10	036105269D	Flywheel	999	Next
10	036105269DX	Flywheel	999	Next
11	N0132102	Cylinder pin 6X16	999	Next
14	N90501402	Hex collared bolt M10X1X19,5	999	Next
20	06B105313D	Needle bearing - 15X21X23,6	999	Next
21	06B198401B	1 set: connecting rods	999	Next
24	050105425A	Bolt - connecting rod M8X1X43	999	Next
25		Bush - connecting rod not for this model	999	Next
26	50105637	Thrust washer	999	Next
27	50105561	Crankshaft bearing shell	999	Next
27	50105591	Crankshaft bearing shell	999	Next
28	06B198701B	1 set: conrod bearing shells	999	Next

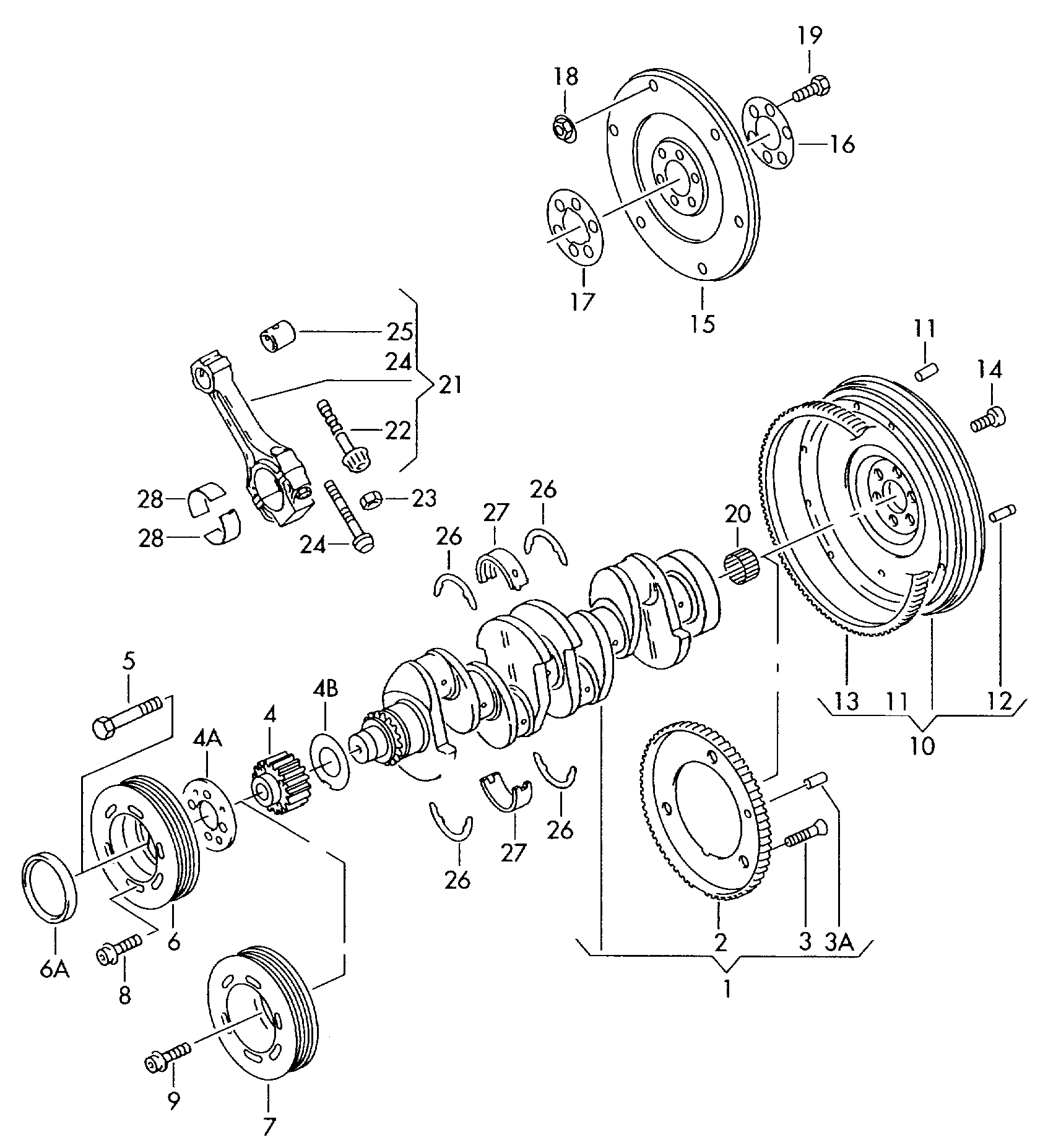

Scheme Crankshaft, conrod, bearings 1.6ltr. petr. engine Volkswagen Golf Plus 2012-2014 EUR
