Crankcase, oil sump 3.6ltr. 6-cylinder Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	03H103601J	Engine oil sump with oil level sensor, before 12.06.2011	999	Next
1	03H103601AD	Engine oil sump with oil level sensor, D 13.06.2011 and after	999	Next
2	022103498A	Bungs 30,2	999	Next
3	N90813202	Seal bolt with sealing ring M14X1,5X22	999	Next
4		Oil level sensor	999	Next
5	N10124408	Hexagon socket head bolt (combi) M6X20	999	Next
6	D176501A1	Silicon sealant sealing flange oil sump	999	Next
6	D291091A1	Cleaning solution sealing flange	999	Next
7	N90365801	Socket head bolt with inner multipoint head M10X78	999	Next
9	N10218603	End cap 15	999	Next
10	036103113A	End cap 36,6	999	Next
11	03H103141	Bungs 7,3X9,3	999	Next
12		Sealing plug	999	Next
13	71103233	Pipe union	999	Next
-	D000600A2	Locking fluid	999	Next
14	N91017001	Cylinder pin 8X18	999	Next
15	22103157	Oil spray jet	999	Next
16	022103139B	Dowel sleeve 16X13,5	999	Next
17	N90502601	Dowel sleeve 14X12	999	Next
18	03H103173	Sealing flange	999	Next
19	021103051C	Shaft oil seal 85X105X11	999	Next
20	N10116003	Hexagon head bolt (combi) M6X58	999	Next
21	N10082912	Hexagon head bolt (combi) M6X16	999	Next
22	N90355905	Socket head bolt with hexagon socket head (combination) M8X30	999	Next
23	022103151D	Sealing flange, before 12.06.2011	999	Next
23	03H103151B	Sealing flange, D 13.06.2011 and after	999	Next
23	03H103151B	Sealing flange	999	Next
23	03H103151B	Sealing flange	999	Next
24	N10029205	Oval hexagon socket head bolt M6X15	999	Next

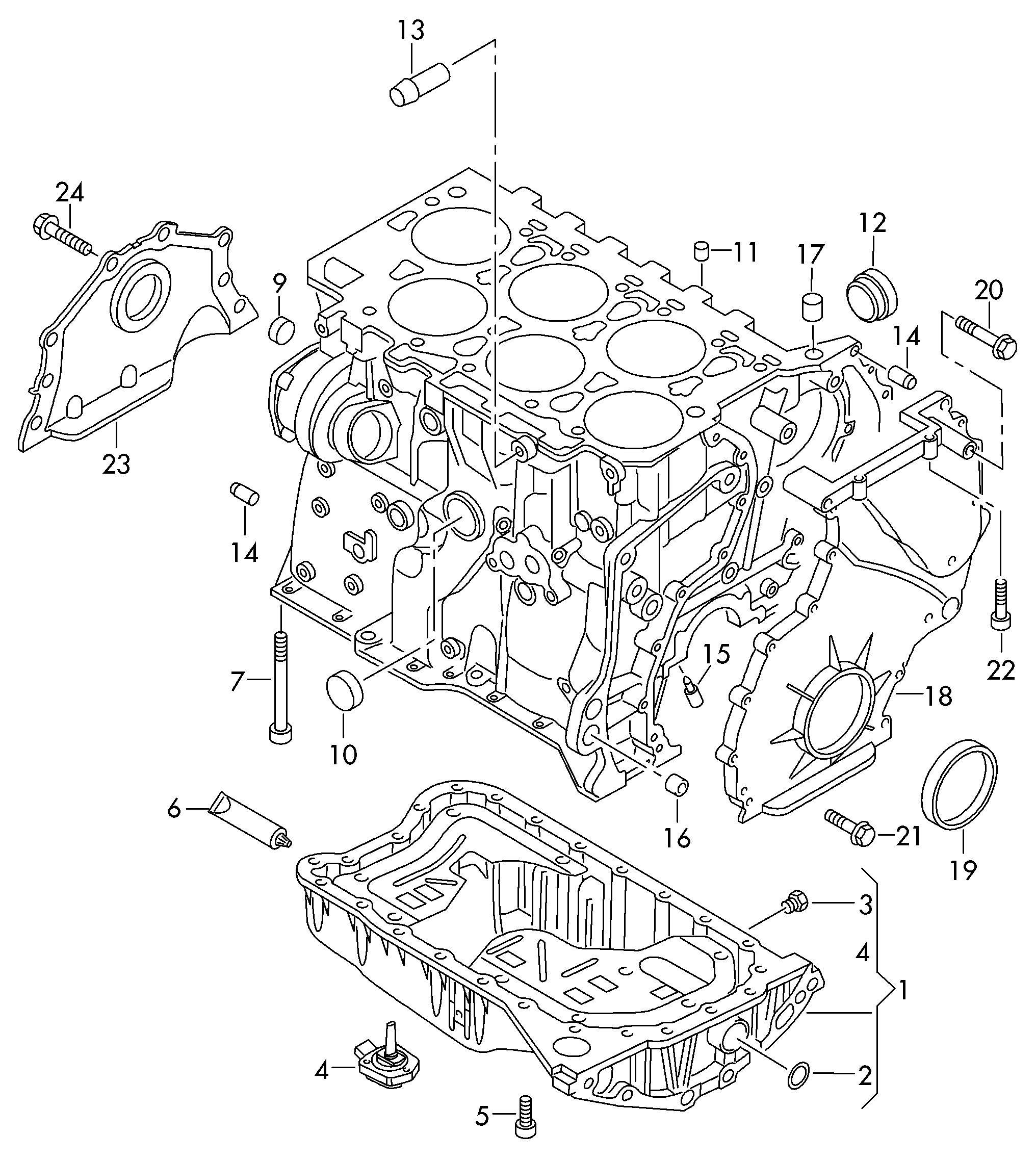

Scheme Crankcase, oil sump 3.6ltr. 6-cylinder Volkswagen Passat CC Coupe 2009-2012 EUR
