Crankcase, oil sump 2.0 ltr. diesel eng.+, CFFA, CFFB, CFGB Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	03L103011AP	Crankcase housing	999	Next
2	N90889701	Hexagon bolt M10X80	999	Next
3	N01190710	End cap 14	999	Next
4	028103039A	Dowel sleeve 14,15X21	999	Next
5	036103113A	End cap 36,6	999	Next
6	038103157B	Oil spray jet M10	999	Next
8		Threaded union with seal	999	Next
9	N0432072	Cylinder pin 8X14	999	Next
10	022103139B	Dowel sleeve 16X13,5	999	Next
11	038103085E	Shaft oil seal 35X48X10	999	Next
12	03G103153B	Sealing flange	999	Next
13	N90945002	Hexagon socket head bolt with shoulder M7X21,5	999	Next
14	D176501A1	Silicon sealant sealing flange	999	Next
16	03L103171	Sealing flange with sealing ring and trigger wheel	999	Next
17	N90945002	Hexagon socket head bolt with shoulder M7X21,5	999	Next
19	03G103603AD	Engine oil sump with opening for oil level sensor	999	Next
20	N90813202	Seal bolt with sealing ring M14X1,5X22	999	Next
21	03G103707	Cover for oil sump for vehicles without extended service interval	999	Next
22	38103196	O-ring	999	Next
23	N91065201	Socket head collared bolt with inner multipoint head M6X28	999	Next
26	N90735604	Hexagon socket head bolt with shoulder M7X28	999	Next
27	D176501A1	Silicon sealant oil sump	999	Next
28	03L103647F	Cover plate	999	Next
29	03L103660C	Cover for oil sump	999	Next
30	03L103728	Securing pin	999	Next
31	03L863788A	Spreader rivet	999	Next

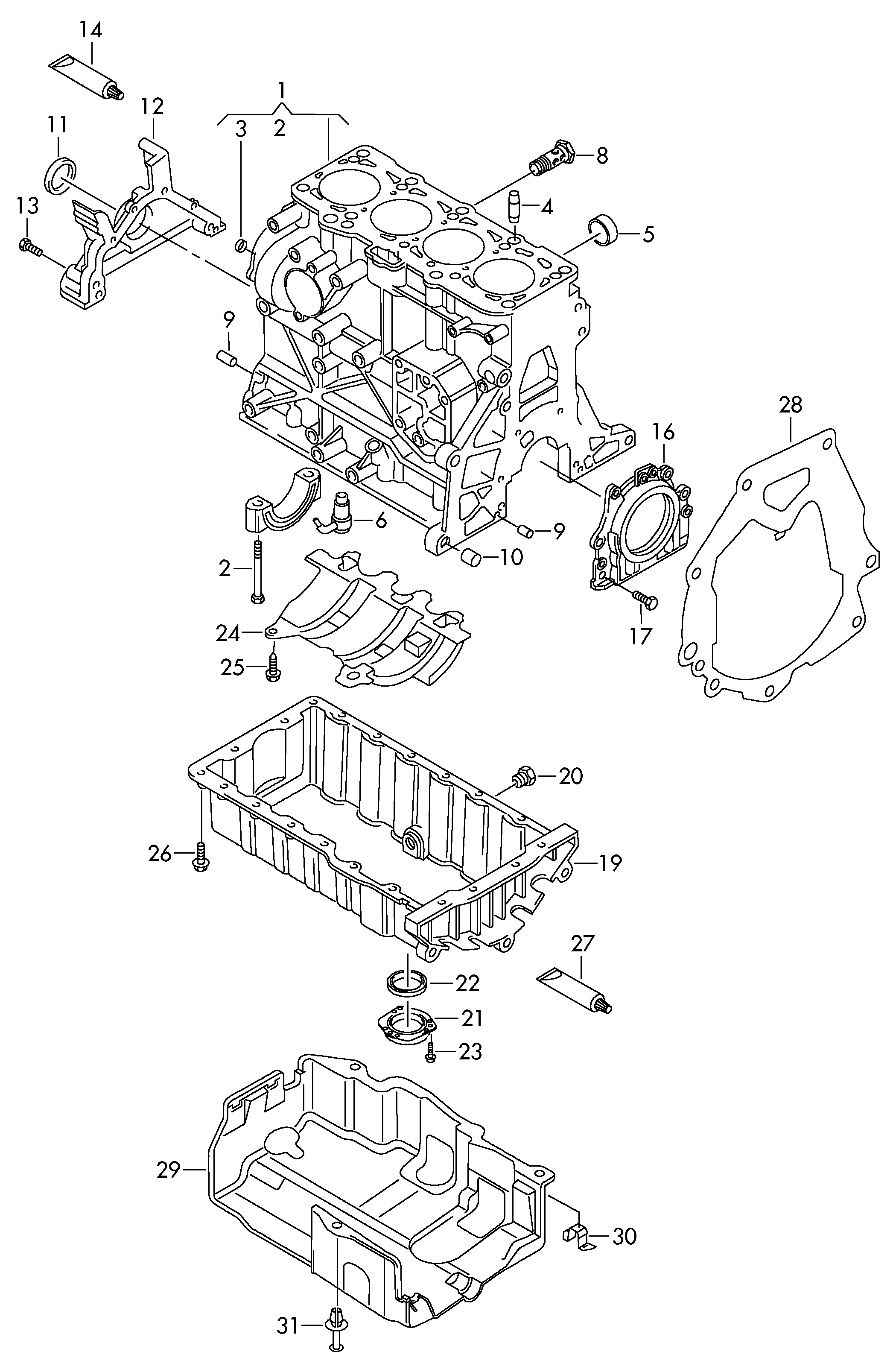

Scheme Crankcase, oil sump 2.0 ltr. diesel eng.+, CFFA, CFFB, CFGB Volkswagen Passat CC Coupe 2009-2012 EUR
