Crankcase housing, timing case, oil sump 1.4ltr. 4-cylinder+, CKMA Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	03C103011AR	Crankcase housing	999	Next
2	N91107801	Hex collared bolt M10X65	999	Next
2A	03C103157B	Oil spray jet M10	999	Next
2B	N90813202	Seal bolt with sealing ring M14X1,5X22	999	Next
4	N01190710	End cap 14	999	Next
5	03C103143	Dowel sleeve 13,2X13	999	Next
6	038103085E	Shaft oil seal 35X48X10	999	Next
7	03C109210CE	Timing case	999	Next
8	03C109287G	Seal	999	Next
8A	D176501A1	Silicon sealant only for position: 8	999	Next
9	03C103485B	End cap	999	Next
10	06A103483D	Seal	999	Next
11	03C133287A	O-ring	999	Next
12	03C109293	Seal	999	Next
15	N90500605	Socket head bolt with inner multipoint head M6X22	999	Next
16	N10655802	Hex collared bolt M10X85	999	Next
17	N10300804	Socket head bolt with inner multipoint head M6X45	999	Next
19	036103171B	Sealing flange with sealing ring and trigger wheel	999	Next
20	N0902619	Hexagon head bolt (combi) M6X20	999	Next
22	03C103603T	Engine oil sump with opening for oil level sensor	999	Next
23	N90813202	Seal bolt with sealing ring M14X1,5X22	999	Next
24	N90500605	Socket head bolt with inner multipoint head M6X22	999	Next
25	D176600A1	Silicone sealant oil sump	999	Next
26	03C103551H	Spacer plate	999	Next
27	N0432072	Cylinder pin 8X14	999	Next
31	022103139B	Dowel sleeve 16X13,5	999	Next
33		Oil level sensor	999	Next
34		Bush	999	Next

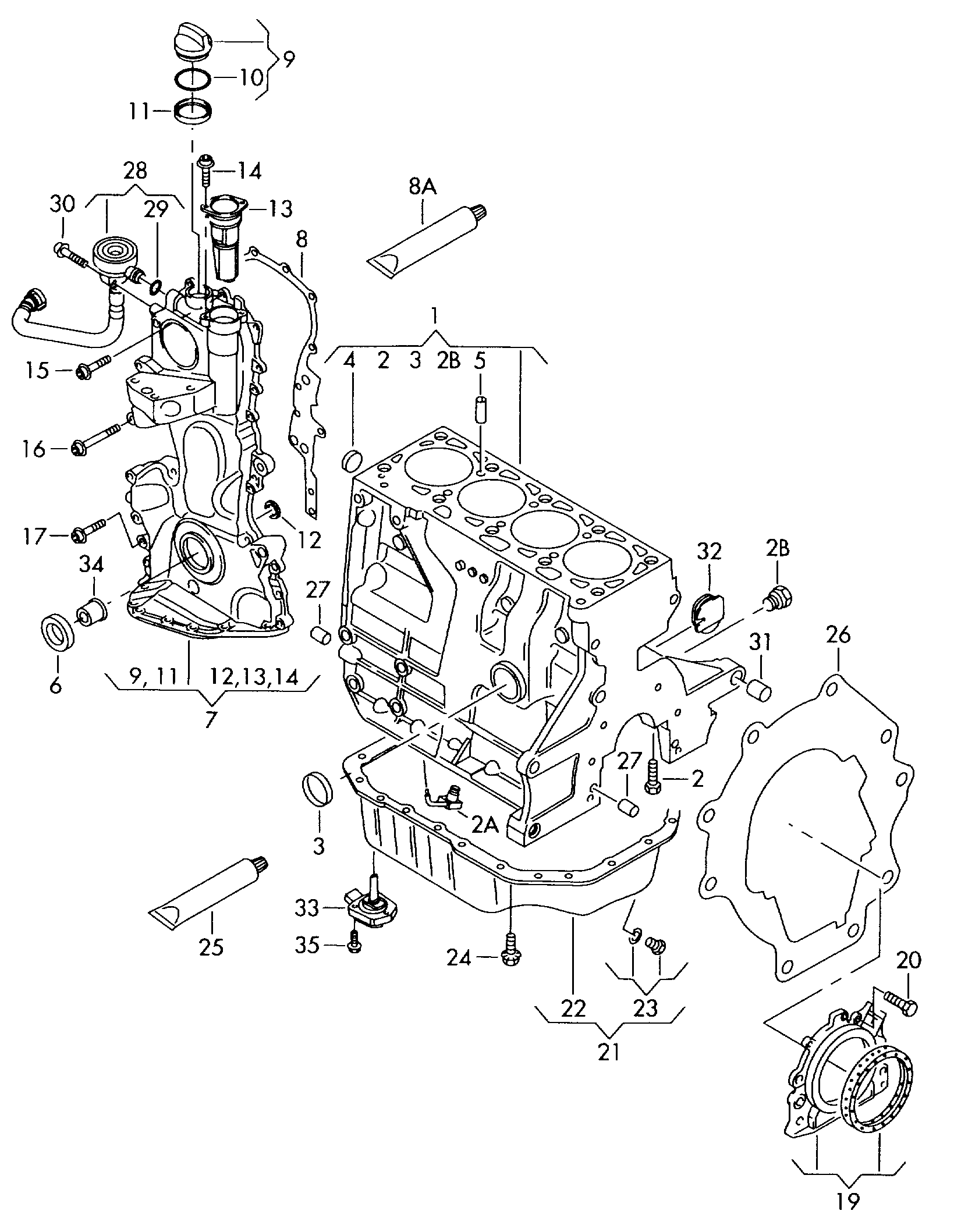

Scheme Crankcase housing, timing case, oil sump 1.4ltr. 4-cylinder+, CKMA Volkswagen Passat CC Coupe 2009-2012 EUR
