Crankcase housing, oil sump, balancer shaft 2.0 ltr. petr. engine Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	06H103011AP	Crankcase housing	999	Next
1	N 0119078	End cap 14	999	Next
1	N 0119104	End cap 10	999	Next
1	N 0119019	End cap	999	Next
1	N 01190110	End cap	999	Next
1	N 90982902	End cap 33	999	Next
1	N 91118902	Socket head collared bolt with inner multipoint head M10X80	999	Next
1	N 91187501	Socket head bolt with inner multipoint head M8X50	999	Next
1	06F103154	Oil spray jet	999	Next
1	06J103154B	Oil spray jet	999	Next
1	26103139	Cylinder pin 6X20	999	Next
1	N 10617101	Cylinder pin 8X12	999	Next
1	06H103113	End cap 38	999	Next
1	D 000600A2	Locking fluid	999	Next
1	022103139B	Dowel sleeve 16X13,5	999	Next
1	06H103171F	Sealing flange	999	Next
1	D 174003A2	Silicone sealant	999	Next
1	D 176501A1	Silicon sealant	999	Next
1	WHT005227	Oval hexagon socket head bolt M6X12	999	Next
1	06H103199K	Pipe	999	Next
1	06H198205F	Repair set for balancer shafts	999	Next
1	06H198205N	Repair set for balancer shafts	999	Next
1	06H103085J	Shaft oil seal 36,3X7	999	Next
1	WHT005227	Oval hexagon socket head bolt M6X12	999	Next
1	06H103559A	Intermediate shaft	999	Next
1	WHT001905	O-ring 10,3X2,4	999	Next
1	06H103319Q	Chain sprocket	999	Next
1	WHT001396A	Thrust washer 8,2X28X3	999	Next
1	N 10544904	Socket head bolt with inner multipoint head M8X55	999	Next
1	06H109210Q	Timing case	999	Next
1	06H109210AG	Timing case	999	Next
1	06K109210	Timing case	999	Next
1	06K109210AE	Timing case	999	Next
1	06K109210AF	Timing case	999	Next
1	D 174003A2	Silicone sealant	999	Next
1	06H103085G	Shaft oil seal 60X8	999	Next
1	06L103085B	Shaft oil seal 45X60X8	999	Next
1	06H115418D	Bungs	999	Next
1	N 91096702	Oval hexagon socket head bolt M6X16	999	Next
1	06H103731F	Pulley	999	Next
1	06H103731G	Pulley	999	Next
1	WHT001163B	Hexagon collared bolt with multi-point socket head (duo) M6X16,5	999	Next
1	06H109121G	Toothed belt guard	999	Next
1	N 10156206	Oval hexagon socket head bolt M6X30	999	Next
1	WHT005227	Oval hexagon socket head bolt M6X12	999	Next
1	06H103464L	Oil separator	999	Next
1	06H103517D	Seal	999	Next
1	N 10196103	Socket head bolt with inner multipoint head (kombi) M6X18	999	Next
1	06J103603T	Engine oil sump upper part	999	Next
1	06J103603AF	Engine oil sump upper part	999	Next
1	N 91048802	Screw with int. serrations M8X20	999	Next
1	N 91048802	Screw with int. serrations M8X20	999	Next
1	N 91050601	Hexagon socket head bolt M8X85	999	Next
1	06J103138F	Insert	999	Next
1	06J103138AE	Insert	999	Next
1	06H103156	Non-return valve	999	Next
1	06J103147	Seal	999	Next
1	N 10156206	Oval hexagon socket head bolt M6X30	999	Next
1	N 10124304	Oval hexagon socket head bolt M6X20	999	Next
1	06J103600T	Oil sump-lower part for vehicles without extended service interval	999	Next
1	06J103600AF	Oil sump-lower part for vehicles without extended service interval	999	Next
1	03G103707	Cover for oil sump	999	Next
1	38103196	O-ring	999	Next
1	N 01508210	Hexagon collar nut M6	999	Next
1	N 91101402	Seal bolt with sealing ring	999	Next
1	N 91167901	Sealing plug M14X1,5	999	Next
1	N 0138157	O-ring 14X20	999	Next
1		Oil level sensor	999	Next
1	D 174003A2	Silicone sealant	999	Next
1	D 176501A1	Silicon sealant	999	Next
1	N 91096701	Oval hexagon socket head bolt M6X16	999	Next
1	06J103645D	Cover plate	999	Next
1	06J103645D	Cover plate	999	Next
1	06J103645	Cover plate	999	Next
1	06H115243J	Control valve	999	Next
1		Control valve not for this model	999	Next
1	N 91096701	Oval hexagon socket head bolt M6X16	999	Next
1		Oval hexagon socket head bolt not for this model	999	Next
1	N 91056801	O-ring 12X2	999	Next
1		O-ring not for this model	999	Next

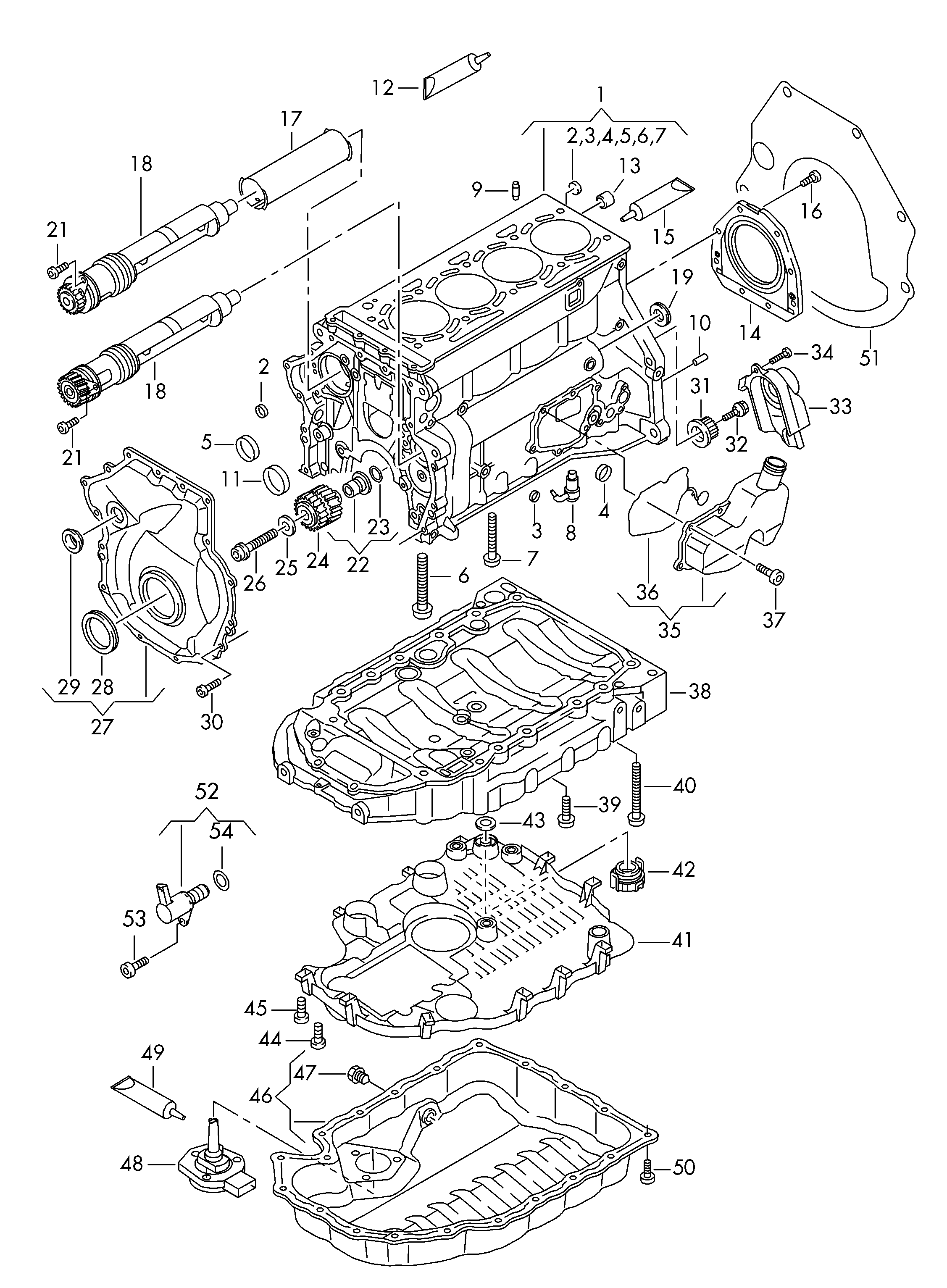

Scheme Crankcase housing, oil sump, balancer shaft 2.0 ltr. petr. engine Volkswagen Tiguan 2010-2017 EUR
