Crankcase housing, oil sump, balancer shaft 2.0 ltr. 4-cylinder Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	06H103011H	Crankcase housing F 3C9520 000	999	Next
1	06H103011N	Crankcase housing	999	Next
1	06H103011AP	Crankcase housing F 3C9520 001	999	Next
2	N0119078	End cap 14	999	Next
3	N0119104	End cap 10	999	Next
4	N0119019	End cap, before 09.01.2012	999	Next
4	N01190110	End cap, D 10.01.2012	999	Next
5	N90982901	End cap 33	999	Next
6	N91118902	Socket head collared bolt with inner multipoint head M10X80	999	Next
7	N91187501	Socket head bolt with inner multipoint head M8X50	999	Next
8	06F103154	Oil spray jet	999	Next
8	06J103154B	Oil spray jet	999	Next
9	26103139	Cylinder pin 6X20	999	Next
10	N10617101	Cylinder pin 8X12	999	Next
11	06H103113	End cap 38	999	Next
11	03C103113B	End cap 38	999	Next
12	D000600A2	Locking fluid	999	Next
13	022103139B	Dowel sleeve 16X13,5	999	Next
14	06H103171F	Sealing flange	999	Next
14	06H103171A	Sealing flange	999	Next
15	D174003A2	Silicone sealant	999	Next
16	N91073301	Hexagon socket flat head bolt M6X12	999	Next
17	06H103199K	Pipe	999	Next
18	06H198205F	Repair set for balancer shafts	999	Next
18A	06H198205A	Repair set for balancer shafts	999	Next
19	06H103085J	Shaft oil seal 36,3X7	999	Next
21	N91073301	Hexagon socket flat head bolt M6X12	999	Next
22	06H103559	Intermediate shaft	999	Next
23	WHT001905	O-ring 10,3X2,4	999	Next
24	06H103319Q	Chain sprocket	999	Next
25	WHT001396A	Thrust washer 8,2X28X3	999	Next
25	WHT001396	Thrust washer 8,2X28X3	999	Next
26	N10544904	Socket head bolt with inner multipoint head M8X55	999	Next
27	06H109210Q	Timing case, before 12.12.2011	999	Next
27	06K109210	Timing case, D 13.12.2011 and after	999	Next
-	D174003A2	Silicone sealant	999	Next
28	06H103085G	Shaft oil seal 60X8	999	Next
29	06H115418D	Bungs	999	Next
30	N91096702	Oval hexagon socket head bolt, before 12.12.2011 M6X16	999	Next
30	N91096702	Oval hexagon socket head bolt, D 13.12.2011 and after M6X16	999	Next
31	06H103731F	Pulley	999	Next
32	WHT001163B	Hexagon collared bolt with multi-point socket head (duo) M6X16,5	999	Next
33	06H109121G	Toothed belt guard	999	Next
34	N10156206	Oval hexagon socket head bolt M6X30	999	Next
34	N91073301	Hexagon socket flat head bolt M6X12	999	Next
35	06H103464L	Oil separator	999	Next
36	06H103517D	Seal	999	Next
37	N10196103	Socket head bolt with inner multipoint head (kombi) M6X18	999	Next
38	06J103603T	Engine oil sump upper part	999	Next
38	06J103603AF	Engine oil sump upper part	999	Next
39	N91048802	Screw with int. serrations M8X20	999	Next
39	N91048802	Screw with int. serrations M8X20	999	Next
40	N91050601	Hexagon socket head bolt M8X85	999	Next
41	06J103138F	Insert	999	Next
41	06J103138M	Insert, before 31.08.2010	999	Next
41	06J103138AE	Insert	999	Next
42	06H103156	Non-return valve	999	Next
43	06J103147	Seal	999	Next
44	N10156206	Oval hexagon socket head bolt M6X30	999	Next
45	N10124304	Oval hexagon socket head bolt M6X20	999	Next
46	06J103600T	Oil sump-lower part for vehicles without extended service interval	999	Next
-	03G103707	Cover for oil sump	999	Next
-	38103196	O-ring	999	Next
-	N01508213	Hexagon collar nut M6	999	Next
46	06J103600G	Oil sump-lower part	999	Next
47	N91167901	Sealing plug M14X1,5	999	Next
47	N0138157	O-ring 14X20	999	Next
48		Oil level sensor	999	Next
49	D174003A2	Silicone sealant	999	Next
50	N91096701	Oval hexagon socket head bolt M6X16	999	Next
51	06J103645	Cover plate	999	Next
-	867971928	Bungs 38	999	Next
51	06J103645A	Cover plate	999	Next
51	06J103645D	Cover plate	999	Next
52	06H115243E	Control valve, before 28.02.2010	999	Next
52	06H115243J	Control valve	999	Next
52		Control valve not for this model	999	Next
53	N91096701	Oval hexagon socket head bolt M6X16	999	Next
53		Oval hexagon socket head bolt not for this model	999	Next
54	N91056801	O-ring 12X2	999	Next
54		O-ring not for this model	999	Next

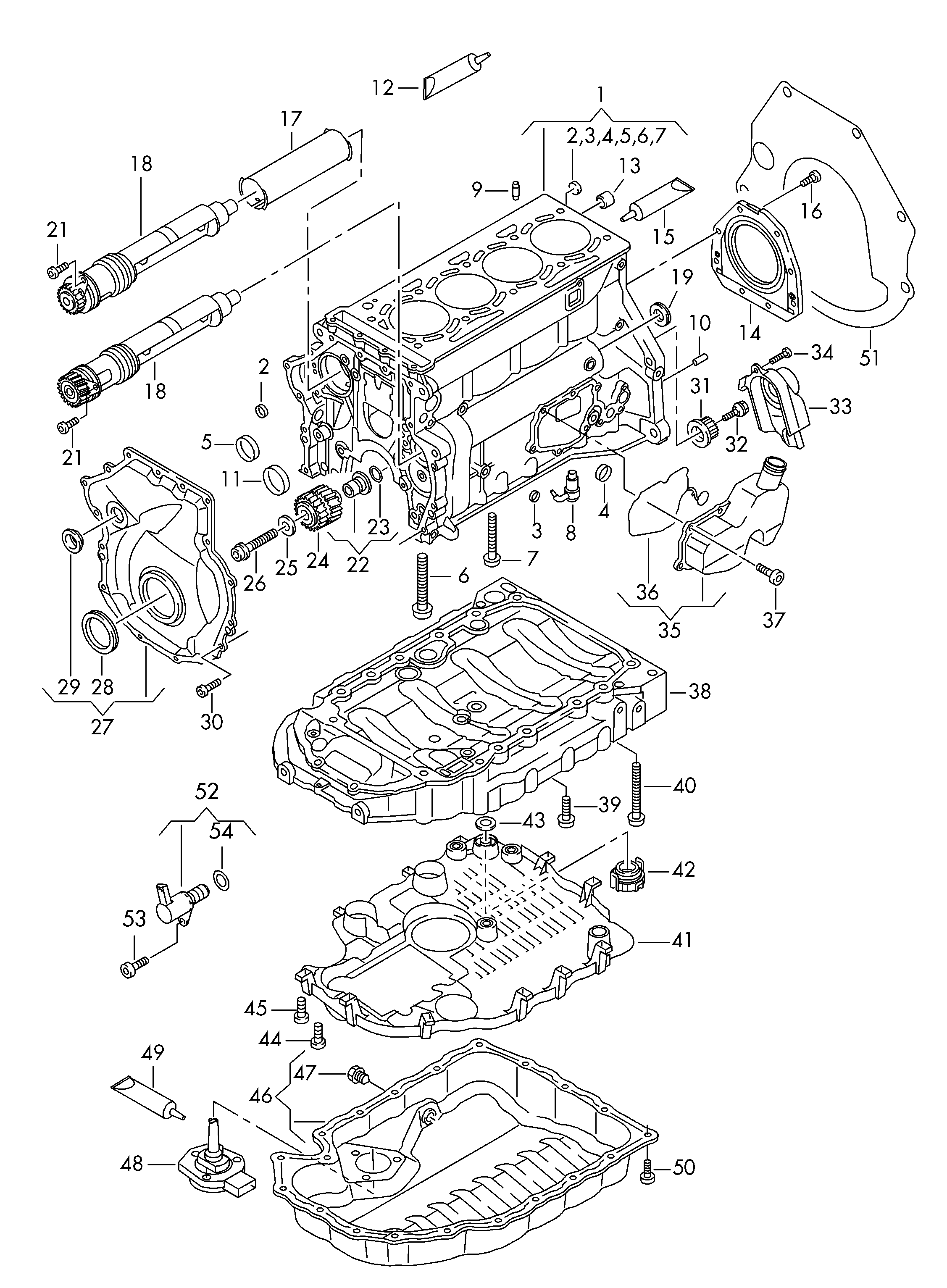

Scheme Crankcase housing, oil sump, balancer shaft 2.0 ltr. 4-cylinder Volkswagen Passat CC Coupe 2009-2012 EUR
