Crankcase housing, oil sump 2.0 ltr. diesel eng.+, CFFD, CFFA, CLJA, CFFB, CFGB, CFGC Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	03L103011AP	Crankcase housing	999	Next
1	N 90889701	Hexagon bolt M10X80	999	Next
1	N 01190710	End cap 14	999	Next
1	028103039A	Dowel sleeve 14,15X21	999	Next
1	036103113A	End cap 36,6	999	Next
1	038103157B	Oil spray jet M10	999	Next
1	038103157C	Oil spray jet M10	999	Next
1		Threaded union with seal	999	Next
1	N 0432072	Cylinder pin 8X14	999	Next
1	022103139B	Dowel sleeve 16X13,5	999	Next
1	038103085E	Shaft oil seal 35X48X10	999	Next
1	03G103153B	Sealing flange	999	Next
1	N 90945002	Hexagon socket head bolt with shoulder M7X21,5	999	Next
1	D 176501A1	Silicon sealant sealing flange	999	Next
1	03L103171	Sealing flange with sealing ring and trigger wheel	999	Next
1	03L103171A	Sealing flange with sealing ring and trigger wheel	999	Next
1	N 90945002	Hexagon socket head bolt with shoulder M7X21,5	999	Next
1	03G103603AD	Engine oil sump with opening for oil level sensor for models without extended servicing intervals	999	Next
1	N 90813202	Seal bolt with sealing ring M14X1,5X22	999	Next
1	03G103707	Cover for oil sump for vehicles without extended service interval	999	Next
1	38103196	O-ring	999	Next
1	N 91065201	Socket head collared bolt with inner multipoint head M6X28	999	Next
1		Surge lock not for this model	999	Next
1		Hex collared bolt not for this model	999	Next
1	N 90735604	Hexagon socket head bolt with shoulder M7X28	999	Next
1	D 176501A1	Silicon sealant oil sump	999	Next
1	03L103647F	Cover plate	999	Next
1	03L103647P	Cover plate	999	Next
1	038103647M	Cover plate	999	Next
1	03L103660C	Cover for oil sump	999	Next
1	03L103728	Securing pin	999	Next
1	03L863788A	Spreader rivet	999	Next

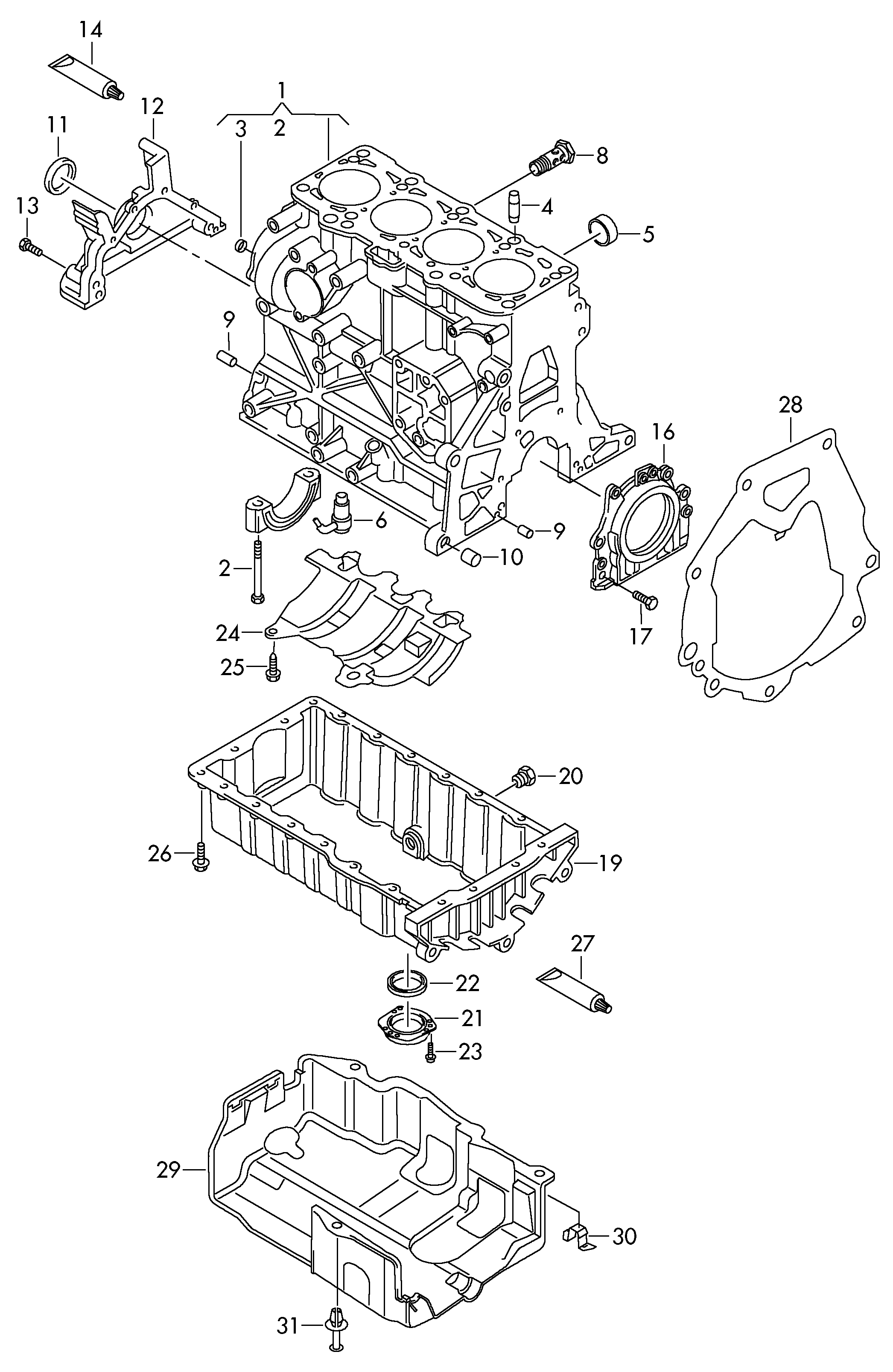

Scheme Crankcase housing, oil sump 2.0 ltr. diesel eng.+, CFFD, CFFA, CLJA, CFFB, CFGB, CFGC Volkswagen Tiguan 2010-2017 EUR
