Crankcase housing, oil sump 1.6ltr. petrol eng.+, BSE, BSF, CHGA, CMXA Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	06B103011AP	Crankcase housing	999	Next
1	06B103011AQ	Crankcase housing	999	Next
2	WHT000134	Hex collared bolt M10X87	999	Next
3	N01190710	End cap 14	999	Next
4	N0119098	End cap 22	999	Next
5	36103113	End cap 42,1	999	Next
6	WHT001423	Sealing plug M26X1,5	999	Next
7		Impulse sender	999	Next
8		Not for this model	999	Next
9		Not for this model	999	Next
10		Not for this model	999	Next
11	26103139	Cylinder pin 6X20	999	Next
12	038103085E	Shaft oil seal 35X48X10	999	Next
13	038103151H	Sealing flange	999	Next
14		Washer not for this model	999	Next
15	N90945002	Hexagon socket head bolt with shoulder M7X21,5	999	Next
16	D174003A2	Silicone sealant sealing flange	999	Next
16	D174003M2	Silicone sealant sealing flange	999	Next
17		O-ring included in position: 18	999	Next
18	06B103171B	Sealing flange	999	Next
20	N90945002	Hexagon socket head bolt with shoulder M7X21,5	999	Next
21	N10617101	Cylinder pin 8X12	999	Next
22	022103139B	Dowel sleeve 16X13,5	999	Next
23	06A103601AR	Engine oil sump with opening for oil level sensor	999	Next
-23	06A103601AR	Engine oil sump with opening for oil level sensor for vehicles without extended service interval also use: 03G 103 707 038 103 196 N 910 652 01	999	Next
-	03G103707	Cover for oil sump for models without extended servicing intervals	999	Next
-	38103196	O-ring	999	Next
-	N91065201	Socket head collared bolt with inner multipoint head M6X28	999	Next
24	N90813202	Seal bolt with sealing ring M14X1,5X22	999	Next
25		O-ring included in position: 24	999	Next
26	06B103623P	Surge lock M7X28	999	Next
27	N90735604	Hexagon socket head bolt with shoulder M7X28	999	Next
28	D176404A2	Silicone sealant oil sump	999	Next
28	D176404M2	Silicone sealant oil sump	999	Next
29		Spacer plate not for this model	999	Next
30	038103645C	Spacer plate	999	Next
-30	06J103645D	Cover plate	999	Next
31	038103648G	Cover plate	999	Next
32	N01152427	Washer 6,4X12,5X1,6	999	Next
33	N01020812	Hexagon bolt M6X8	999	Next
34	06D103634E	Tube for oil dipstick	999	Next
35	06A103663C	Guide funnel	999	Next
36		Hex collared bolt not for this model	999	Next
37		Oil level sensor	999	Next

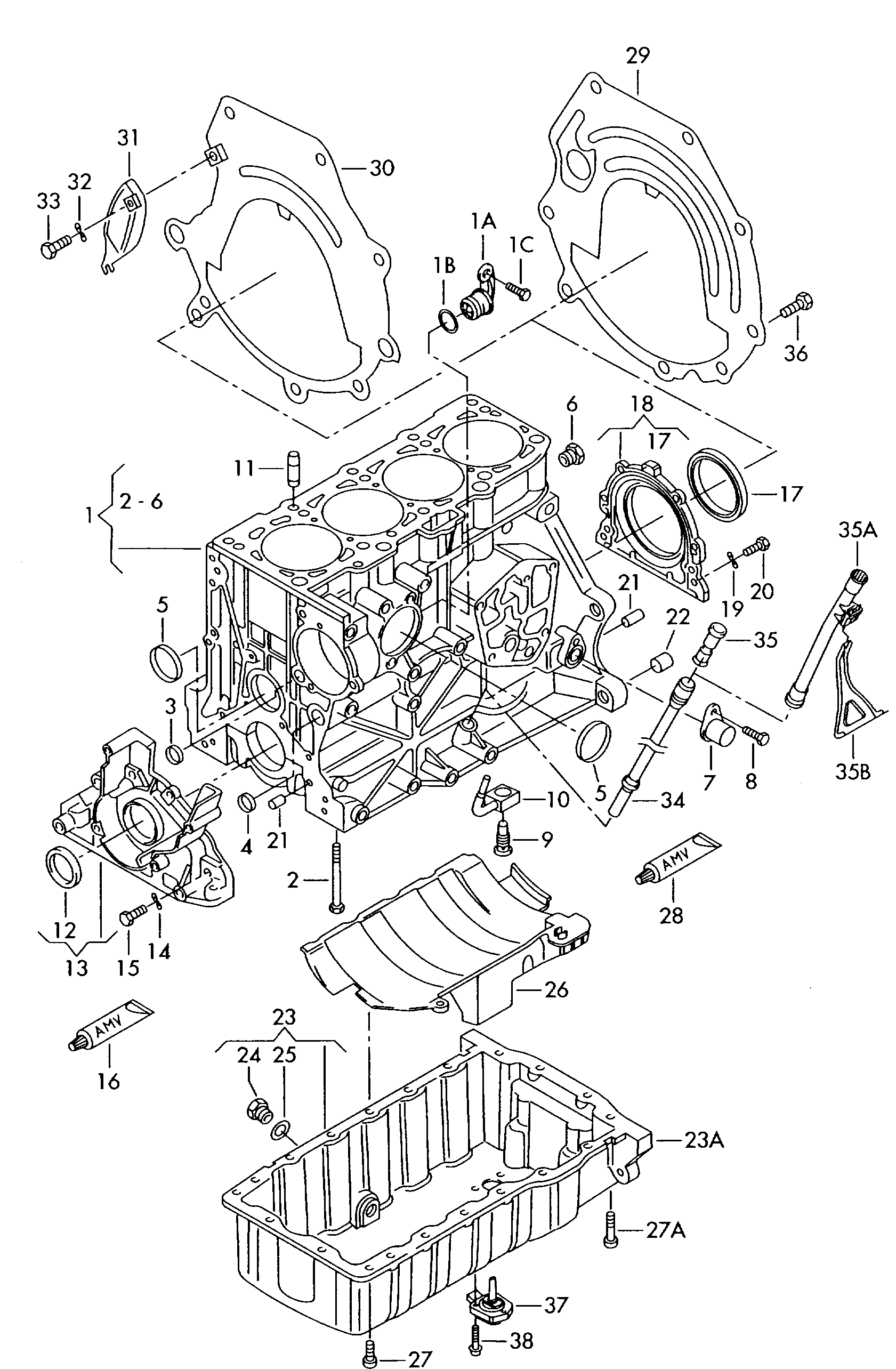

Scheme Crankcase housing, oil sump 1.6ltr. petrol eng.+, BSE, BSF, CHGA, CMXA Volkswagen Golf Plus 2012-2014 EUR
