Crankcase housing, oil sump 1.4ltr. petrol eng.+, CAVD, CAXA, CNWA, CTHD, CTKA Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	03C103011AR	Crankcase housing	999	Next
1	03C103011AS	Crankcase housing	999	Next
2	N91107801	Hex collared bolt M10X65	999	Next
3	03C103143	Dowel sleeve 13,2X13	999	Next
4	N0432072	Cylinder pin 8X14	999	Next
5	N01190710	End cap 14	999	Next
6	N90813202	Seal bolt with sealing ring M14X1,5X22	999	Next
7	D000600A2	Locking fluid	999	Next
8	03C103157A	Oil spray jet M10	999	Next
9	036103171B	Sealing flange with sealing ring and trigger wheel	999	Next
10	N0902619	Hexagon head bolt (combi) M6X20	999	Next
13	03C103603T	Engine oil sump with opening for oil level sensor	999	Next
14	N90813202	Seal bolt with sealing ring M14X1,5X22	999	Next
15		Oil level sensor	999	Next
16	D176600A1	Silicone sealant oil sump	999	Next
17	N90500605	Socket head bolt with inner multipoint head M6X22	999	Next
20	03C103551H	Spacer plate	999	Next
20	036103551R	Spacer plate	999	Next
20	03C103551H	Spacer plate	999	Next
21	022103139B	Dowel sleeve 16X13,5	999	Next

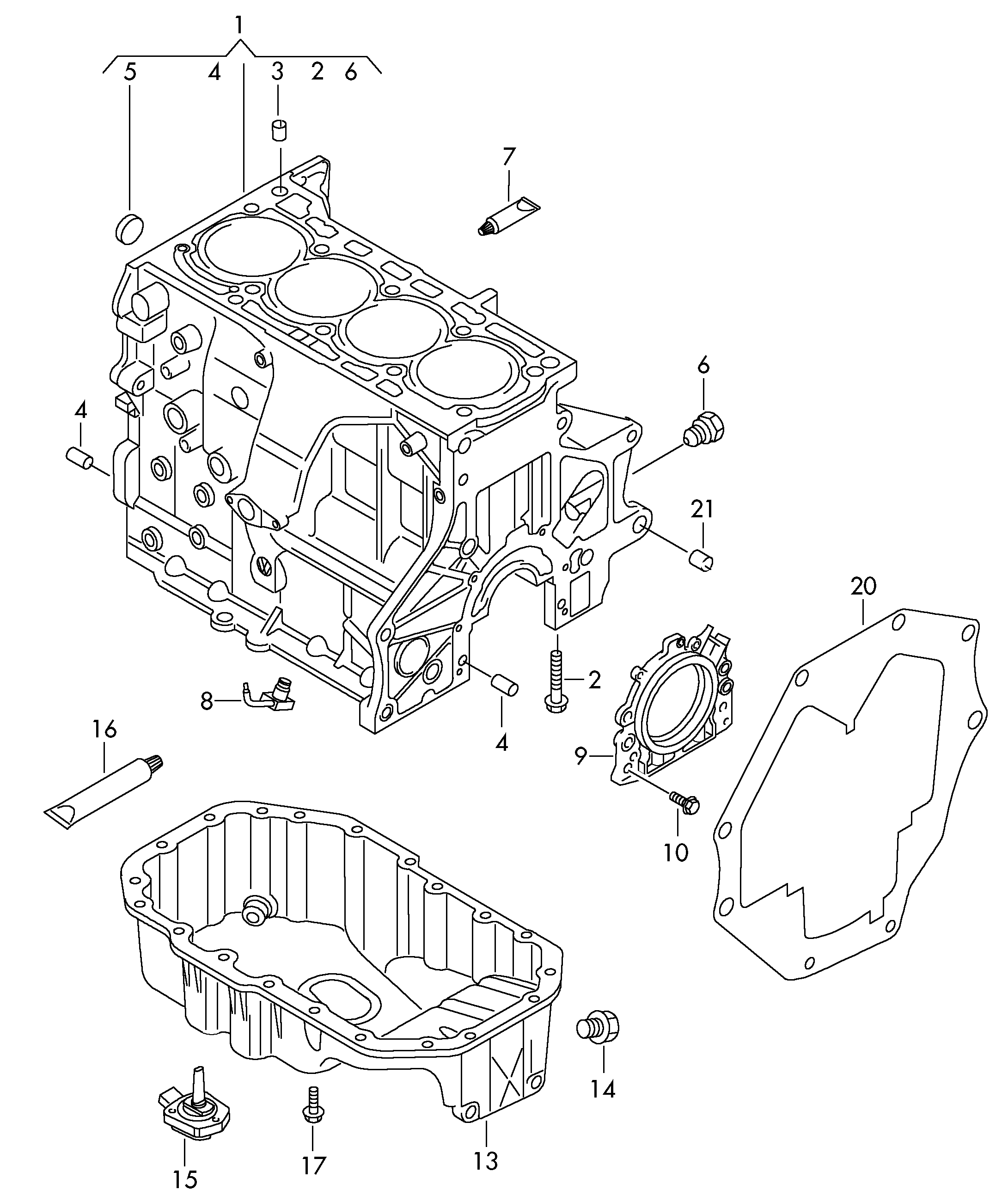

Scheme Crankcase housing, oil sump 1.4ltr. petrol eng.+, CAVD, CAXA, CNWA, CTHD, CTKA Volkswagen Golf Plus 2012-2014 EUR
