Cover for engine compartment, ventilation for cylinder block 1.4ltr. petrol eng.+, CAVD, CNWA, CTHD, CTKA Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1		Cover no replacement part	999	Next
2	03C103925BR	Cover for intake manifold VW TSI	999	Next
3	03C133287A	O-ring	999	Next
4	07C133588G	Grommet	999	Next
4	07C133588L	Grommet	999	Next
4	07C133588C	Grommet	999	Next
5	03C103776A	Grommet	999	Next
6	WHT002431	Ball head M6	999	Next
7	03C103747	Guide funnel	999	Next
8	03C103474AB	Vent hose	999	Next
8	03C103474AD	Vent hose	999	Next
9		Connecting hose	999	Next
10		Control line	999	Next
11	4A0820199	Double cable tie 7X213/140	999	Next
12		Cylinder head cover	999	Next
13	06F103940	Vw emblem	999	Next
14		Vacuum hose	999	Next
15	N10404805	Washer 6,4X12X1,6	999	Next

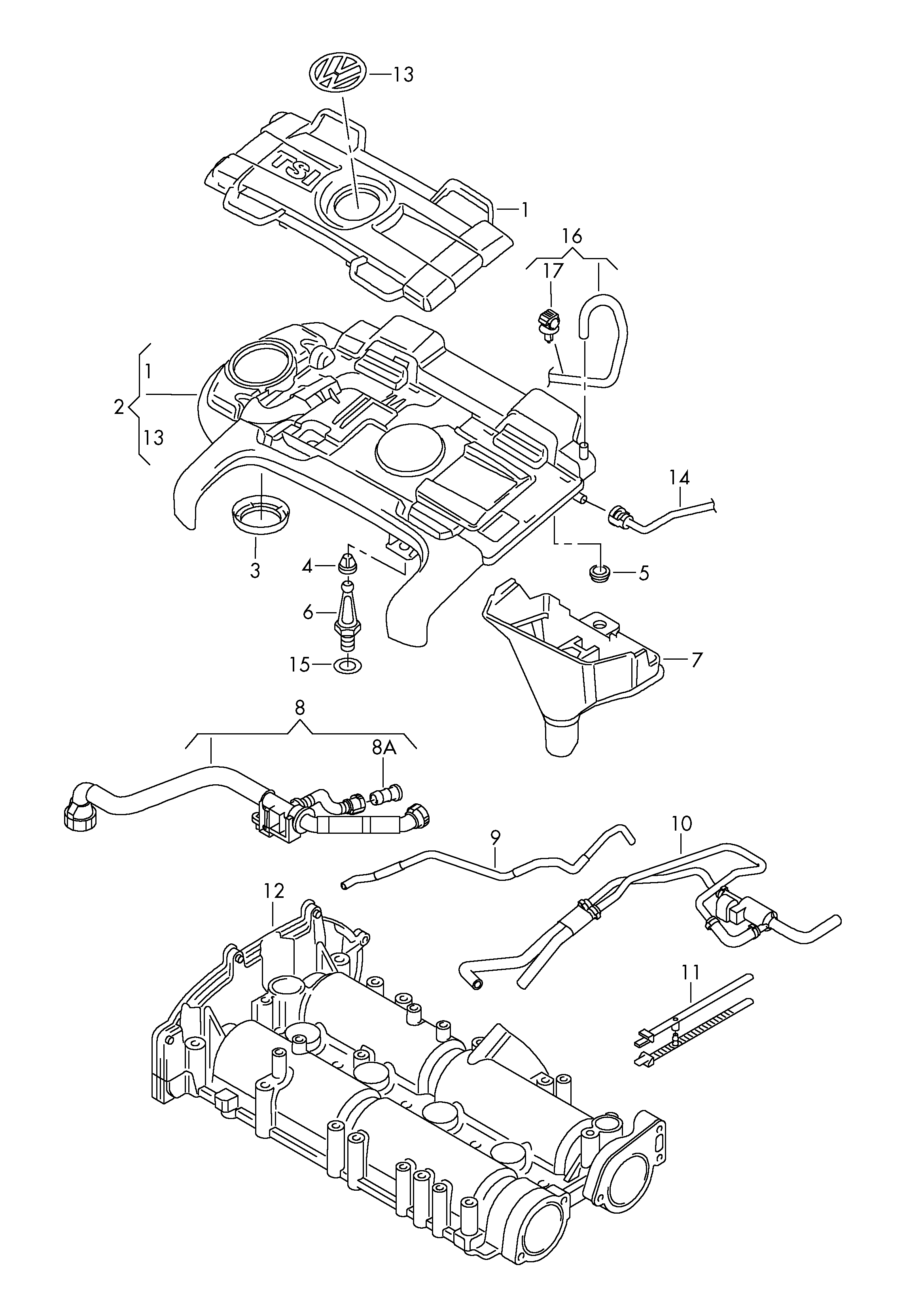

Scheme Cover for engine compartment, ventilation for cylinder block 1.4ltr. petrol eng.+, CAVD, CNWA, CTHD, CTKA Volkswagen Golf Plus 2012-2014 EUR
