Coupling 2.0 ltr. 4-cylinder+, diesel eng.+, CBAA, CBAB, CBAC, CBBB, CFFA, CFFB, CFGB, CLLA Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	03G141015L	Clutch plate and pressure plate see workshop manual, before 30.09.2009 240MM SACHS	999	Next
1	03G141015LX	Clutch plate and pressure plate see workshop manual, before 30.09.2009 240MM SACHS	999	Next
1	03L141016C	Clutch plate and pressure plate see workshop manual, D 01.10.2009 - 30.05.2011 240MM SACHS	999	Next
1	03L141016CX	Clutch plate and pressure plate see workshop manual, D 01.10.2009 - 30.05.2011 240MM SACHS	999	Next
1	03L141016P	Clutch plate and pressure plate see workshop manual, D 31.05.2011 and after 240MM SACHS	999	Next
1	03L141016PX	Clutch plate and pressure plate see workshop manual, D 31.05.2011 and after 240MM SACHS	999	Next
1	022141015S	Clutch plate and pressure plate see workshop manual, before 30.05.2011 240MM LUK	999	Next
1	022141015SX	Clutch plate and pressure plate see workshop manual, before 30.05.2011 240MM LUK	999	Next
1	03L141016N	Clutch plate and pressure plate see workshop manual, D 31.05.2011 and after 240MM LUK	999	Next
1	03L141016NX	Clutch plate and pressure plate see workshop manual, D 31.05.2011 and after 240MM LUK	999	Next
1	022141015S	Clutch plate and pressure plate, before 30.05.2011 240MM LUK	999	Next
1	022141015SX	Clutch plate and pressure plate, before 30.05.2011 240MM LUK	999	Next
1	03L141016N	Clutch plate and pressure plate, D 31.05.2011 and after 240MM LUK	999	Next
1	03L141016NX	Clutch plate and pressure plate, D 31.05.2011 and after 240MM LUK	999	Next
2	N90320701	12-point head bolt M7X14	999	Next
3	0A5141671F	Release bearing with hydraulic operation	999	Next
3	0A5141671E	Release bearing with hydraulic operation	999	Next
3	0A5141671	Release bearing with hydraulic operation	999	Next
4	02F141143A	O-ring 9,25X6,07X1,78	999	Next
6	N90847002	Bolt, hex. hd. with shoulder, self-locking M7X25	999	Next
7	G000100	Grease for clutch plate splines 80G	999	Next

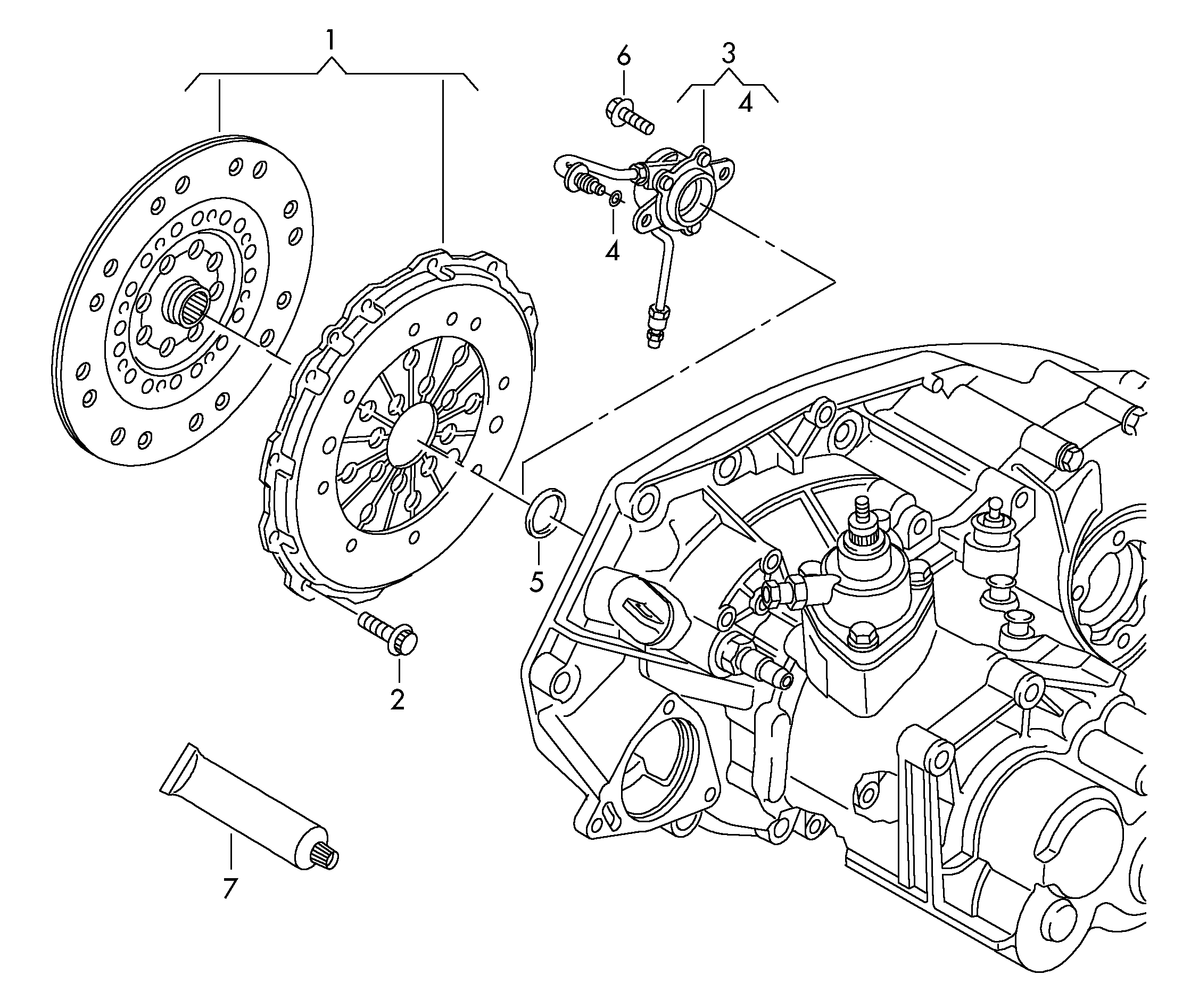

Scheme Coupling 2.0 ltr. 4-cylinder+, diesel eng.+, CBAA, CBAB, CBAC, CBBB, CFFA, CFFB, CFGB, CLLA Volkswagen Passat CC Coupe 2009-2012 EUR
