Coupling 1.2 ltr. petrol eng.+, CBZA, CBZB Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	04E198141X	1 set clutch parts	999	Next
1	036141032H	Clutch plate	999	Next
1	036141032HX	Clutch plate	999	Next
1	03F141031	Clutch plate	999	Next
1	03F141031X	Clutch plate	999	Next
2	03C141025J	Clutch pressure plate	999	Next
2	04E141026C	Clutch pressure plate	999	Next
2	03C141025JX	Clutch pressure plate	999	Next
2	04E141026CX	Clutch pressure plate	999	Next
2	03F141025A	Clutch pressure plate	999	Next
2	03F141025AX	Clutch pressure plate	999	Next
4	N90320701	12-point head bolt M7X14	999	Next
6	12141741	Retaining spring	999	Next
7	02T141170B	Release bearing with guide sleeve	999	Next
8	N90898007	Socket head bolt with inner multipoint head M6X16	999	Next
10	02T141153F	Clutch lever with release bearing and guide sleeve	999	Next
11		Radial shaft seal	999	Next
12	02A141777B	Ball stud	999	Next
20	G000100	Grease for clutch plate splines 80G	999	Next

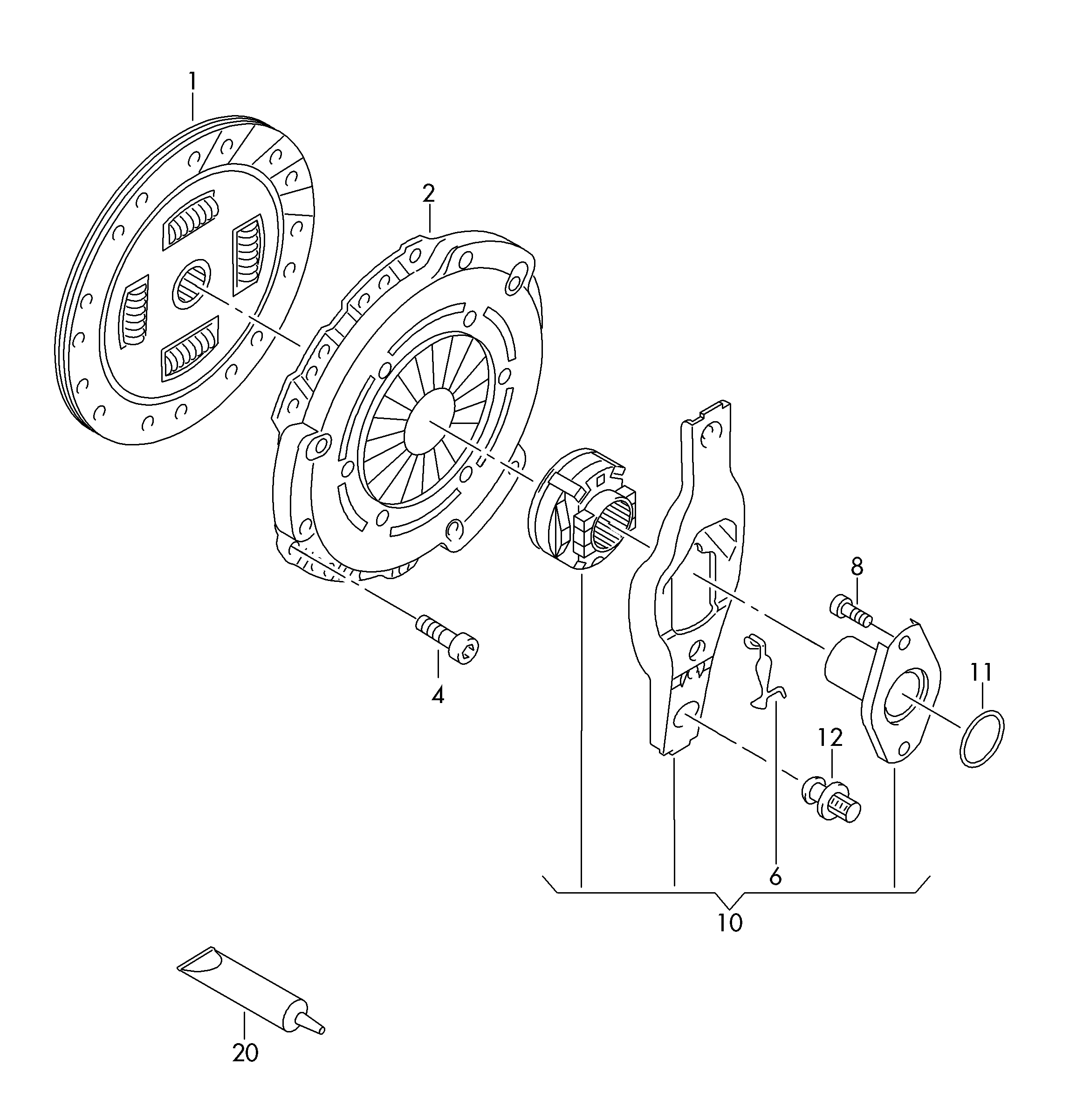

Scheme Coupling 1.2 ltr. petrol eng.+, CBZA, CBZB Volkswagen Golf Plus 2012-2014 EUR
