Coolant regulator housing, reservoir, cooler for coolant 1.4ltr. petrol eng.+, CGGA, CAVD, CNWA, CTHD, CTKA Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	03C121111P	Coolant regulator housing	999	Next
1	032121111BM	Coolant regulator housing	999	Next
2	03C121121D	Cover for thermostat	999	Next
2	032121121K	Cover for thermostat	999	Next
3	03C121119C	O-ring 52,5X4,5	999	Next
3	032121119J	O-ring 47X4	999	Next
4	03C121110L	Coolant regulator 80C-95C	999	Next
4	032121110B	Coolant regulator 87C-102C	999	Next
5	N10611201	Oval head panel screw 6X22	999	Next
5	N90629803	Hex.hd. thread cutting bolt 7X20	999	Next
8	03C121118D	Cover for thermostat	999	Next
9	03C121119	O-ring 45X4	999	Next
10	03C121110G	Coolant regulator 95C-110C	999	Next
12	06A919501A	Coolant temperature sender	999	Next
12	357121140	Bungs	999	Next
13	N90316801	O-ring 19,6X3,65	999	Next
14	32121142	Retaining spring	999	Next
17	03C121119E	Seal	999	Next
17	032121119J	O-ring 47X4	999	Next
18	N91097001	Hexagon socket flat head bolt M6X30	999	Next
18	N91097101	Semi round bolt (combi) with hexagon socket head M6X30	999	Next
20	1K0121407A	Coolant expansion tank	999	Next
21	3B0121321	End cap	999	Next
22	1H0121687A	O-ring 28,5X3,8	999	Next
23	N91090701	Semi round bolt (combi) with hexagon socket head 5X20	999	Next
24	811807577C	Insert nut	999	Next
25	G012A8GM1	Coolant additive, plus-plus	999	Next
25	G013A8JM1	Coolant concentrate	999	Next
25	G013A8JM8	Coolant concentrate	999	Next
25	G013A8JM9	Coolant concentrate	999	Next
25	G013774M2	Ready-mix coolant	999	Next
30	5K0121253D	Cooler for coolant 648X414	999	Next
30	1K0121251DL	Cooler for coolant for vehicle use in cold and moderate climates 648X414	999	Next
30	1K0121251DL	Cooler for coolant for vehicles without trailers and for vehicle use in warm climates 648X414	999	Next
30	1K0121251CD	Cooler for coolant for models with towing attachment and used in in warm climates and for vehicles with air condit. 648X414	999	Next
31	1K0121345AM	Seal only for: 1K0 121 251 DN	999	Next
31	1K0121345E	Seal for charge air cooler shorten if necessary	999	Next
31	1K0121345AG	Seal only for: 1K0 121 251 DL	999	Next
31	1K0121345AE	Seal only for: 1K0 121 251 CD	999	Next
32	1K0121345D	Seal for charge air cooler shorten if necessary	999	Next
32	1K0121345H	Seal only for: 1K0 121 251 CD	999	Next
33	1K0121367P	Bracket	999	Next
33	1K0121367G	Bracket	999	Next
33	1K0121367N	Bracket mount for vehicles with no air conditioning system	999	Next
33	1K0121367M	Bracket mount for vehicles with air condit.	999	Next
34	N90808201	Hexagon socket head panel bolt 6X18,5	999	Next
35	1K0121367F	Bush	999	Next

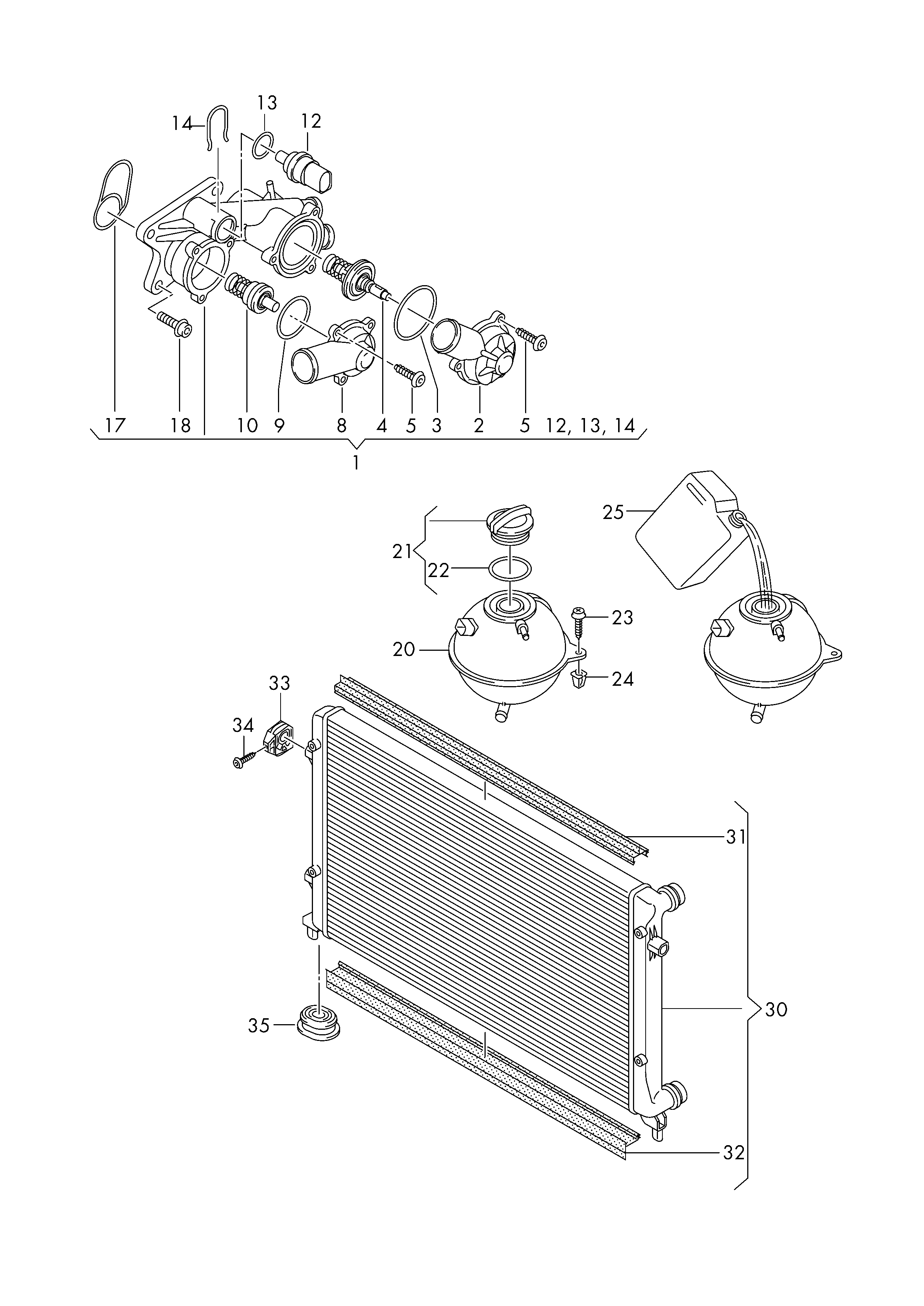

Scheme Coolant regulator housing, reservoir, cooler for coolant 1.4ltr. petrol eng.+, CGGA, CAVD, CNWA, CTHD, CTKA Volkswagen Golf Plus 2012-2014 EUR
