Coolant regulator housing, reservoir, cooler for coolant 1.4ltr. petrol eng.+, CAXA Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	03C121111T	Coolant regulator housing	999	Next
1	03C121121D	Cover for thermostat	999	Next
1	03C121119C	O-ring 52,5X4,5	999	Next
1	03C121110Q	Coolant regulator 83C-98C	999	Next
1	N 10611201	Oval head panel screw 6X22	999	Next
1	03C121118D	Cover for thermostat	999	Next
1	03C121119	O-ring 45X4	999	Next
1	03C121110P	Coolant regulator 105C-120C	999	Next
1	06A919501A	Coolant temperature sender	999	Next
1	32121142	Retaining spring	999	Next
1	N 90316801	O-ring 19,6X3,65	999	Next
1	03C121119E	Seal	999	Next
1	N 91097001	Hexagon socket flat head bolt M6X30	999	Next
1	1K0121407A	Coolant expansion tank	999	Next
1	3C0121321	End cap	999	Next
1	1H0121687A	O-ring 28,5X3,8	999	Next
1	N 90846602	Oval head self-tapping screw 5X20	999	Next
1	811807577C	Insert nut	999	Next
1	G 012A8GM8	Coolant additive, plus-plus	999	Next
1	G 013A8JM1	Coolant concentrate	999	Next
1	G 013A8JM8	Coolant concentrate	999	Next
1	G 013A8JM9	Coolant concentrate	999	Next
1	G 013774M2	Ready-mix coolant N 052 774 G0	999	Next
1	1K0121251EC	Cooler for coolant 626X406MM	999	Next
1		Included in position: 30	999	Next
1	5N0121345M	Seal	999	Next
1	1K0121367P	Bracket	999	Next
1	1K0121367G	Bracket	999	Next
1	N 90808201	Hexagon socket head panel bolt 6X18,5	999	Next
1	1K0121367F	Bush	999	Next
1	1K0121253BB	Cooler for coolant 650X418MM	999	Next
1	N 90817003	Hexagon socket head panel bolt 6X17	999	Next

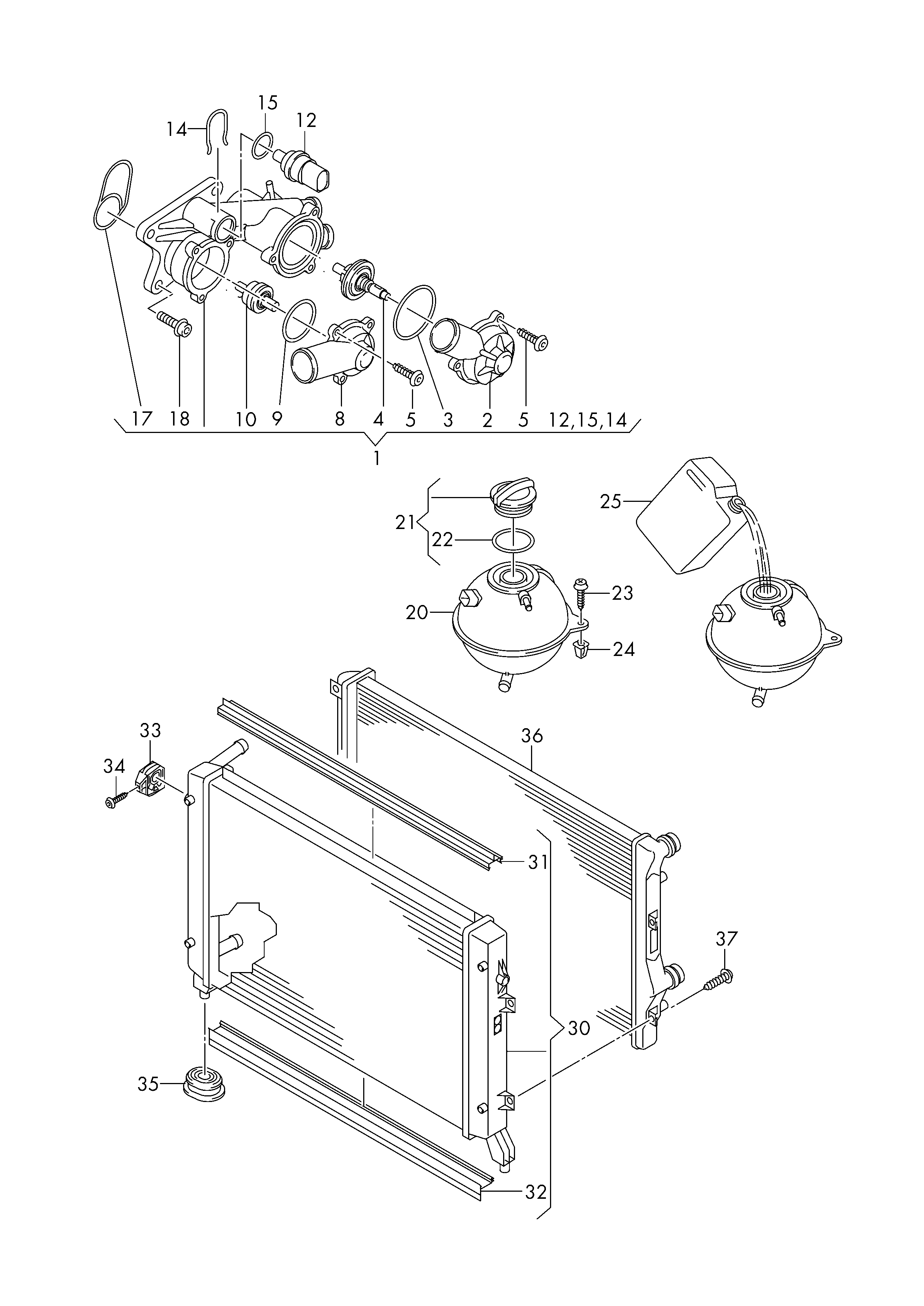

Scheme Coolant regulator housing, reservoir, cooler for coolant 1.4ltr. petrol eng.+, CAXA Volkswagen Tiguan 2010-2017 EUR
