Coolant pump, coolant regulator, water connection 1.8/2.0ltr. 4-cylinder+, petrol eng.+, CDAA, CDAB, CCZA, CCZB Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

Spare parts table
An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	06H121026BA	Coolant regulator with coolant pump	999	Next
1	06H121026AF	Coolant regulator with coolant pump	999	Next
1	06H121026BE	Coolant regulator with coolant pump and coolant regulator housing	999	Next
1	06H121026AG	Coolant pump and coolant regulator housing	999	Next
2	06H121119D	O-ring	999	Next
2	06J121119	O-ring	999	Next
3	N0131991	Cylinder pin 6X12	999	Next
4	N10413405	Hexagon socket flat head bolt M6X25.0	999	Next
5	N10470705	Round hd. screw M6X50	999	Next
5	N10470704	Round hd. screw AM6X50.0	999	Next
6	06A919501A	Coolant temperature sender coolant pump	999	Next
7	N90316801	O-ring 19,6X3,65	999	Next
8	06H121142C	Retaining spring	999	Next
8	06J121142	Retaining spring	999	Next
8A	N10453502	Fillister hd. bolt 5X10	999	Next
9	06H121113B	Coolant regulator	999	Next
9	06J121113A	Coolant regulator	999	Next
9	06J121113C	Coolant regulator	999	Next
10	06H121121K	Cover for thermostat	999	Next
10	06J121121	Cover for thermostat	999	Next
11	06H121119E	O-ring	999	Next
11	06J121119B	O-ring	999	Next
11	06J121119A	O-ring	999	Next
12	N10196103	Socket head bolt with inner multipoint head (kombi) M6X18	999	Next
12	N10084107	Socket head bolt with hexagon socket head (combination) M6X16	999	Next
13	06H121131C	Union with seal	999	Next
14	WHT002001	O-ring 16X3	999	Next
15	06H121605E	Toothed belt	999	Next
16		Toothed belt guard	999	Next
17	N91073301	Hexagon socket flat head bolt M6X12	999	Next
18	N10156206	Oval hexagon socket head bolt M6X30	999	Next
19		Oil cooler	999	Next
21	WHT001688	O-ring 32X3	999	Next
23	06J121132G	Water connection	999	Next
24	N91099101	Socket head bolt with inner multipoint head M6X20	999	Next

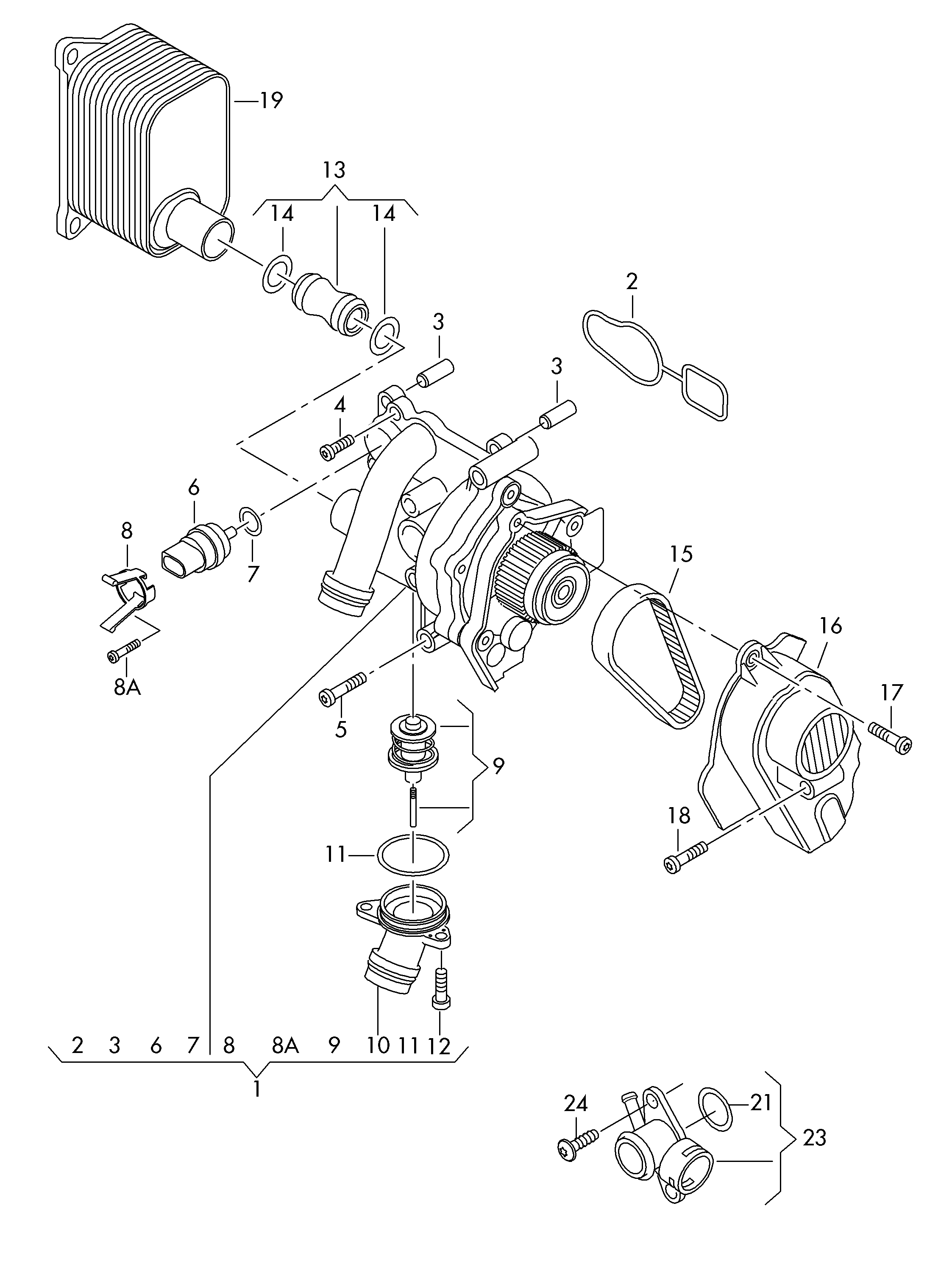

Scheme Coolant pump, coolant regulator, water connection 1.8/2.0ltr. 4-cylinder+, petrol eng.+, CDAA, CDAB, CCZA, CCZB Volkswagen Passat CC Coupe 2009-2012 EUR
