Coolant pump, coolant regulator 3.6ltr. 6-cylinder+, petrol eng.+, BWS, BLV, CNNA Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	022121011A	Coolant pump with glued in sealing ring	999	Next
3	021121031D	Pulley	999	Next
4	N90544203	Socket head bolt with inner multipoint head M8X11	999	Next
5	N10526802	Oval head countersunk bolt with multi-point socket head M6X18	999	Next
10	03H121117A	Thermostat housing, before 01.08.2010	999	Next
10	03H121117B	Thermostat housing, D 02.08.2010 and after	999	Next
11	WHT005190	O-ring 37,5X4X6	999	Next
11	032121665A	O-ring 37,5X4X6	999	Next
12	WHT000862	O-ring 29X3,5	999	Next
14	03H121113B	Coolant regulator	999	Next
15	WHT000863	O-ring 56,2X3	999	Next
16	03H121121C	Cover for thermostat, before 01.08.2010	999	Next
16	03H121121D	Cover for thermostat, D 02.08.2010 and after	999	Next
17	N90533005	Hexagon head bolt (combi), before 01.08.2010 M6X20	999	Next
17	N10611201	Oval head panel screw, D 02.08.2010 and after 6X22	999	Next
18	03H121133	Pipe union	999	Next
19	03H121142	Retaining spring	999	Next
20	32121142	Retaining spring	999	Next
21	N90316801	O-ring 19,6X3,65	999	Next
22	06A919501A	Coolant temperature sender 20MM	999	Next
23	03H121041	O-ring	999	Next
24	N91054101	Oval hexagon socket head bolt M6X25	999	Next
25	03H121131A	Water connection	999	Next
26	03H121041A	O-ring	999	Next
27	N90292903	Socket head bolt with hexagon socket head (combination) M8X25	999	Next
28	95323971	O-ring 7X2	999	Next
30	03H121145A	Water connection	999	Next
31	03H121041B	O-ring	999	Next
32	N91071701	Hexagon socket flat head bolt M6X25	999	Next

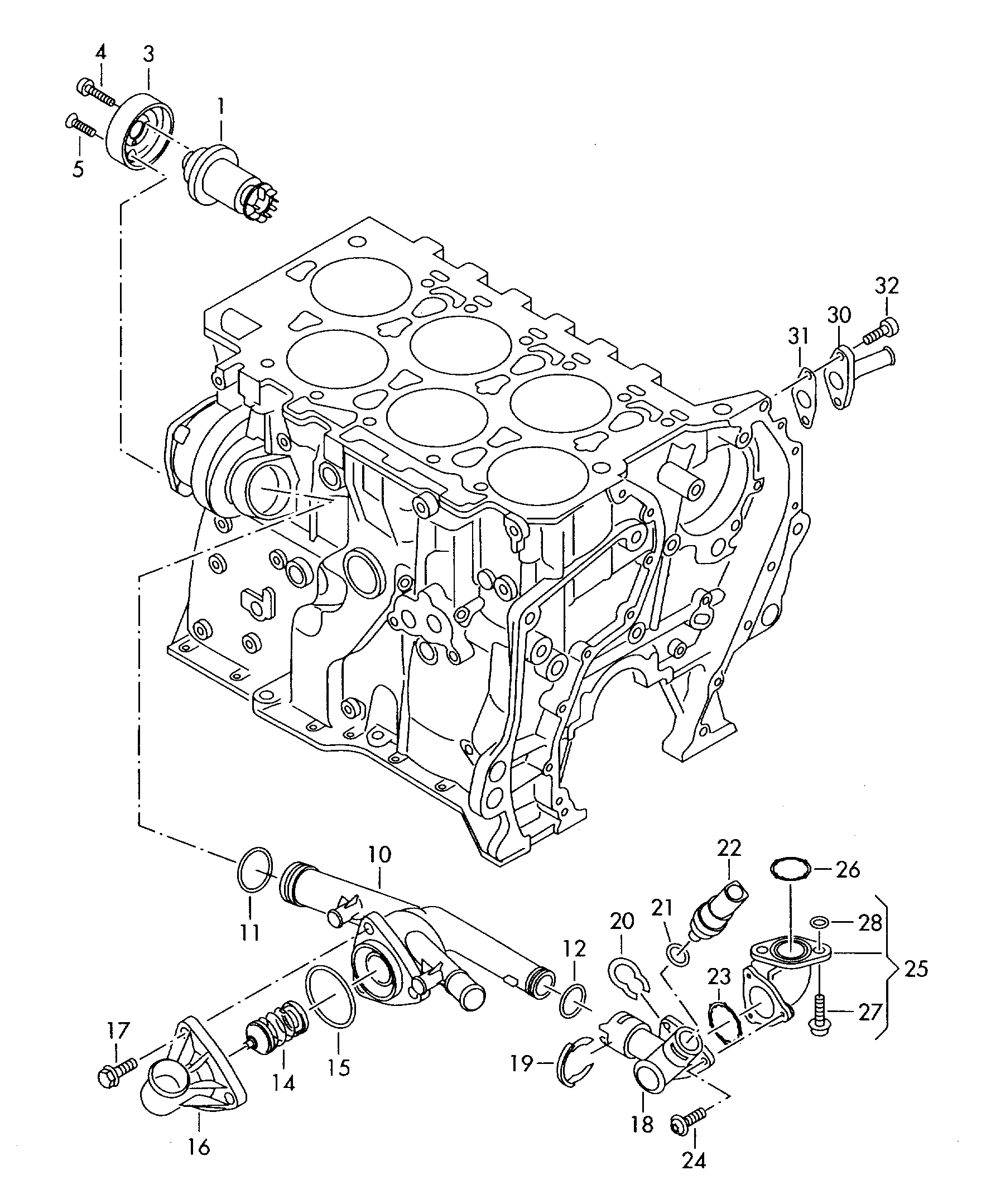

Scheme Coolant pump, coolant regulator 3.6ltr. 6-cylinder+, petrol eng.+, BWS, BLV, CNNA Volkswagen Passat CC Coupe 2009-2012 EUR
