Coolant pump, coolant cooling system 1.4ltr. petrol eng.+, CTHA, CTHD, CAVA, CAVD+, PR-G1A Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	03C121065F	Coolant pipe	999	Next
1	03C121665	O-ring	999	Next
1	03C121666	O-ring	999	Next
1	03C121142	Retaining spring	999	Next
1	03C121004J	Coolant pump with glued in sealing ring	999	Next
1	03C121004JX	Coolant pump with glued in sealing ring	999	Next
1		Not for this model	999	Next
1	N 91052201	Hexagon socket head bolt toothed belt pulley M8X12	999	Next
1	N 91096901	Round hd. screw (coolant p. > cylinder head) M6X22	999	Next
1	1K0121070CA	Coolant pipe	999	Next
1	1K0122291J	Quick acting coupling	999	Next
1	7N0122157AJ	Coolant hose	999	Next
1	1K0122291C	Quick acting coupling	999	Next
1	1K0122291R	Quick acting coupling for vehicles with auxiliary heater	999	Next
1	5N0122157AR	Coolant hose with quick release coupling for vehicles with auxiliary heater	999	Next
1	5N0121447H	Coolant hose	999	Next
1	5N0122447P	Coolant hose for vehicles with auxiliary heater	999	Next
1	1K0121070BB	Coolant pipe	999	Next
1	N 90925202	Hexagon socket head collared bolt, thread forming 6X16	999	Next
1	5N0121447J	Coolant hose	999	Next
1	5N0122447M	Coolant hose	999	Next
1	5N0122109D	Coolant hose (expansion tank > coolant pipe)	999	Next
1	7N0121093D	Hose bracket	999	Next
1	7N0121086	Coolant hose with coolant regulator	999	Next
1	5N0121093B	Hose bracket 25MM	999	Next
1	1K0121113A	Coolant regulator	999	Next
1	N 91096901	Round hd. screw M6X22	999	Next
1		Coolant regulator housing	999	Next
1		Reservoir	999	Next
1		Coolant hose	999	Next
1		Coolant hose	999	Next
1		Coolant hose	999	Next
1		Coolant hose	999	Next
1		Coolant pipe	999	Next
1		See illustration, item: 321-050,11	999	Next
1	N 90686701	Spring band clamp 14X12	999	Next
1	N 90770201	Spring band clamp 17X12	999	Next
1	N 90686902	Spring band clamp 23X12	999	Next
1	N 90687001	Spring band clamp 27X12	999	Next
1	N 90687201	Spring band clamp 40X12	999	Next

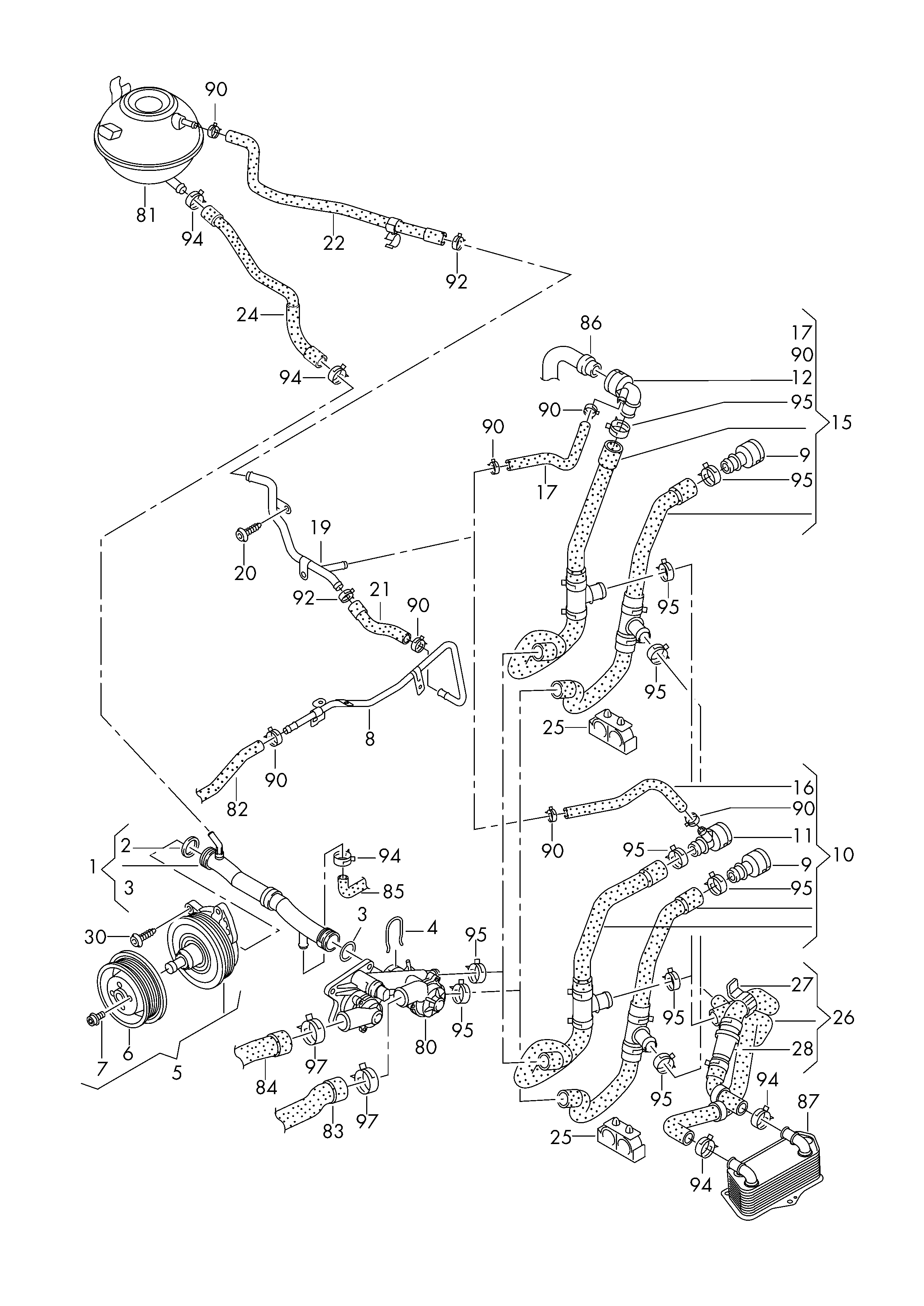

Scheme Coolant pump, coolant cooling system 1.4ltr. petrol eng.+, CTHA, CTHD, CAVA, CAVD+, PR-G1A Volkswagen Tiguan 2010-2017 EUR
