Coolant pump, coolant cooling system 1.4ltr. petrol eng.+, CAXA Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	03C121008B	Coolant pump with glued in sealing ring	999	Next
1	03C121008E	Coolant pump with glued in sealing ring	999	Next
1	03C121008EX	Coolant pump with glued in sealing ring	999	Next
1	03C121008HX	Coolant pump with glued in sealing ring	999	Next
1	03C121008BX	Coolant pump with glued in sealing ring	999	Next
2	03D121028B	V-belt pulley	999	Next
3	N91052201	Hexagon socket head bolt M8X12	999	Next
4	N91097201	Round hd. screw M6X35	999	Next
5	1K0122101HR	Coolant hose	999	Next
6	1K0122291AD	Quick acting coupling	999	Next
7	1K0122291BE	Quick acting coupling	999	Next
8	N90765301	O-ring 32X4	999	Next
9	1J0121142	Retaining spring 32MM	999	Next
10	N90316801	O-ring 19,6X3,65	999	Next
11	32121142	Retaining spring	999	Next
12	06A919501A	Coolant temperature sender	999	Next
14	N90692901	Connection piece 32X20X32	999	Next
15	1K0121101CQ	Coolant hose	999	Next
16	1K0121096BN	Coolant hose	999	Next
17	03C121437	O-ring only for: 15X1,8 03C 121 050 G	999	Next
17	N0282012	O-ring only for: 14X2,5 03C 121 050 P	999	Next
18	03C121050P	Coolant pipe	999	Next
18	03C121050G	Coolant pipe	999	Next
19	N90355405	Socket head bolt with inner multipoint head M7X14	999	Next
20	1K0121058BC	Coolant hose	999	Next
21	1K0122051HF	Coolant hose with quick release coupling	999	Next
22	3B0122291B	Quick acting coupling	999	Next
23	N91099101	Socket head bolt with inner multipoint head M6X20	999	Next
24	03C121469F	Coolant pipe	999	Next
25	WHT003366	O-ring 10X2,5	999	Next
26	03C121497F	Coolant pipe	999	Next
27	N10335207	Hexagon socket flat head bolt, self-locking M6X12	999	Next
28	1K0121063AA	Coolant hose	999	Next
30	03C121065B	Coolant pipe	999	Next
31	03C121666	O-ring	999	Next
32	03C121665	O-ring	999	Next
33	03C121142	Retaining spring	999	Next
34	1K0121070CD	Coolant pipe	999	Next
35	03C121070L	Coolant pipe	999	Next
37	1K0121101CS	Coolant hose with quick release coupling	999	Next
38	1K0121087P	Distributor	999	Next
39	1K0121101CK	Coolant hose	999	Next
40	1K0121447EB	Coolant hose	999	Next
76		Coolant hose	999	Next
77		Coolant hose	999	Next
78		Coolant hose	999	Next
79	N90817003	Hexagon socket head panel bolt 6X17	999	Next
80		Oil cooler	999	Next
81		Coolant regulator housing with thermostat	999	Next
82		Exhaust gas turbocharger	999	Next
83		Charge air cooler	999	Next
84		Cooler for coolant	999	Next
85		Cooler for coolant	999	Next
86		Coolant hose	999	Next
87		Coolant hose	999	Next
88		Coolant hose	999	Next
89		Coolant pipe	999	Next
90	N90686701	Spring band clamp 14X12	999	Next
91	N90926401	Spring band clamp 19X12	999	Next
92	N90686902	Spring band clamp 23X12	999	Next
93	N90687001	Spring band clamp 27X12	999	Next
95	N90687201	Spring band clamp 40X12	999	Next
97	N90770201	Spring band clamp 17X12	999	Next

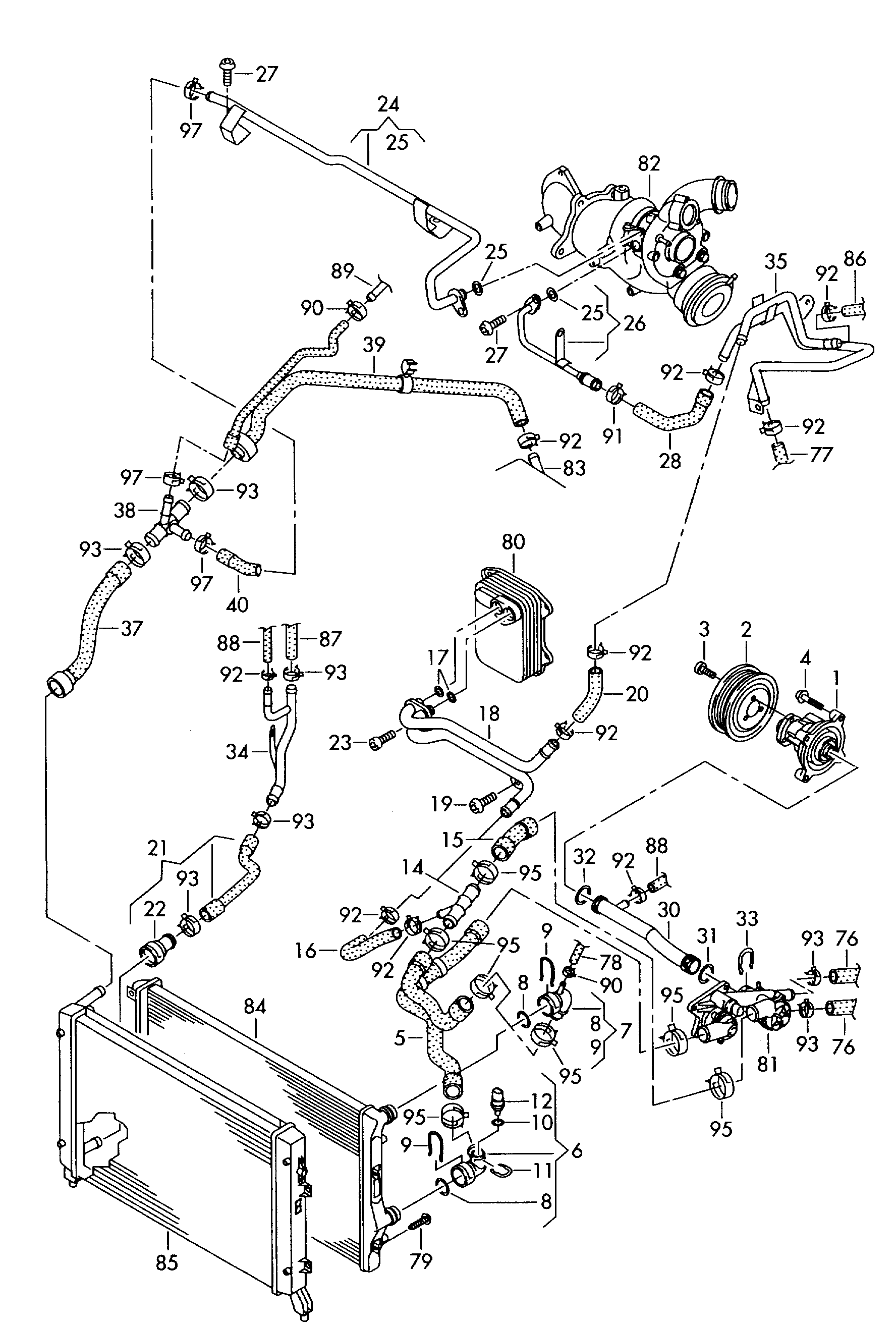

Scheme Coolant pump, coolant cooling system 1.4ltr. petrol eng.+, CAXA Volkswagen Golf Plus 2012-2014 EUR
