Coolant cooling system 3.6ltr. 6-cylinder+, petrol eng.+, BWS, BLV, CNNA Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	1K0122291AE	Quick acting coupling	999	Next
2	N90765301	O-ring 32X4	999	Next
3	06A919501A	Coolant temperature sender	999	Next
4	32121142	Retaining spring	999	Next
5	N90316801	O-ring 19,6X3,65	999	Next
6	3C0121051Q	Coolant hose	999	Next
7	N90692901	Connection piece 32X20X32	999	Next
10	3C0121049J	Coolant hose	999	Next
11	1J0121142	Retaining spring 32MM	999	Next
12	1J0121087B	Distributor	999	Next
14	3C0121101AE	Coolant hose	999	Next
15	3C0121447BB	Coolant hose	999	Next
18	3B0122291C	Quick acting coupling	999	Next
21	3C0121086M	Coolant hose	999	Next
22	1J0122351	Non-return valve	999	Next
23	1J0121093BB	Clip	999	Next
24	3C0121086N	Coolant hose	999	Next
25	3C0121096T	Coolant hose	999	Next
26	N90794401	T-piece 20X16X20	999	Next
27	1K0965561B	Additional coolant pump	999	Next
28	03H121079	Bracket for additional coolant pump	999	Next
29	N10124306	Oval hexagon socket head bolt M6X20	999	Next
30	N91096701	Oval hexagon socket head bolt M6X16	999	Next
31	3C0121063E	Coolant hose	999	Next
32	3C0121070AC	Coolant pipe	999	Next
33	3C0122096G	Coolant hose	999	Next
33	3C0122096F	Coolant hose	999	Next
34	3C0121058AA	Coolant hose	999	Next
34	3C0121058R	Coolant hose	999	Next
70		Coolant pipe	999	Next
71		Gear oil cooler	999	Next
72		Coolant pipe	999	Next
73		Thermostat housing	999	Next
74		Cooler for coolant	999	Next
80	N90686701	Spring band clamp 14X12	999	Next
81	N90926401	Spring band clamp 19X12	999	Next
82	N90686902	Spring band clamp 23X12	999	Next
82	N90686901	Spring band clamp 23X12	999	Next
83	N90687001	Spring band clamp 27X12	999	Next
85	N90687201	Spring band clamp 40X12	999	Next
86	N90926501	Spring band clamp 47X12	999	Next

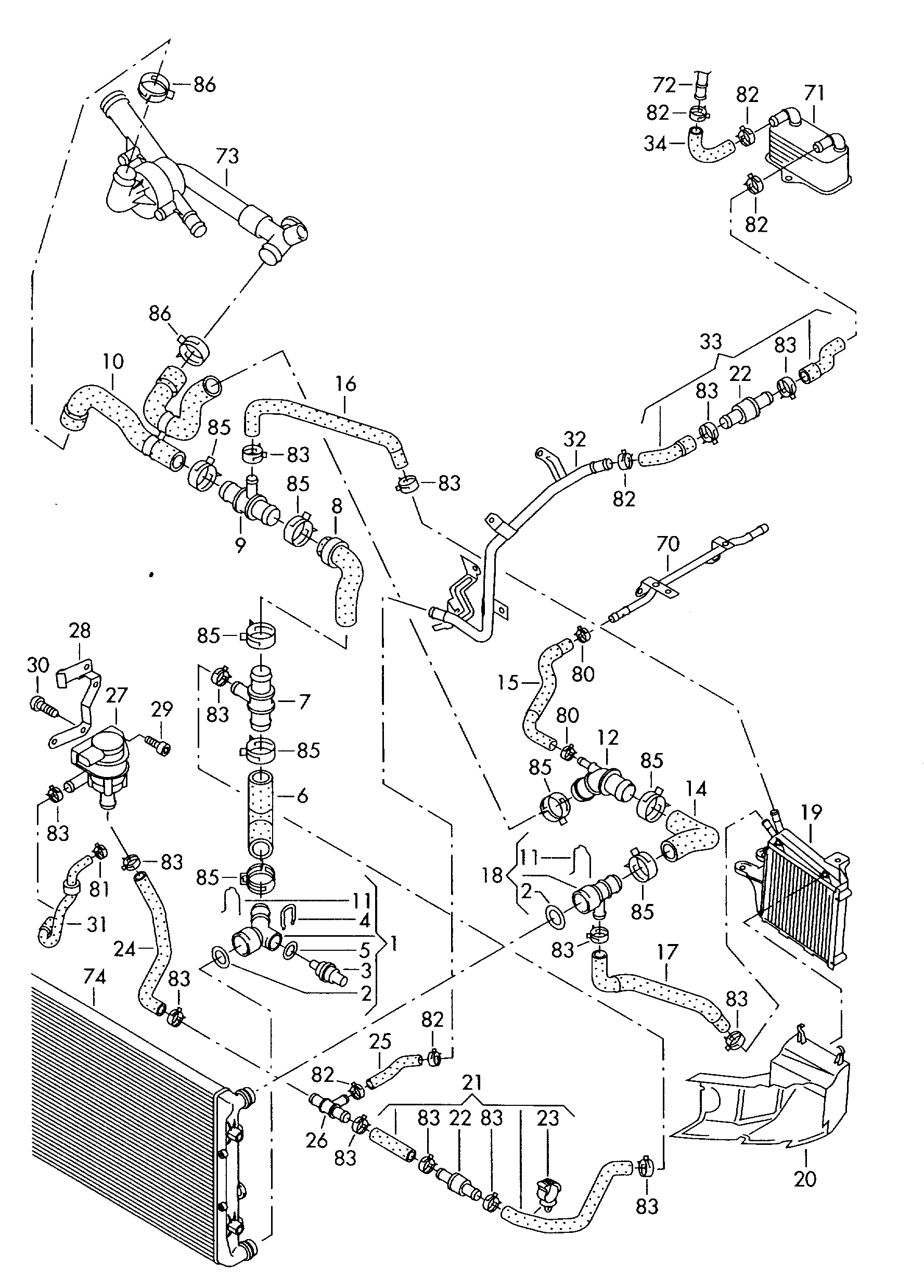

Scheme Coolant cooling system 3.6ltr. 6-cylinder+, petrol eng.+, BWS, BLV, CNNA Volkswagen Passat CC Coupe 2009-2012 EUR
