Coolant cooling system 2.0 ltr., rear diesel eng.+, CUVE, CUVC, CUWA Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	5Q0122073Q	Coolant hose with valve	999	Next
1	5Q0122073R	Coolant hose with valve	999	Next
1	5Q0122157CK	Coolant hose	999	Next
1	5N0122157BN	Coolant hose with quick release coupling	999	Next
1	5N0122157BQ	Coolant hose with quick release coupling	999	Next
1	5N0122073AC	Coolant hose with quick release coupling	999	Next
1	04L121065BH	Coolant pipe	999	Next
1	N 10156307	Hex collared bolt M6X12	999	Next
1	N 01508210	Hexagon collar nut M6	999	Next
1	5G0965567	Additional coolant pump BOSCH	999	Next
1	N 10698101	Socket head bolt with inner multipoint head (kombi) M10X25	999	Next
1	5Q0121093AH	Bracket for additional coolant pump BOSCH	999	Next
1	8J7871719	Retaining clip BOSCH	999	Next
1	5Q0965561B	Additional coolant pump PIERBURG	999	Next
1	5Q0121093AL	Bracket for additional coolant pump PIERBURG	999	Next
1	5N0198093	1 set attachment parts additional coolant pump PIERBURG	999	Next
1	5Q0122073H	Coolant hose	999	Next
1	5Q0122073BC	Coolant hose with valve	999	Next
1	04L121065AJ	Coolant pipe	999	Next
1	04L121119C	O-ring 16,5X2	999	Next
1	N 10285505	Socket head bolt with inner hex round head M6X12	999	Next
1	N 10781701	Double stud with hexagon drive M8X18/M8X10	999	Next
1		Coolant pipe	999	Next
1		Cooler for exhaust recuperation	999	Next
1		Breather line	999	Next
1	N 90686701	Spring band clamp 14X12	999	Next
1	N 90686701	Spring band clamp 14X12	999	Next
1	N 90687001	Spring band clamp 27X12	999	Next
1	N 90687101	Spring band clamp 32X12	999	Next

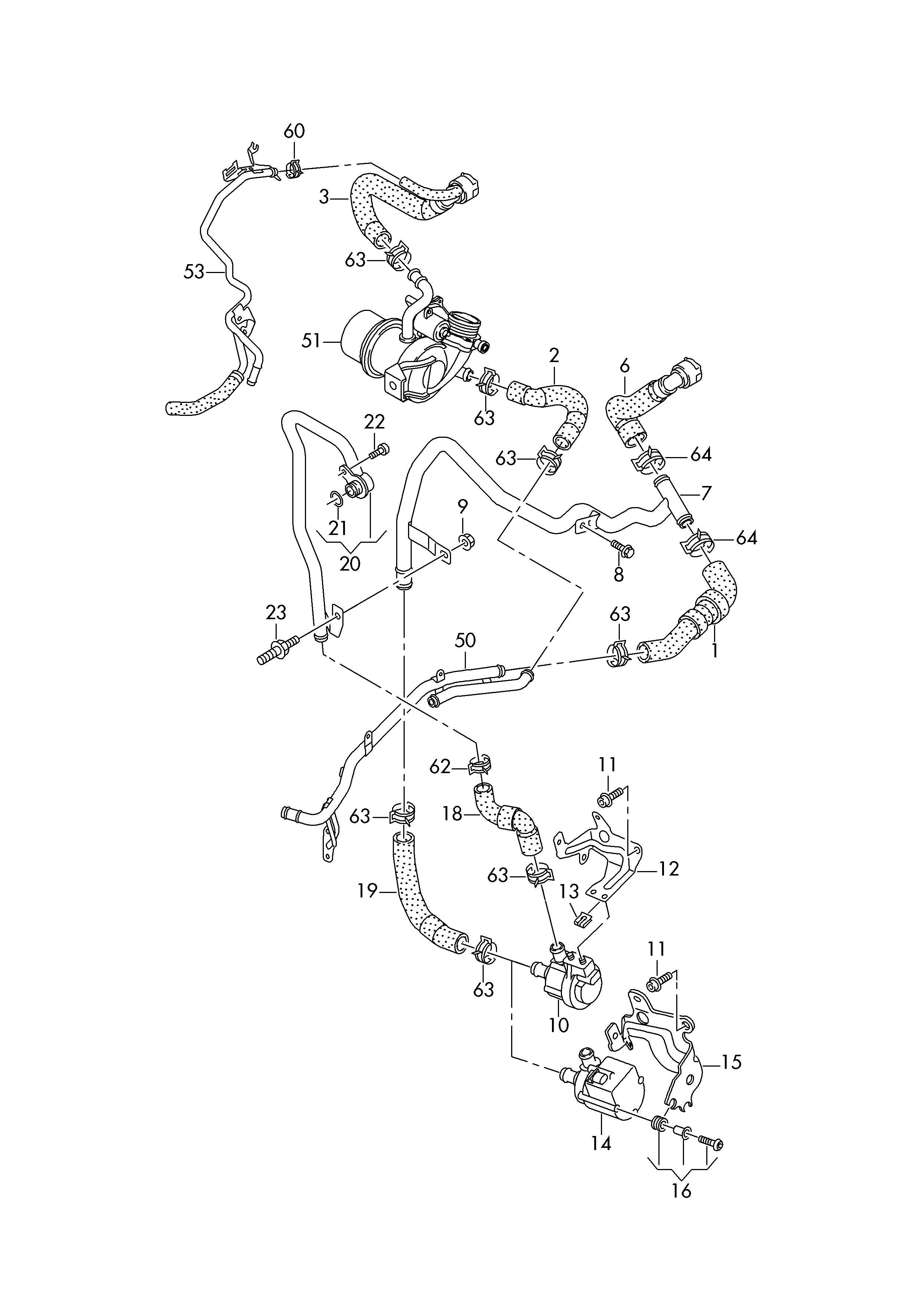

Scheme Coolant cooling system 2.0 ltr., rear diesel eng.+, CUVE, CUVC, CUWA Volkswagen Tiguan 2010-2017 EUR
