Coolant cooling system 2.0 ltr. petrol eng.+, CAWA, CAWB, CCTA, CCZB, CCZD, CCZC Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	5N0122291C	Quick acting coupling	999	Next
1	N 90765301	O-ring 32X4	999	Next
1	1J0121142	Retaining spring 32MM	999	Next
1	5N0121051F	Coolant hose with quick release coupling	999	Next
1	5N0121051M	Coolant hose with quick release coupling	999	Next
1	3C0121093	Hose bracket	999	Next
1	N 90693101	T-piece 32X32XT	999	Next
1	N 90316801	O-ring 19,6X3,65	999	Next
1	06A919501A	Coolant temperature sender	999	Next
1	32121142	Retaining spring	999	Next
1	5N0121051C	Coolant hose with quick release coupling	999	Next
1	5N0122291	Quick acting coupling	999	Next
1	5N0121101G	Coolant hose with quick release coupling	999	Next
1	5N0121093L	Hose bracket	999	Next
1	5N0121447K	Coolant hose	999	Next
1	06J121065F	Coolant pipe	999	Next
1	N 90365302	O-ring 20X3	999	Next
1	WHT006407	O-ring 20X3	999	Next
1	N 10405604	Oval hexagon socket head bolt M6X14	999	Next
1	1K0121070BD	Coolant pipe	999	Next
1	N 10611201	Oval head panel screw 6X22	999	Next
1	5N0121109B	Coolant hose	999	Next
1	5N0121109E	Coolant hose	999	Next
1	5N0121109C	Coolant hose	999	Next
1	5N0121109D	Coolant hose	999	Next
1	1K0965561J	Additional coolant pump	999	Next
1	1K0121093BH	Bracket additional coolant pump	999	Next
1	N 10524202	Hex socket head locating bolt M10X12	999	Next
1	N 10124408	Hexagon socket head bolt (combi) M6X20	999	Next
1	1K0121109AL	Coolant hose	999	Next
1	5N0122101AH	Coolant hose with quick release coupling for vehicles	999	Next
1	4A0820199	Double cable tie 7X213/140MM	999	Next
1	5N0122101AN	Coolant hose with quick release coupling for vehicles	999	Next
1	1K0121113A	Coolant regulator for vehicles	999	Next
1	N 90692901	Connection piece for vehicles	999	Next
1	N 10667101	Cable tie with hose retainer for cable: for vehicles	999	Next
1		Cooler for coolant	999	Next
1		Coolant pump and coolant regulator housing	999	Next
1		Coolant pipe	999	Next
1		Coolant hose	999	Next
1		Reservoir	999	Next
1		Coolant pipe	999	Next
1		Coolant hose for vehicles	999	Next
1		Gear oil cooler for vehicles	999	Next
1	N 90686701	Spring band clamp 14X12	999	Next
1	N 90686902	Spring band clamp 23X12	999	Next
1	N 90687001	Spring band clamp 27X12	999	Next
1	N 90687101	Spring band clamp 32X12	999	Next
1	N 90687201	Spring band clamp 40X12	999	Next

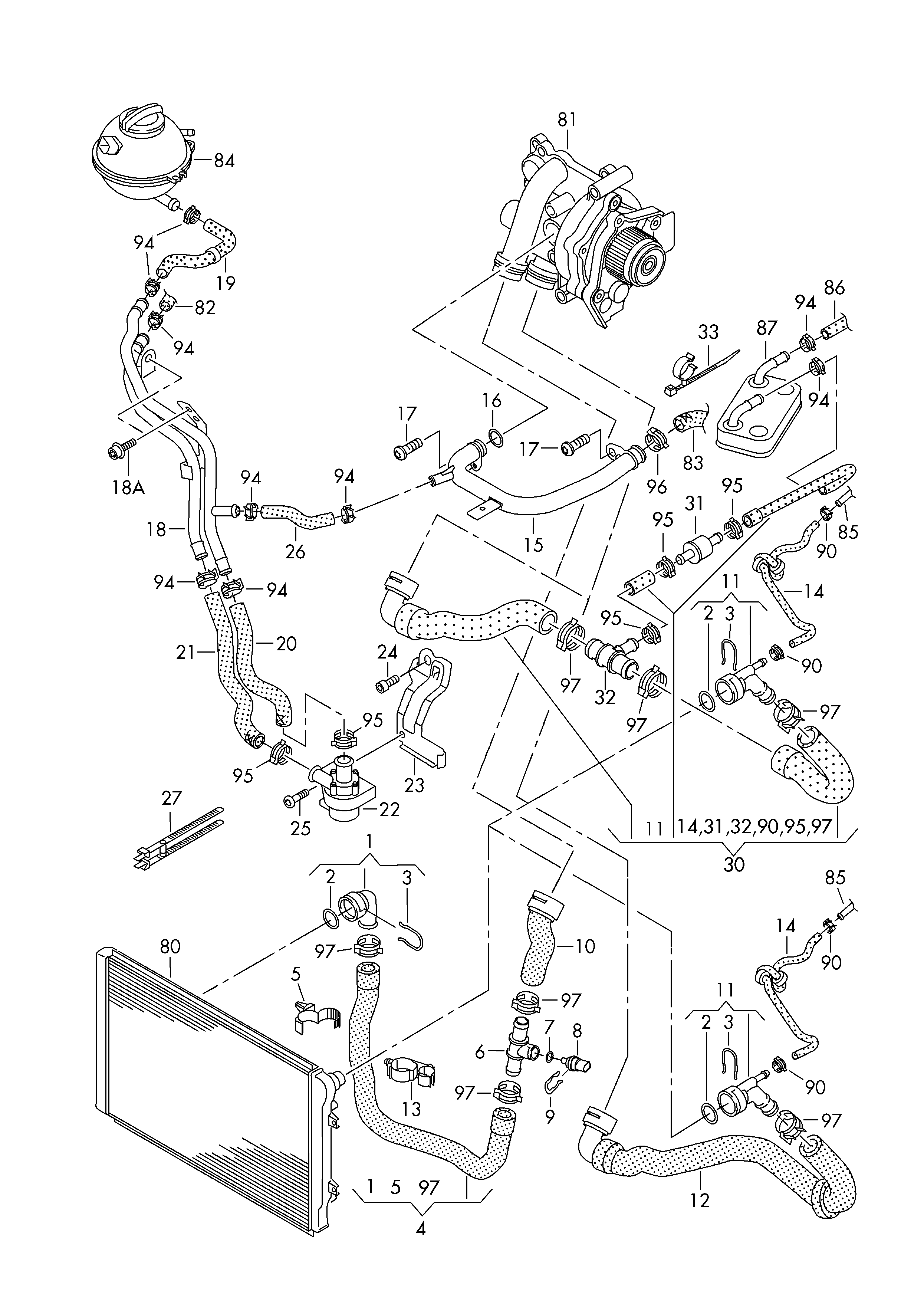

Scheme Coolant cooling system 2.0 ltr. petrol eng.+, CAWA, CAWB, CCTA, CCZB, CCZD, CCZC Volkswagen Tiguan 2010-2017 EUR
